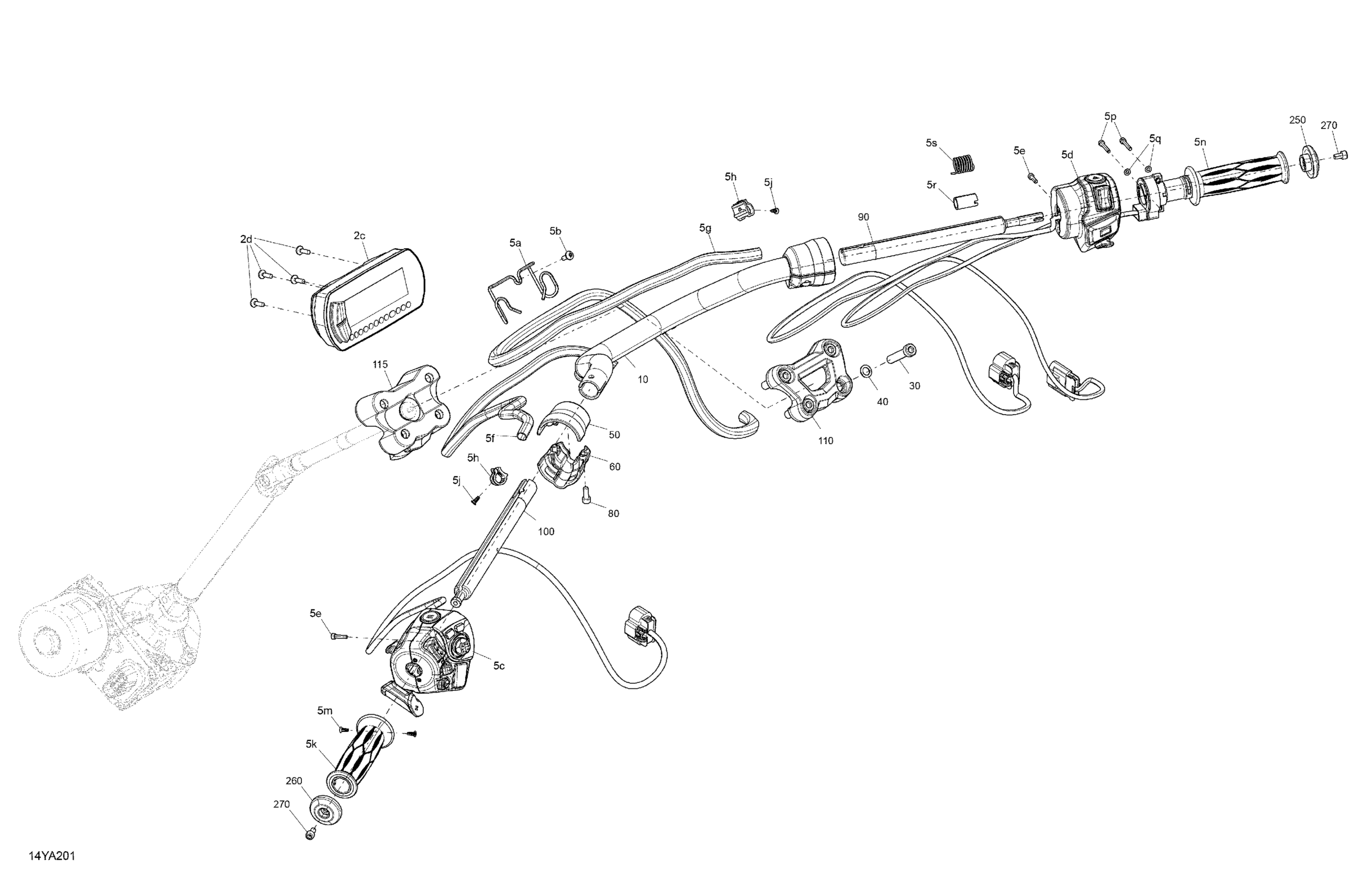

Can-Am F3 - Steel Black Metallic, 2021 Mechanic - Handlebar Diagram

#

Description
Price

2c

Multifunction Gauge

710005165

$224.99

2d

Torx Screw K50 X 16

250000720

$1.69

5a

Wiring Harness Support

709402446

$15.49

5b

Torx Screw M5 X 14

250000742

$1.47

5c

LH Multi-Function Switch

710008091

$509.99

5d

RH Switch Housing

710004582

$569.99

5e

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

5f

Braided Sleeve

710004231

$38.99

5g

Braided Sleeve

710004231

$38.99

5h

Wire Guide

709401804

$3.09

5j

Torx Cutting Screw, M4 X 10

250000453

$3.89

5k

Handle Grip

709401054

$86.99

5m

Torx Cutting Screw, M4 X 10

250000453

$3.89

5n

Throttle Handle Grip | RS

709401055

$249.99

5p

Socket Screw, M4 X 25

205042594

$2.11

5q

Flat Washer 4 mm

234040600

$0.55

5r

Bushing

709401801

$2.53

5s

Spring

709401937

$19.99

10

Carbon Black, Handle Bar Textured

709402241

$121.99

30

Thin Socket Screw, Scotch Grip, M10

250000997

$6.77

40

Stainless Flat Washer, 10 mm

250200105

$2.11

50

Carbon Black, Upper Clamp

709401914

$93.99

60

Carbon Black, Lower Clamp

709401916

$82.99

80

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

90

RH Handlebar Tube

709401939

$41.49

100

LH HandleBar Tube

709401952

$43.49

110

Black, Central Handle Clamp

709401904

$24.49

115

Black, Central Handle Support

709401906

$82.99

250

RH Handlebar End Piece

709402591

$24.99

260

LH Handlebar End Piece

709402592

$27.99

270

Screw-Socket Hd.Din.912

205061054

$1.90
