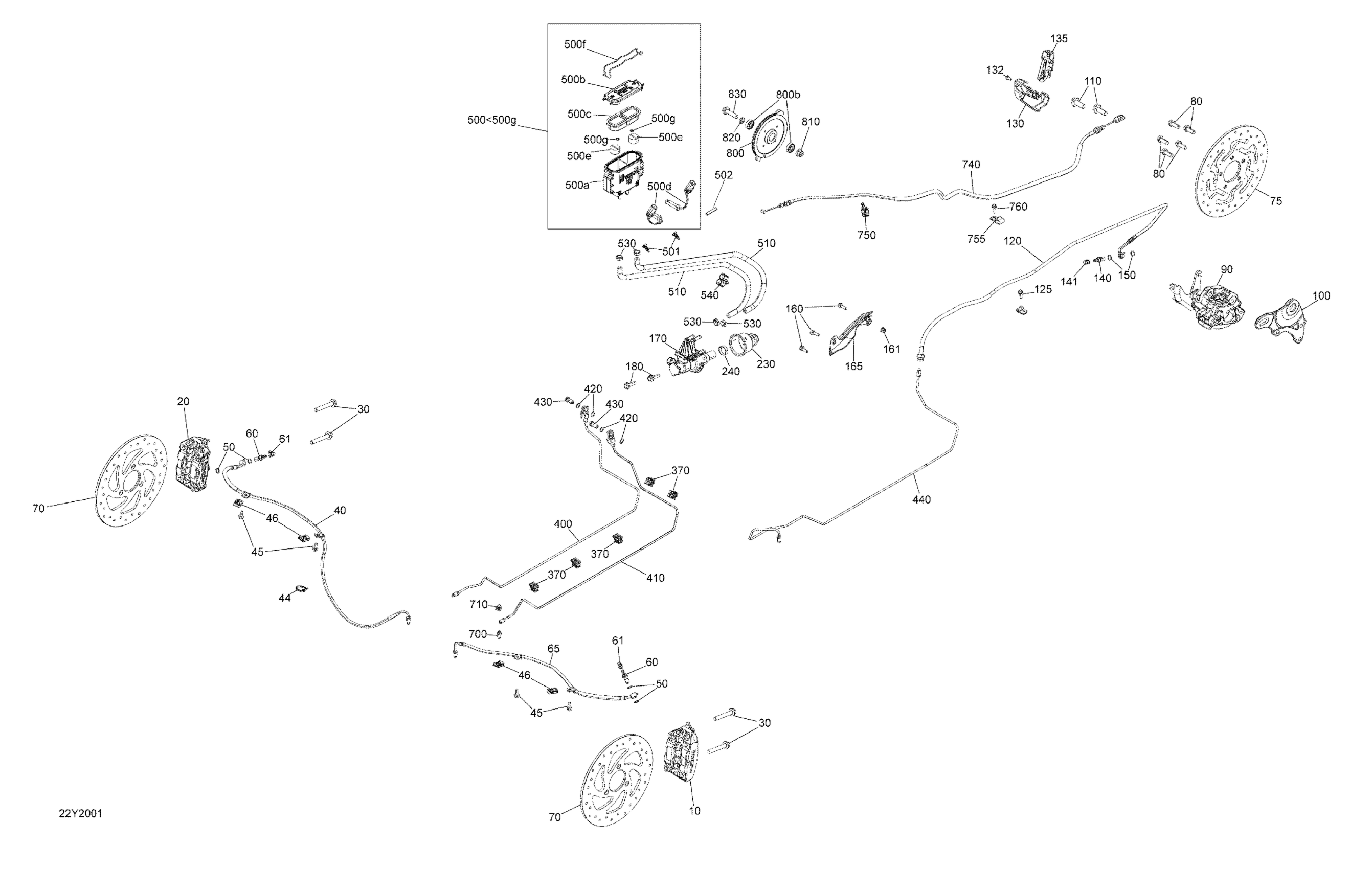

Can-Am F3 STD SE6, 2021 Hydraulic Brake Diagram

#

Description
Price

10

LH Front Caliper | Includes 10 to 10b

705600987

$381.00

20

RH Front Caliper | Includes 20 to 20b

705600988

$381.00

30

Hex Flange Screw M10 X 65

207506556

$7.00

40

RH Front Brake Hose Flexible | Includes 40 to 40a

705601672

$61.00

44

Tie Wrap 368 mm

293750008

$0.85

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

46

Panel Nut M6 X 1.0

250100208

$1.07

50

Washer

414920600

$1.52

60

Banjo Bolt/ Bleeder

705601201

$17.66

61

Bleeder Bolt Cap

705601190

$4.28

65

LH Front Brake Hose Flexible | Includes 65 to 65a

705601673

$61.00

70

Front Brake Disk

705601631

$154.00

75

Rear Brake Disk

705601632

$245.00

80

Hex. Flange Screw M10 X 25

250001054

$12.48

90

Rear Caliper | Includes 90 to 90d

705600989

$498.00

100

Rear Brake Caliper Support

705601746

$57.00

100

Support Brake Caliper Rear

705601747

$57.00

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

120

Flexible Brake Line Rear | Includes 120 to 120a

705601674

$75.00

120

Flexible Brake Line Rear | Includes 120 to 120a

705601675

$75.00

125

Hex. Flange Screw M6 X 20

207662054

$0.83

130

Caliper Trim Cap

705601400

$10.00

132

Torx Screw 24 X 0.5

250000821

$2.00

135

Caliper Trim Cap

705601406

$10.00

140

Banjo Bolt/ Bleeder

705601201

$17.66

141

Bleeder Bolt Cap

705601190

$4.28

150

Washer

414920600

$1.52

160

Hex. Flange Screw M6 X 20

207662054

$0.83

161

Hex. Flange Elastic Nut M6

233261494

$1.26

165

Cable Guide

706202587

$12.00

170

Tandem Cylinder Master

705600722

$370.00

180

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

230

Bellow

705600716

$12.00

240

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

370

Anchorage Tube

705601987

$5.00

400

Tandem Rigid Tube | Includes 400 to 400a

705601157

$32.00

410

Tandem Rigid Tube | Includes 410 to 410a

705601158

$32.00

420

Washer

414920600

$1.52

430

Banjo Bolt

507032551

$5.52

440

Rear Brake Rigid Tube

705601159

$32.00

500<500g

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

500a

Not Available As Spare Part - Friction Washer

Unavailable

500b

Diaphragm Cover Ass'y

219800350

$17.66

500c

Not Available As Spare Part - Friction Washer

Unavailable

500d

Oil Level Sensor

705601073

$50.74

500e

Not Available As Spare Part - Friction Washer

Unavailable

500f

Spindle Lock

705601294

$14.37

500g

Push Nut | Not shown

211100002

$0.83

501

Connector Holder

710002033

$3.22

502

Hose 4.32Mm 3000Mm Long

219704415

$44.17

510

Formed Hose

705601236

$17.00

530

Crimp Clamp, 15.3-706R

293650047

$2.64

540

Hose Support

709000571

$4.60

700

Bleeder Screw

705600502

$11.06

710

Bleeder Bolt Cap

705601190

$4.28

740

Parking Brake Cable

707001375

$67.00

740

Parking Brake Cable

707001856

$67.00

750

Harness Support

709000633

$7.00

755

Open Clamp

515175507

$1.47

760

Hexagonal Head Screw

210262050

$1.74

800<800b

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

800b

Bearing

705600458

$7.03

810

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

820

Bushing

293900087

$7.60

830

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.00
