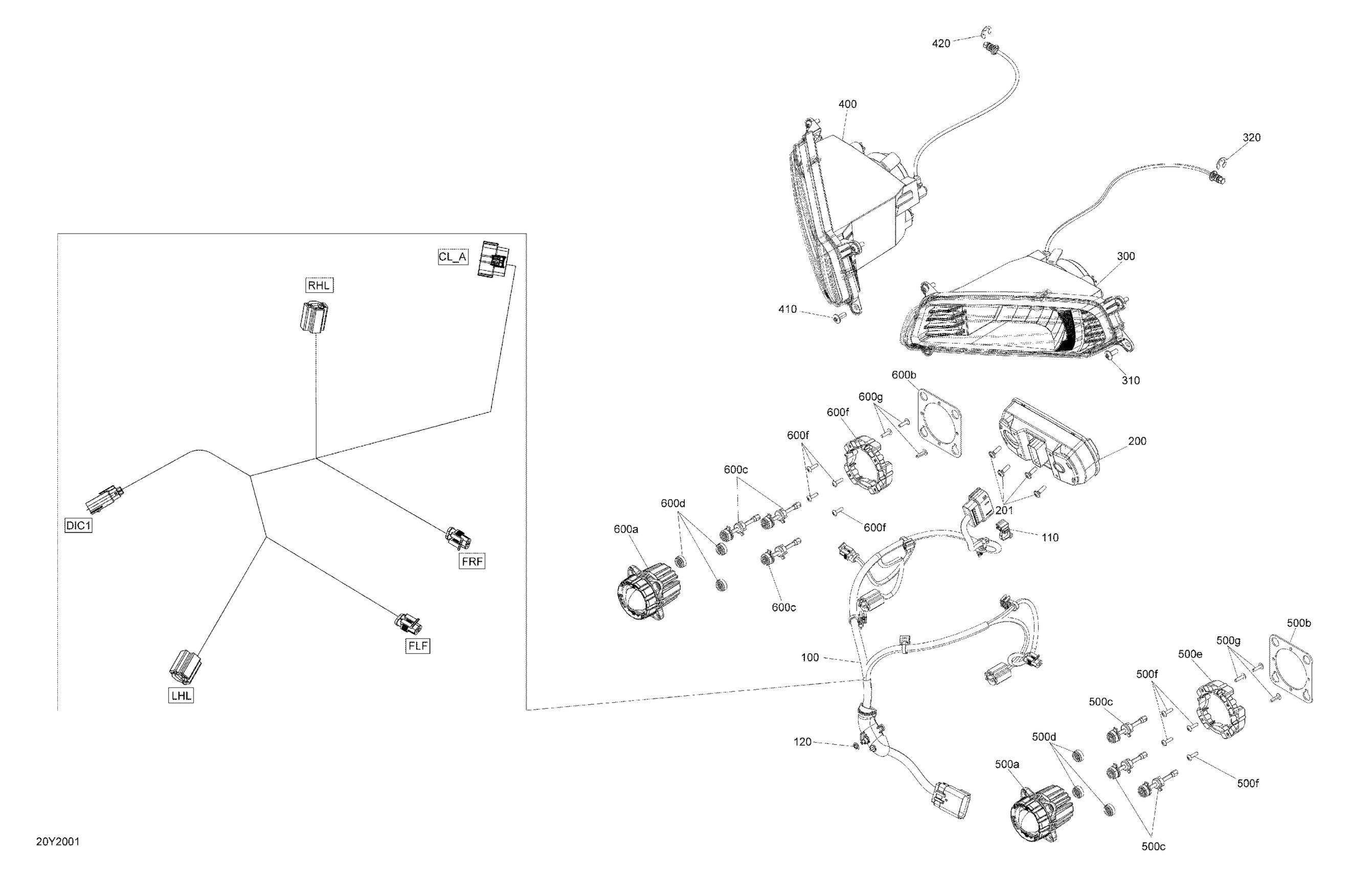

Can-Am F3 STD SE6, 2020 Electrical System Console Diagram

#

Description
Price

100

Harness Console

710005454

$76.99

100

Harness

710008434

$93.99

CL_A

Female Housing 20 Circuits

278002858

$22.49

CL_A

Sealing Cap

278002860

$1.79

DIC1

Sealing Cap

278002860

$1.79

DIC1

Male Terminal

515178013

$3.19

DIC1

Connector Molex Mx150 16 Pos

710005976

$12.16

FLF

Female Housing, 2 Circuits

409209500

$15.27

FLF

Wire Seal

515176621

$7.49

FLF

Female Terminal

710001340

$5.89

FRF

Female Housing, 2 Circuits

409209500

$15.27

FRF

Wire Seal

515176621

$7.49

FRF

Female Terminal

710001340

$5.89

LHL

Female Housing

515176908

$13.99

LHL

Terminal

515176909

$2.21

RHL

Female Housing

515176908

$13.99

RHL

Terminal

515176909

$2.21

110

Clip Tie-Rap

293750063

$8.75

120

Push Nut

250100034

$1.29

200

Multifunction Gauge

710005165

$224.99

201

Torx Screw K50 X 16

250000720

$1.69

300

LH Headlight | Includes 0b to 0b3

710006997

$239.99

310

Torx Truss Screw M6 X 16

250000721

$1.69

320

E-Circlip

293370013

$0.65

400

RH Headlight | Includes 0d to 0d3

710006998

$239.99

410

Torx Truss Screw M6 X 16

250000721

$1.69

420

E-Circlip

293370013

$0.65

500a

Low Beam Ass'y

710006007

$349.99

500b

Headlight Support

710007188

$15.49

500c

Adjustment Screw

710007200

$10.27

500d

Clip

293730095

$1.68

500e

Adapter

710007189

$3.59

500f

Torx-Truss Pt K40 X 16

250000759

$2.11

500g

Torx-Truss Pt K40 X 16

250000759

$2.11

600a

Low Beam Ass'y

710006007

$349.99

600b

Headlight Support

710007188

$15.49

600c

Adjustment Screw

710007200

$10.27

600d

Clip

293730095

$1.68

600e

Adapter

710007189

$3.59

600f

Torx-Truss Pt K40 X 16

250000759

$2.11

600g

Torx-Truss Pt K40 X 16

250000759

$2.11
