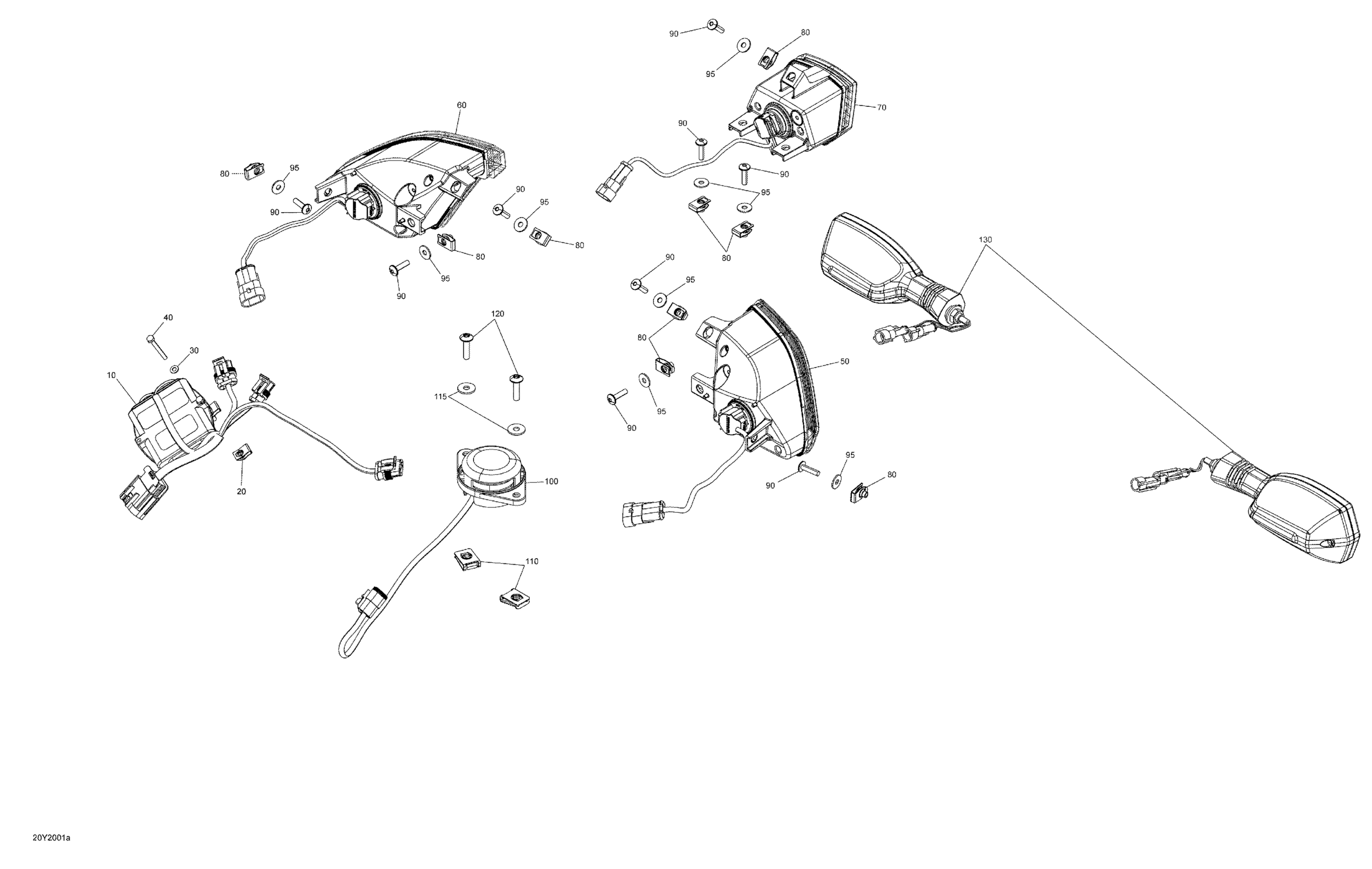

Can-Am F3 STD SE6, 2020 Electrical System Cargo Diagram

#

Description
Price

10

Rear Box Wiring Harness

710007697

$194.99

10

Harness Cargo Rear

710006434

$179.99

20

Extruded Panel Nut M4 X 0.7

250100143

$8.49

30

Flat Washer 4 mm, Stainless

234041600

$1.15

40

Hex. Screw M4 X 40

207144060

$4.44

50

LH Tail Light | Includes 0h to 0h1

710007001

$58.49

60

RH Tail Light | Includes 0j to 0j1

710007003

$61.49

70

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

80

Panel Nut M5 X 0.8

250000958

$4.23

90

Torx Truss Screw M5 X 20

250000715

$2.11

95

Stainless Steel Flat Washer M5

234052670

$1.01

100

Passenger Detection Switch

710008103

$76.99

110

Panel Nut M6 X 1.0

250100208

$1.46

115

Stainless Steel Flat Washer

234062670

$2.11

120

Torx Truss Screw M6 X 25

250000807

$2.11

130

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.49
