Description

Price

710

Hex Screw Washer Head M8 X 20

207582054

$3.17

1100

LH Deflector

705007794

$43.99

1200

RH Deflector

705007795

$43.99

1300

LH Shell

705009027

$43.99

1310

Torx Truss M5 X 20

250000586

$4.44

1320

Tuflock Phillips Plastic Screw

414745900

$1.69

1400

RH Shell

705009029

$43.99

1410

Torx Truss M5 X 20

250000586

$4.44

1420

Tuflock Phillips Plastic Screw

414745900

$1.69

1500a

LH Acoustic Fairing

705009144

$45.99

1500b

Acoustic Foam

705009344

$8.49

1500c

Acoustic Foam

705009162

$14.49

1500d

Rubber Stopper

708000759

$4.19

1500e

LH Engine Fairing

705007780

$45.99

1500f

Screw M4 X 16

250000725

$3.49

1510

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

1515

Stainless Flat Washer M6

234061600

$0.33

1520

Dart, Fastex

293730024

$1.39

1600

RH Engine Fairing

705007781

$45.99

1610

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

1615

Stainless Flat Washer M6

234061600

$0.33

1700a

Deep Black, LH Front Fender

705013327

$309.99

1700b

LH Inner Fender

705012975

$54.99

1700c

Plastite Screw M4 X 10

250000805

$2.11

1700d

LH Front Fender Support Ass'y

705013519

$88.99

1700e

Plastite Screw M4 X 10

250000805

$2.11

1700f

LH Light Protector

705013499

$2.39

1700g

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

1700i

LH Front Position Light

710007008

$119.99

1700j

Yellow, LH Reflector

705012404

$18.49

1700k

Red, Rear Reflector

705014736

$5.39

1700l

Plug

293720120

Unavailable

1800a

Deep Black, RH Front Fender

705013565

$309.99

1800b

RH Inner Fender

705012867

$55.99

1800c

Plastite Screw M4 X 10

250000805

$2.11

1800d

RH Front Fender Support Ass'y

705012981

$88.99

1800e

Plastite Screw M4 X 10

250000805

$2.11

1800f

RH Light Protector

705013530

$2.39

1800g

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

1800h

RH Front Position Light

710007009

$119.99

1800i

Yellow, RH Reflector

705012405

$18.49

1800j

Red, Rear Reflector

705014736

$5.39

1800k

Plug

293720120

Unavailable

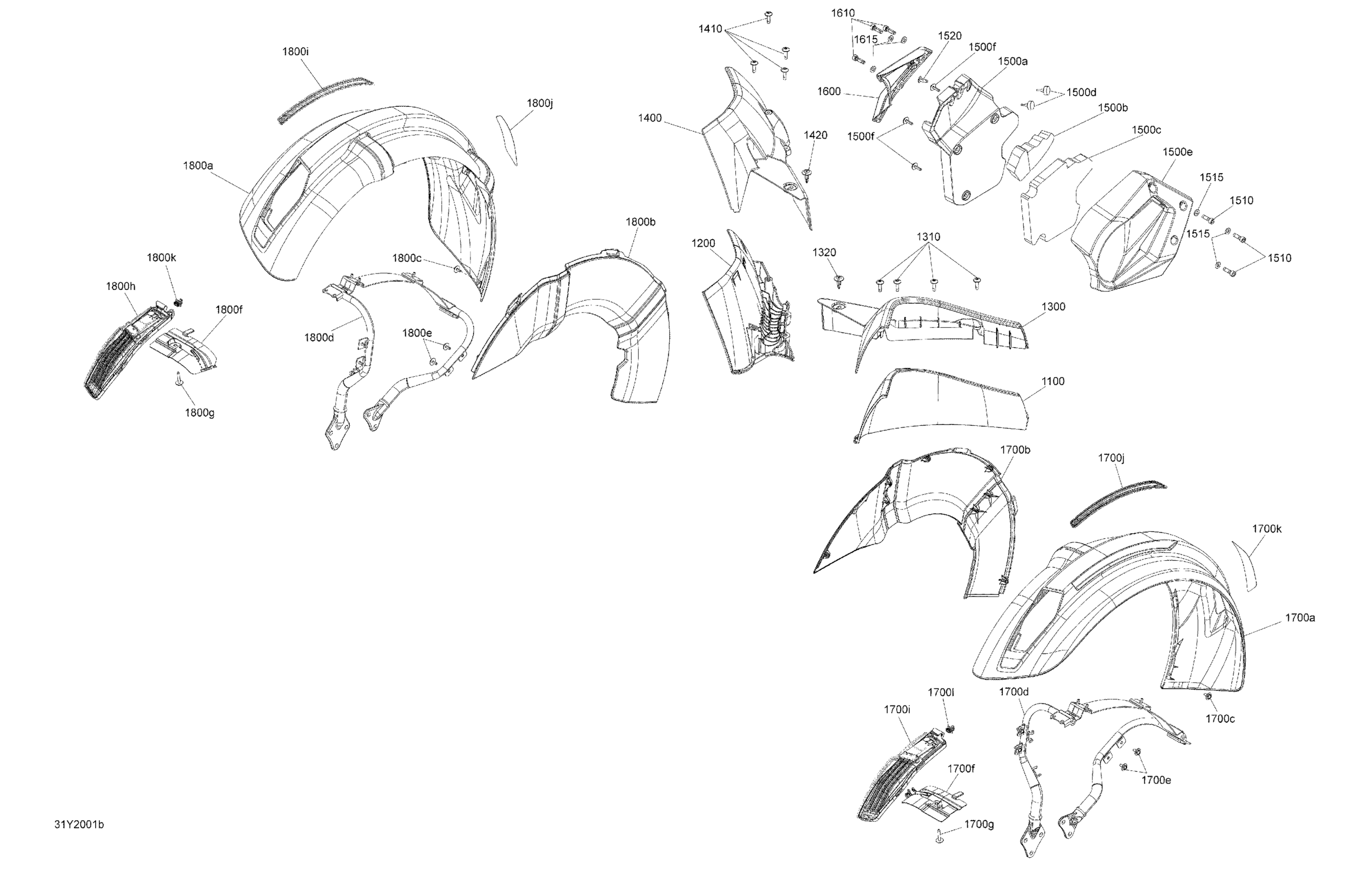

Can-Am F3 STD SE6, 2020 Body And Accessories Front Fenders Diagram

Hex Screw Washer Head M8 X 20

LH Deflector

RH Deflector

LH Shell

Torx Truss M5 X 20

Tuflock Phillips Plastic Screw

RH Shell

Torx Truss M5 X 20

Tuflock Phillips Plastic Screw

LH Acoustic Fairing

Acoustic Foam

Acoustic Foam

Rubber Stopper

LH Engine Fairing

Screw M4 X 16

Socket Head Screw M6 X 20, Scotch Grip

Stainless Flat Washer M6

Dart, Fastex

RH Engine Fairing

Socket Head Screw M6 X 20, Scotch Grip

Stainless Flat Washer M6

Deep Black, LH Front Fender

LH Inner Fender

Plastite Screw M4 X 10

LH Front Fender Support Ass'y

Plastite Screw M4 X 10

LH Light Protector

Plastite Screw Type K-40, M4 X 25

LH Front Position Light

Yellow, LH Reflector

Red, Rear Reflector

Plug

Deep Black, RH Front Fender

RH Inner Fender

Plastite Screw M4 X 10

RH Front Fender Support Ass'y

Plastite Screw M4 X 10

RH Light Protector

Plastite Screw Type K-40, M4 X 25

RH Front Position Light

Yellow, RH Reflector

Red, Rear Reflector

Plug
