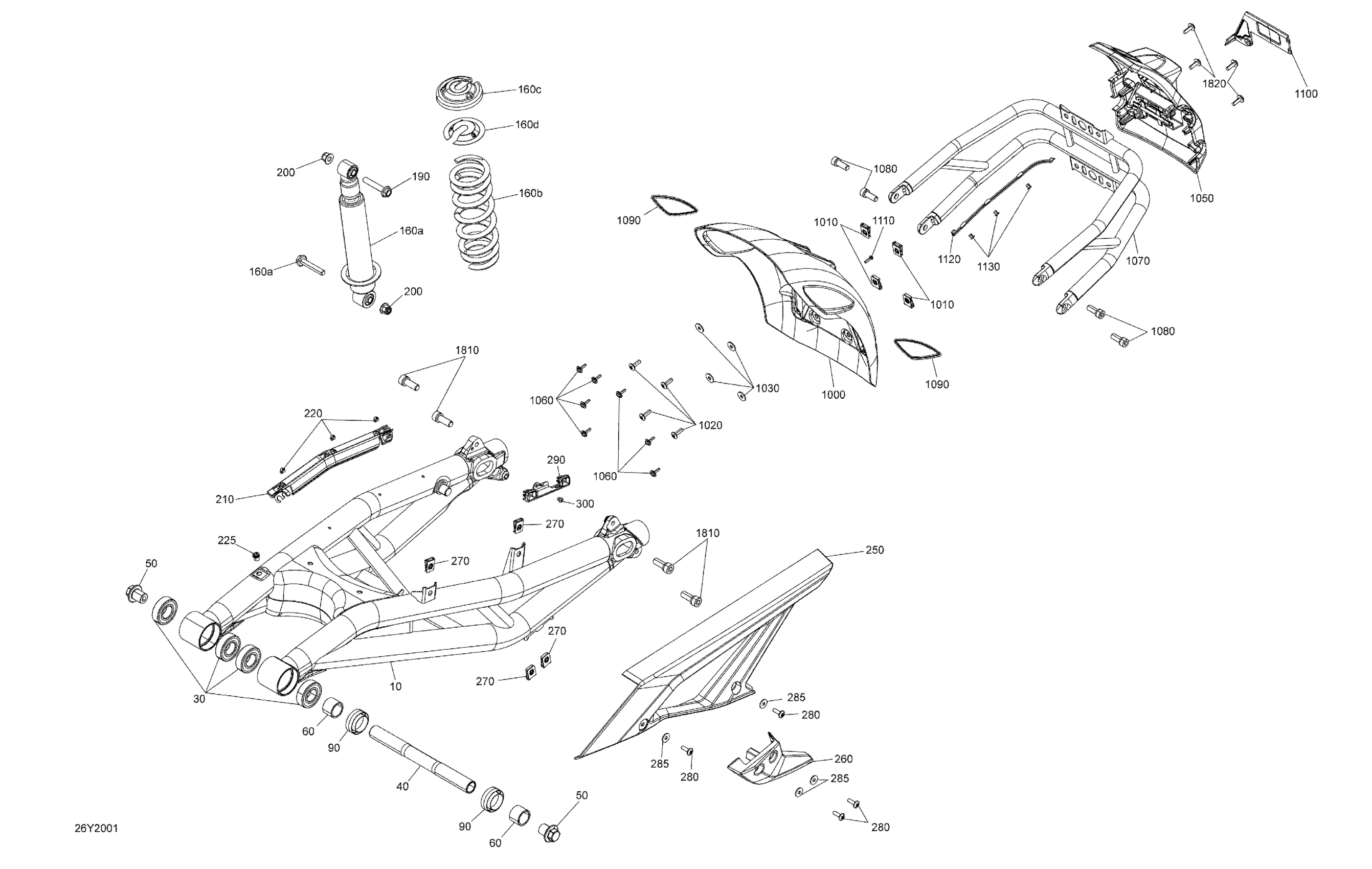

Can-Am F3 STD SE6, 2020 Suspension, Rear Diagram

#

Description
Price

10

Black, Swingarm

706002313

$466.00

30

Ball Bearing

293350115

$11.15

40

Swing Arm Axle

706001182

$94.00

50

Bolt M20

706001579

$17.00

60

Spacer

706001152

$9.00

90

Sleeve

706001366

$1.00

160a

Shock

706001703

$137.00

160b

Spring

706002113

$83.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

190

Hex. Flange Screw M10 X 55

207605554

$8.00

200

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

210

Cable Cap

706202131

$12.00

220

Rivet 3/16"

293150102

$0.71

225

Insert

293450275

$9.89

250

Upper Belt Guard

705010380

$54.00

260

Lower Belt Guard

705008756

$46.00

270

Panel Nut M6 X 1.0

250100208

$1.07

280

Torx Truss Screw M6 X 20

250000350

$4.39

285

Stainless Steel Flat Washer

234062670

$1.74

290

Cable Cap

706202264

$5.00

300

Rivet 3/16"

293150102

$0.71

1000

Rear Fender

705011661

$205.00

1010

Panel Nut M6 X 1.0

250100208

$1.07

1020

Torx Truss Screw M6 X 20

250000705

$1.74

1030

Flat Washer

250200082

$0.35

1050

Rear Fender Moulding

705008241

$205.00

1050

Rear Fender Moulding

705009197

$205.00

1060

Screw M4 X 16

250000725

$2.87

1070

Carbon Black Rear Fender Support

705008249

$215.00

1080

Allen Screw S.GRIP M10 X 25

205502560

$7.00

1090

Amber, Lateral Reflector

705002423

$13.28

1090

Red, Lateral Reflector

705003412

$13.28

1100

Cover Moulding

705008990

$11.00

1110

Flange Torx Screw K40 X 16

250000287

$1.74

1120

Cable Cap

706202219

$7.00

1130

Rivet 3/16"

293150102

$0.71

1810

Allen Screw S.GRIP M10 X 25

205502560

$7.00

1820

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
