Description

Price

10

Carbon Black, Handle Bar Textured

709402241

$122.00

30

Thin Socket Screw, Scotch Grip, M10

250000997

$7.00

40

Stainless Flat Washer, 10 mm

250200105

$1.74

50

Carbon Black, Upper Clamp

709401914

$94.00

60

Carbon Black, Lower Clamp

709401916

$83.00

80

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

90

RH Handlebar Tube

709401939

$41.00

100

LH HandleBar Tube

709401952

$43.00

110

Black, Central Handle Clamp

709401904

$24.00

115

Black, Central Handle Support

709401906

$83.00

120

Steering Column

709402421

$155.00

130<130b

Support Ass'y | Included 130 to 130b

709401340

$110.00

130b

Steering Bushing

709402725

$3.17

150

O-Ring

709000089

$15.35

160

Upper Steering Column

709401397

$160.00

170

Bellows

709400790

$13.00

180

Tie-Rap 180 mm

414115200

$0.09

250

Handlebar End-Piece RH

709402578

$28.00

260

Handlebar End-Piece LH

709402579

$28.00

505

DPS Support

709401771

$44.00

507

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

510

Power Steering Ass'y

709402730

$1,791.00

520

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

530

Pitman Arm

709401760

$38.00

590

Tie Rod Ass'y

709401820

$159.00

600

Hardened Washer

706200281

$2.34

610

RH Knuckle Assembly

709402236

$190.00

620

LH Knuckle Assembly

709402233

$196.00

630

Hex. Elastic Hex. Nut M12

250100089

$0.39

670

Hex. Flange Screw M8 X 35

250001021

$3.61

675

Hex. Flange Screw M8 X 45, Scotch Grip | Man. Date Aug 1rst 2016 And Up

207584587

$4.00

680

Hex. Nut M8

232081417

$3.00

681

Washer

503189157

$3.20

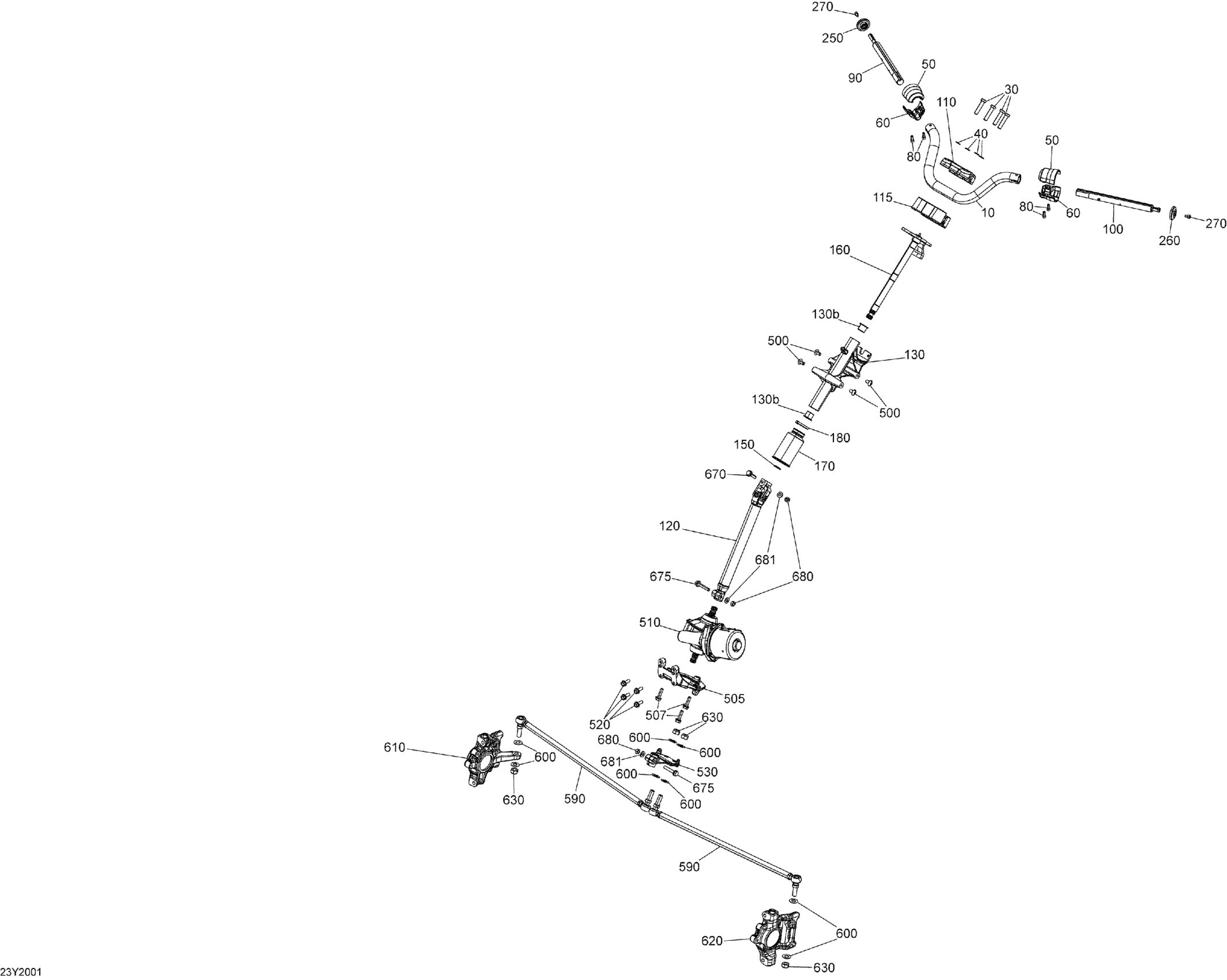

Can-Am F3 STD SE6, 2020 Steering Diagram
