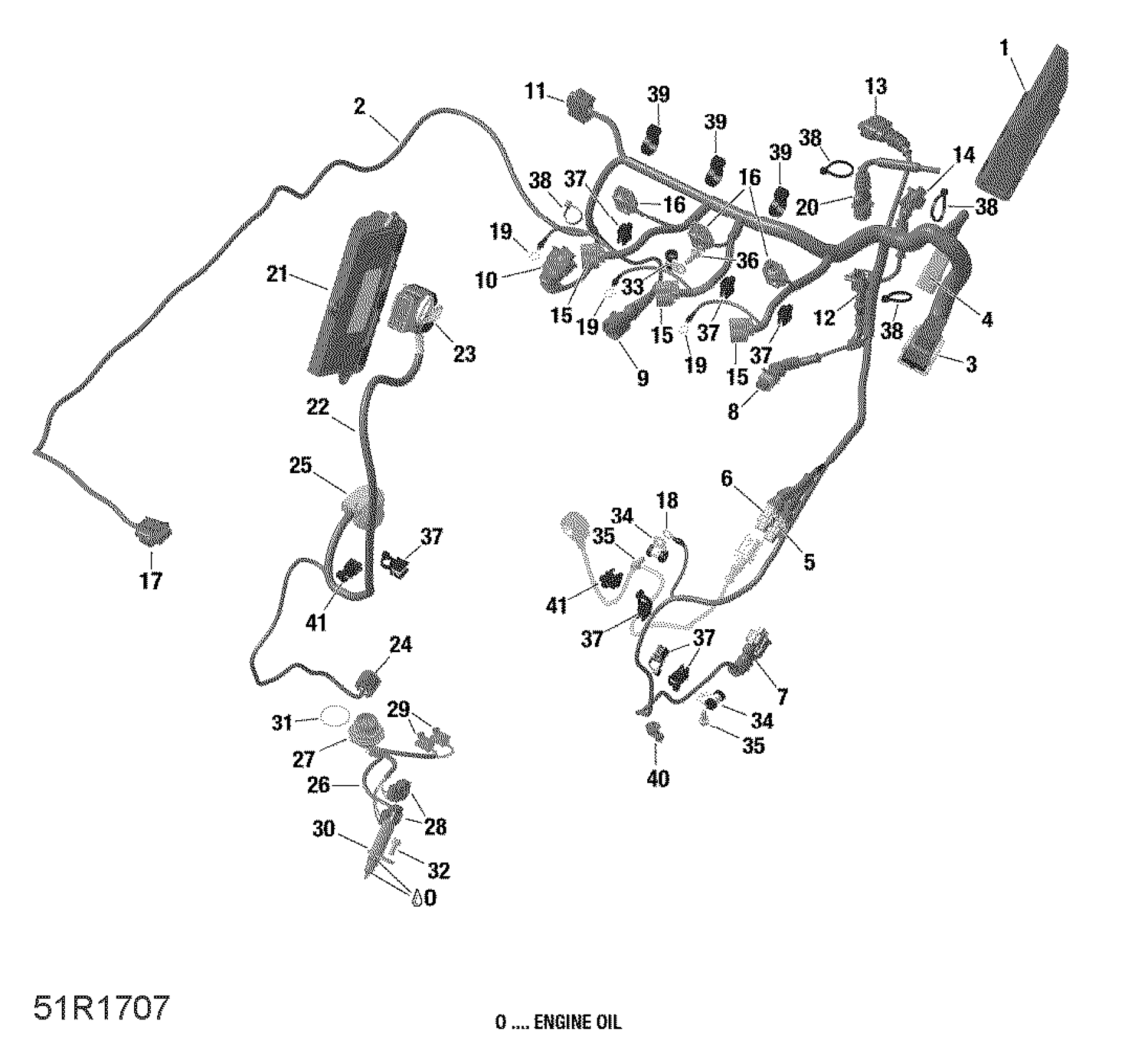

Can-Am F3 STD SE6, 2019 Engine Harness and Electronic Module - SE6 Diagram

#

Description
Price

1

Electronic Module Programmable

420666064

$691.57

1

Electronic Module Programmable

420666064

$691.57

2>20

Engine Wiring Harness - OTS Oil Temperature Sensor | Includes 2 to 19

420266786

$440.00

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Connector CSV

420666780

$32.00

21

Transmission Module | Rear Sprocket 89th

420266879

$720.00

21

Transmission Module | Rear Sprocket 79th

420666756

$710.00

22>25

Wiring Harness

420266885

$270.00

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26>31

Wiring Harness

420264104

$500.00

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

O-Ring

420450481

$5.00

32

Hex. Flange Screw M6 X 12

420440147

$1.97

33

Open Clamp

414176000

$1.86

34

Clamp

420853414

$14.92

35

Hex. Flange Screw M6 X 12

420440147

$1.97

36

Torx Flange Screw M6 X 16

420641588

$1.74

37

Cable Clamp 150mm

420951650

$3.55

38

Tie Rap

420866714

$1.56

39

Tie-Rap

420866716

$1.56

40

Tie-Rap With Mount

420951341

$6.26

41

Tie-Rap With Mount

420651810

$5.92
