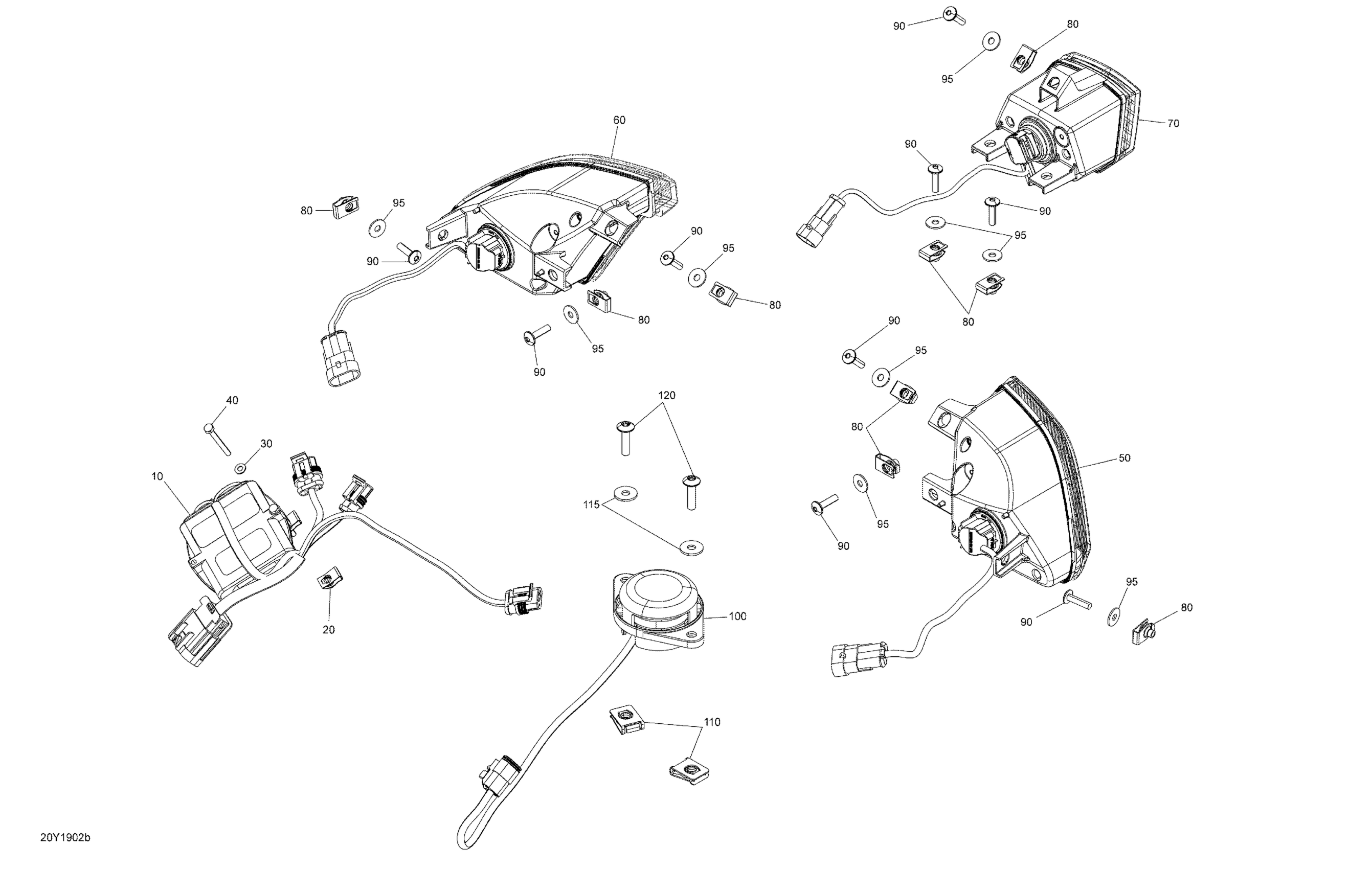

Can-Am F3 STD SE6, 2019 Electrical System Cargo Diagram

#

Description
Price

10

Harness Cargo Rear

710006431

$180.00

10

Rear Box Wiring Harness

710007697

$195.00

10

Harness Cargo Rear

710006434

$180.00

15

Tail-Stop-Flasher Lights Adapter

710006439

$37.00

20

Extruded Panel Nut M4 X 0.7

250100143

$6.77

30

Flat Washer 4 mm, Stainless

234041600

$0.91

40

Hex. Screw M4 X 40

207144060

$4.28

50

LH Rear Flasher | Except Japan

710003707

$58.00

50

Tail Light LH

710004396

$29.00

60

RH Rear Flasher | Except Japan

710003708

$61.00

60

Tail Light RH

710004397

$29.00

70

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

80

Panel Nut M5 X 0.8

250000958

$3.48

90

Torx Truss Screw M5 X 20

250000715

$2.06

95

Stainless Steel Flat Washer M5

234052670

$0.83

100

Passenger Detection Switch

710008103

$72.28

110

Panel Nut M6 X 1.0

250100208

$1.07

115

Stainless Steel Flat Washer

234062670

$1.74

120

Torx Truss Screw M6 X 25

250000807

$1.74

130

Rear Flasher | Europe, Australia, Brazil

710004400

$81.00
