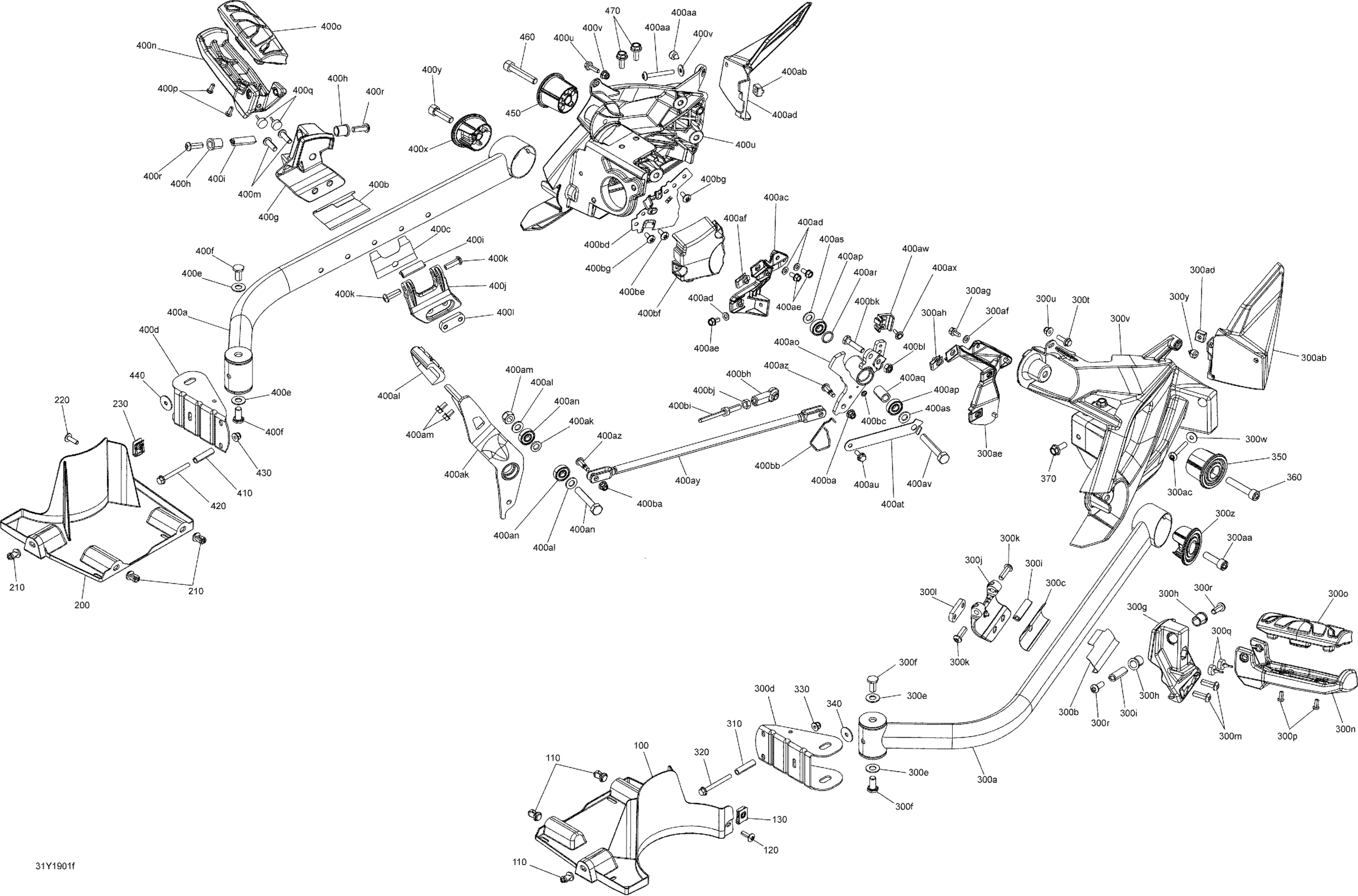

Can-Am F3 STD SE6, 2019 Body And Accessories Footrest Diagram

#

Description
Price

100

LH Front Skid Plate

705007785

$28.00

110

Tuflok Plastic Rivet

293150230

$1.21

120

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

130

Panel Nut M6 X 1.0

250100208

$1.07

200

RH Front Skid Plate

705007786

$28.00

210

Tuflok Plastic Rivet

293150230

$1.21

220

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

230

Panel Nut M6 X 1.0

250100208

$1.07

300a

Deep Black, LH Footrest Support | Includes 30 to 30b

705008256

$120.00

300b

LH Frame Protector Outside

705009449

$9.00

300c

LH inner Protective Film

705014174

$7.00

300d

Tube Support | Includes 150 to 150a

705008950

$23.00

300e

Washer

506152582

$4.42

300f

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

300g

LH Slider Outside | Includes 160 to 160b

705007798

$85.00

300h

Spacer Bushing

705008166

$6.00

300i

Pivot Pin | Includes 220 to 220

705013628

$18.00

300j

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$40.00

300k

Socket Head Screw M8 X 25

250000830

$2.00

300l

Back Plate

705008553

$25.00

300m

Socket Head Screw M8 X 25

250000830

$2.00

300n

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$51.00

300o

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

300p

Allen Plastite Screw #12

250000099

$2.31

300q

Rubber Stopper

708000759

$3.61

300r

Socket Head Screw M8 X 25

250000830

$2.00

300t

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

300u

Hex. Flange Elastic Nut M6

233261466

$1.66

300v

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$390.00

300w

Stainless Steel Flat Washer

234062670

$1.74

300y

Rubber Bumper

293830005

$5.33

300z

Pivot Cap | Includes 540 to 540b

705010203

$28.00

300aa

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

300ab

Carbon Black, LH Footpeg

708302066

$6.00

300ac

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

300ad

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

300ae

LH Fairing Support

705008961

$16.00

300af

Black, Flat Washer 6 mm

234061670

$1.00

300ag

Hex. Flange Screw M6 X 12

210261250

$1.56

300ah

Panel Nut M6 X 1.0

250100198

$1.73

310

Spacer

705008219

$13.00

320

Hex. Flange Screw M6 X 60

250000778

$3.61

330

Hex. Flange Elastic Nut M6

233261466

$1.66

340

Washer M6

250200029

$1.83

350

Pivot Cap

705010202

$23.00

360

Socket Head Screw

205505560

$7.00

370

Hex Screw Washer Head M8 X 20

207582054

$2.61

400a

Deep Black, RH Footrest Support | Includes 40 to 40b

705008258

$120.00

400b

RH Outer Protective Film

705014177

$7.00

400c

RH Inner Protective Film

705014175

$7.00

400d

Tube Support | Includes 150 to 150a

705008950

$23.00

400e

Washer

506152582

$4.42

400f

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

400g

RH Slider Outside | Includes 170 to 170b

705008158

$85.00

400h

Spacer Bushing

705008166

$6.00

400i

Pivot Pin | Includes 220 to 220

705013628

$18.00

400j

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$40.00

400k

Socket Head Screw M8 X 25

250000830

$2.00

400l

Back Plate

705008553

$25.00

400m

Socket Head Screw M8 X 25

250000830

$2.00

400n

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$51.00

400o

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$38.00

400p

Allen Plastite Screw #12

250000099

$2.31

400q

Rubber Stopper

708000759

$3.61

400r

Socket Head Screw M8 X 25

250000830

$2.00

400s

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

400t

Hex. Flange Elastic Nut M6

233261466

$1.66

400u

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$410.00

400v

Stainless Steel Flat Washer

234062670

$1.74

400w

Rubber Bumper

293830005

$5.33

400x

Pivot Cap | Includes 540 to 540b

705010203

$28.00

400y

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

400z

Black, RH Footrest Trim

708302067

$5.00

400aa

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

400ab

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

400ac

RH Fairing Support

705008962

$16.00

400ad

Black, Flat Washer 6 mm

234061670

$1.00

400ae

Hex. Flange Screw M6 X 12

210261250

$1.56

400af

Panel Nut M6 X 1.0

250100198

$1.73

400ag

Brake Pedal | Includes 800 to 800a3

705601419

$105.00

400ah

Rubber Pad

705004933

$21.00

400ai

Hex. Flange Screw M6 X 12

210261250

$1.56

400aj

Bearing

705600458

$7.03

400ak

Washer

503192496

$0.75

400al

Washer

503183800

$3.20

400am

Elastic Locking Nut M10

233601466

$1.74

400an

Hex. Cap Screw M10 X 60

207006056

$6.18

400ao

Master Cylinder Rocker | Includes 900 to 900d

705601308

$50.00

400ap

Bearing

705600458

$7.03

400aq

Bushing

705600541

$15.00

400ar

O-Ring

293300191

$1.00

400as

Washer

503183800

$3.20

400at

Locking Tab | Includes 940 to 940b

705601229

$26.00

400au

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

400av

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

400aw

Brake Master Cylinder Stopper

705601375

$12.00

400ax

Screw M4 X 16

250000725

$2.87

400ay

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$21.00

400az

Flange Screw M6 X 26

250000714

$4.00

400ba

Hex. Flange Elastic Nut M6

233261466

$1.66

400bb

Quick-Attach Bracket

705601350

$13.00

400bc

Push Nut

250100178

$0.58

400bd

Light Switch Bracket | Includes 1100 to 1100b

705601342

$12.00

400be

Torx Head Screw M6 X 16

250000717

$1.74

400bf

Switch Deflector

705601343

$14.00

400bg

Torx Head Screw M6 X 16

250000717

$1.74

400bh

ROD END - Call your local BRP dealership

705601506

$15.00

400bi

Piston Rod

705600468

$23.00

400bj

Hex. Nut M8

232081414

$0.60

400bk

Hexagonal Head Cap Screw M8 X 35

207283544

$3.00

400bl

Hex. Elastic Stop Nut M8

232581414

$0.47

410

Spacer

705008219

$13.00

420

Hex. Flange Screw M6 X 60

250000778

$3.61

430

Hex. Flange Elastic Nut M6

233261466

$1.66

440

Washer M6

250200029

$1.83

450

Pivot Cap

705010202

$23.00

460

Socket Head Screw

205505560

$7.00

470

Hex Screw Washer Head M8 X 20

207582054

$2.61
