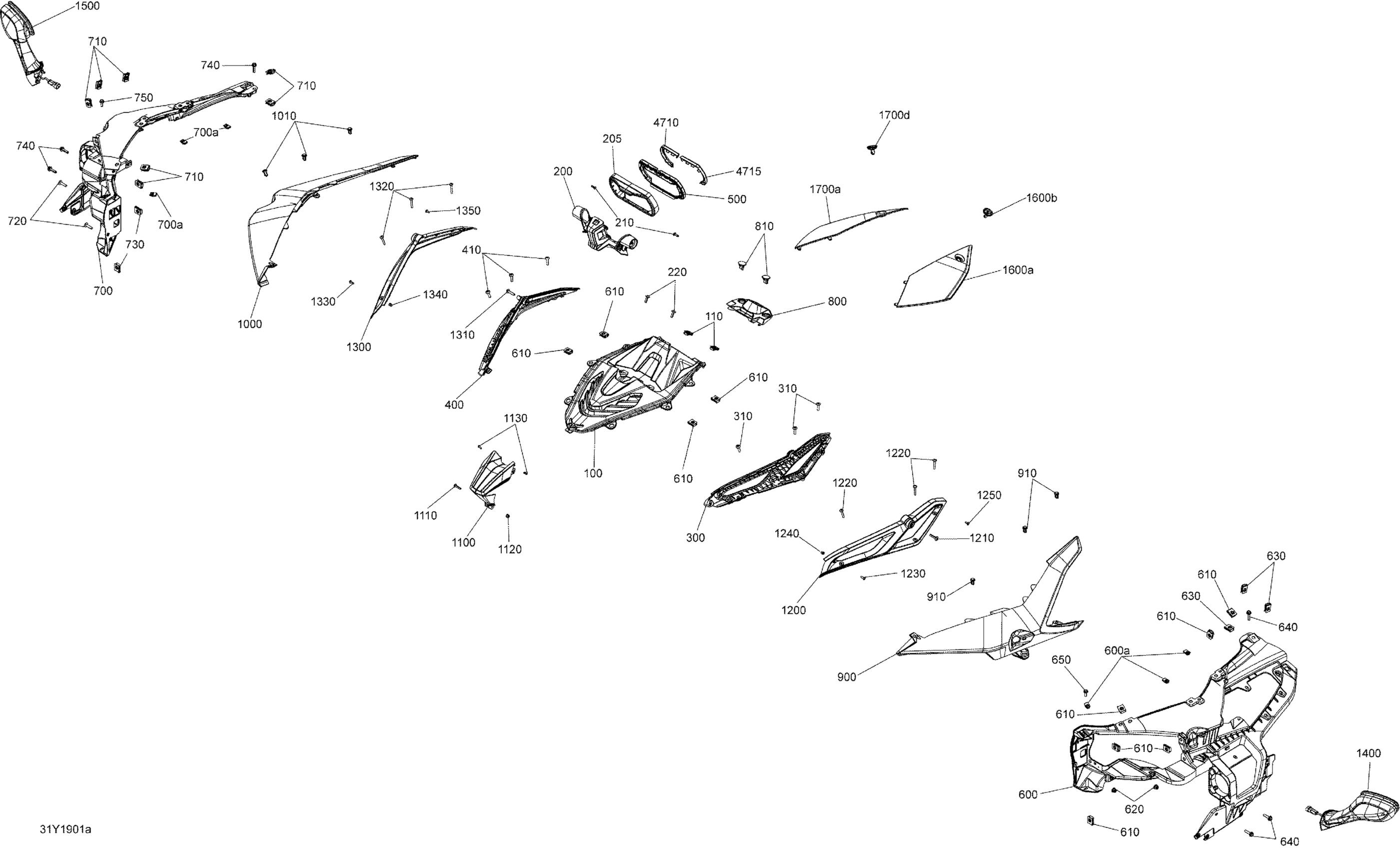

Can-Am F3 STD SE6, 2019 Body And Accessories Console Diagram

#

Description
Price

100

Upper Fairing

708400208

$37.00

110

Panel Nut M6 X 1.0

250100208

$1.07

200

Speedometer Support

705013090

$15.00

205

Rear Cluster Cap

709402092

$13.83

210

Torx Screw M6 X 20

250000722

$1.34

220

Torx-Truss Pt K40 X 16

250000759

$1.74

300

LH Slider Support

708400053

$35.00

310

Torx Truss Screw M6 X 25

250000807

$1.74

400

RH Slider Support

708400054

$38.00

410

Torx Truss Screw M6 X 25

250000807

$1.74

500

Gauge Trim

709402742

$12.68

600>600a

LH Console Support | Included 100 to 100b

708400170

$100.00

600a

Panel Nut M5 X 0.8

250000958

$3.48

610

Panel Nut M6 X 1.0

250100208

$1.07

610

Panel Nut M6 X 1.0

250100208

$1.07

620

Hex. Flange Elastic Nut M6

233261494

$1.26

630

Panel Nut M6 X 1.0

250100208

$1.07

640

Hex. Flange Screw M6 X 25

250000793

$1.74

650

Hex. Flange Screw M6 X 16

210261650

$1.22

700>700a

RH Console Support | Included 300 to 300b

708400171

$105.00

700a

Panel Nut M5 X 0.8

250000958

$3.48

710

Panel Nut M6 X 1.0

250100208

$1.07

710

Panel Nut M6 X 1.0

250100208

$1.07

720

Torx Screw M6 X 25

250000758

$1.74

730

Panel Nut M6 X 1.0

250100208

$1.07

740

Hex. Flange Screw M6 X 25

250000793

$1.74

750

Hex. Flange Screw M6 X 16

210261650

$1.22

800

Switch Bezel

708400205

$15.00

810

Cap

708400046

$4.00

810

Cap

708400046

$4.00

900

Deep Black, LH Consol Fairing

708400341

$230.00

910

Tuflok Plastic Rivet

293150230

$1.21

910

Tuflok Plastic Rivet

293150230

$1.21

1000

Deep Black, RH Consol Fairing

708400339

$230.00

1010

Tuflok Plastic Rivet

293150230

$1.21

1010

Tuflok Plastic Rivet

293150230

$1.21

1100

Black Deep Nose Fairing

708400011

$38.00

1110

Torx Screw M5 X 25

250000762

$1.74

1120

Elastic Flange Nut M5

233251494

$1.74

1130

Torx Truss Screw K40 X 12

250000577

$1.74

1200

LH Upper Console Header

708400016

$28.00

1210

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

250000604

Unavailable

1220

Torx Screw Nylon

250000732

$1.74

1230

Screw-Torx Button Head M5 X 14

235551454

$7.31

1240

Cap Nut M5

250100152

$2.00

1250

Torx Truss Screw K40 X 12

250000577

$1.74

1300

RH Upper Console Header

708400017

$28.00

1310

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

250000604

Unavailable

1320

Torx Screw Nylon

250000732

$1.74

1330

Screw-Torx Button Head M5 X 14

235551454

$7.31

1340

Cap Nut M5

250100152

$2.00

1350

Torx Truss Screw K40 X 12

250000577

$1.74

1400>1400b

LH Lighted Mirror Ass'y

705008964

$285.00

1400>1400b

LH Housing Rear View Mirror Ass'y

705015049

$275.00

1400a

LH MIRROR LENS - Call your local BRP dealership

219800047

Unavailable

1400b

BULB 12V 21W, AMBER - Call your local BRP dealership

219800046

Unavailable

1500>1500b

RH Lighted Mirror Ass'y

705008969

$285.00

1500>1500b

RH Housing Rear View Mirror Ass'y

705015050

$275.00

1500a

RH MIRROR LENS - Call your local BRP dealership

219800048

Unavailable

1500b

BULB 12V 21W, AMBER - Call your local BRP dealership

219800046

Unavailable

1600a

Black Polycarbonate, LH Acces Panel

708400238

$23.00

1600a

Black Polycarbonate, LH Acces Panel

708400238

$23.00

1600b

Cover Latch Quarter Turn

708400065

$2.99

1700a

Black Polycarbonate, RH Acces Panel

708400239

$23.00

1700b

Cover Latch Quarter Turn

708400065

$2.99

4710

Deep Black, LH Trim Gauge

709402210

$27.66

4715

Deep Black, RH Trim Gauge

709402211

$27.66
