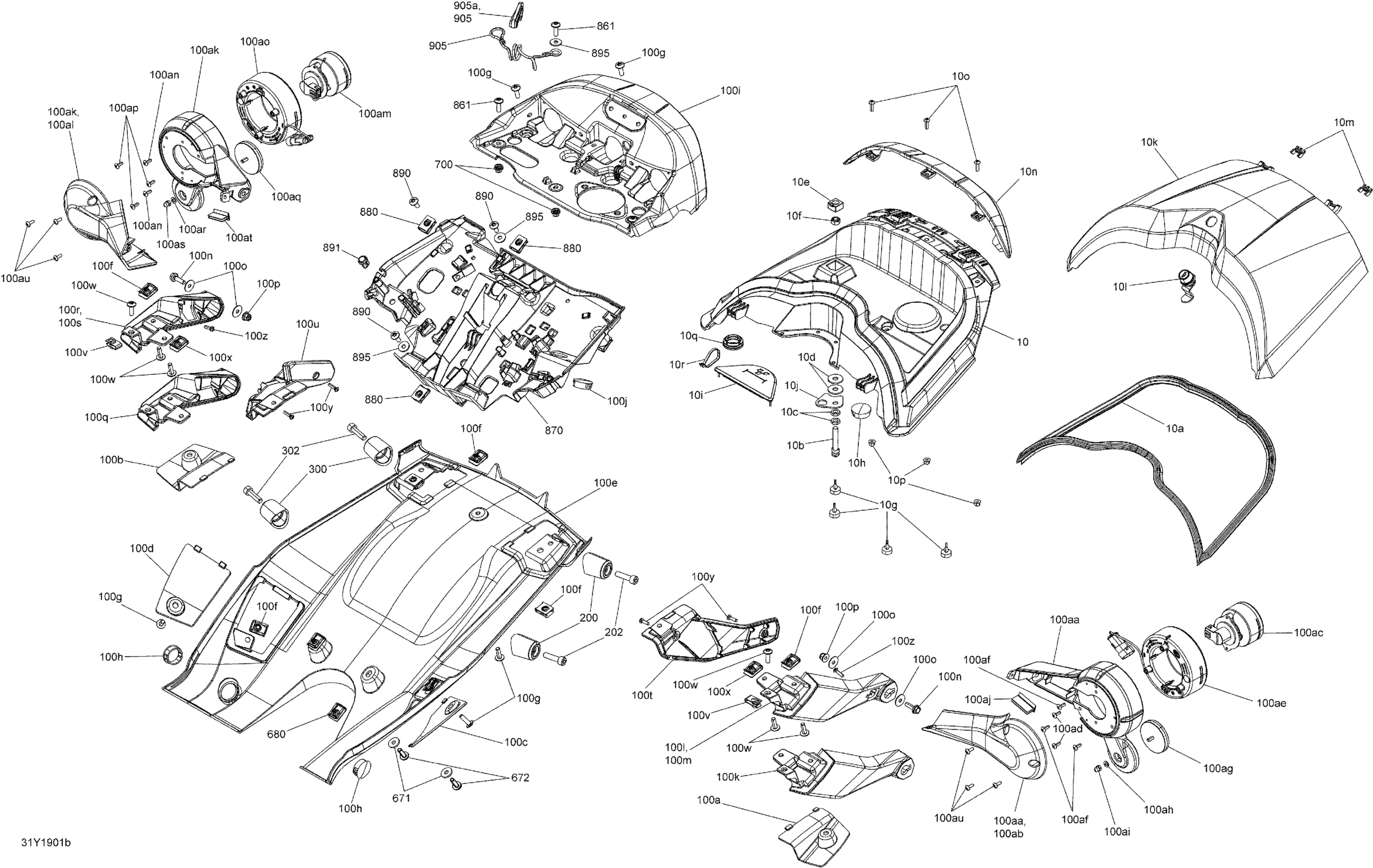

Can-Am F3 STD SE6, 2019 Body And Accessories Cargo Diagram

#

Description
Price

10>10r

Steel Black, Mono Seat Cowl Kit | Included 10 to 10j

219400494

$450.00

10a

EXTRUSION - Call your local BRP dealership

293250336

Unavailable

10b

LUG - Call your local BRP dealership

708001990

Unavailable

10c

Hex. Jam Nut M8

232180600

$0.56

10d

Flat Washer 8 mm

234082410

$1.11

10e

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

10f

Hex. Elastic Nut M8 Brass

232581200

$1.29

10g

Rubber Stopper

708000759

$3.61

10h

Black, Nylon Cap

414916600

$4.32

10i

Backrest Trim

708301604

$9.00

10j

Washer

708001909

$10.00

10k

Steel Black, Cover Trunk | Included 10b to 10b5

708301417

$280.00

10l

Lock Kit

219800407

$58.00

10m

Opening Limiter

708301727

$3.00

10n

Trim

708301416

$12.00

10o

Torx Truss Screw M5 X 16, T25

250000578

$1.74

10p

Flange Elastic Nut M5

233251434

$1.66

10q

Grommet Boot

710002926

$4.60

10r

Tie Wrap 142 mm

293750002

$0.88

100a

LH Rear Cap

708301449

$15.00

100b

RH Rear Cap

708301450

$15.00

100c

LH Front Cap

708301513

$17.00

100d

RH Front Cap

708301514

$17.00

100e

Under Tail Cover

708001415

$55.00

100f

Panel Nut M6 X 1.0

250100208

$1.07

100g

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100h

Black, Nylon Cap

414916600

$4.32

100i

Taillight Support

708002814

$27.00

100j

Black, Nylon Cap

414916600

$4.32

100k

LH Support

708001622

$19.00

100l

LH Flasher Support

708002222

$72.00

100m

LH Flasher Support

708002222

$72.00

100n

Hex. Flange Screw M6 X 20

207662044

$1.66

100o

Flat Washer

224060201

$1.15

100p

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100q

RH Support

708001623

$19.00

100r

RH Flasher Support

708002223

$72.00

100s

RH Flasher Support

708002223

$72.00

100t

LH Cap Support

708001624

$17.00

100u

RH Cap Support

708001625

$17.00

100v

Panel Nut M6 X 1.0

250100198

$1.73

100w

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100x

Panel Nut M6 X 1.0

250100208

$1.07

100y

Torx-Truss Pt K40 X 16

250000759

$1.74

100z

Flange Torx Screw K40 X 16

250000287

$1.74

100aa

LH Housing Ass'y

708002232

$32.00

100ab

LH Housing Ass'y

708002232

$32.00

100ac

Rear Flasher

710004057

$164.00

100ad

Torx Truss Screw K40 X 12

250000577

$1.74

100ae

Rear Light

710004056

$402.00

100af

Torx Truss Screw K40 X 12

250000577

$1.74

100ag

Red Reflector

705011221

$12.32

100ah

Flat Washer M5

234051670

$1.74

100ai

Cap Nut M5

250100152

$2.00

100aj

Neoprene Seal 3000Mm Long

219704371

$45.47

100ak

RH Housing Ass'y

708002233

$32.00

100al

RH Housing Ass'y

708002233

$32.00

100am

Rear Flasher

710004057

$164.00

100an

Torx Truss Screw K40 X 12

250000577

$1.74

100ao

Rear Light

710004056

$402.00

100ap

Torx Truss Screw K40 X 12

250000577

$1.74

100aq

Red Reflector

705011221

$12.32

100ar

Flat Washer M5

234051670

$1.74

100as

Cap Nut M5

250100152

$2.00

100at

Neoprene Seal 3000Mm Long

219704371

$45.47

100au

Torx Truss Screw K40 X 12

250000577

$1.74

200

Frame Protector

708301525

$5.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

300

Frame Protector

708301525

$5.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

671

Stainless Steel Flat Washer

234062670

$1.74

672

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

680

Panel Nut M6 X 1.0

250100208

$1.07

700

Insert Half Hex Body M6 x 1.0

250100199

$2.54

861

Torx Screw M6 X 20

250000722

$1.34

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

$1.07

890

Torx Truss M8 X 16

250000881

$1.74

891

Tuflok Plastic Rivet

293150230

$1.21

895

Flat washer M6

250200164

$0.83

905>905a

Lanyard | Included 905 to 905d

708002532

$23.00

905a

Cord Decal

704905127

Unavailable
