Partiron

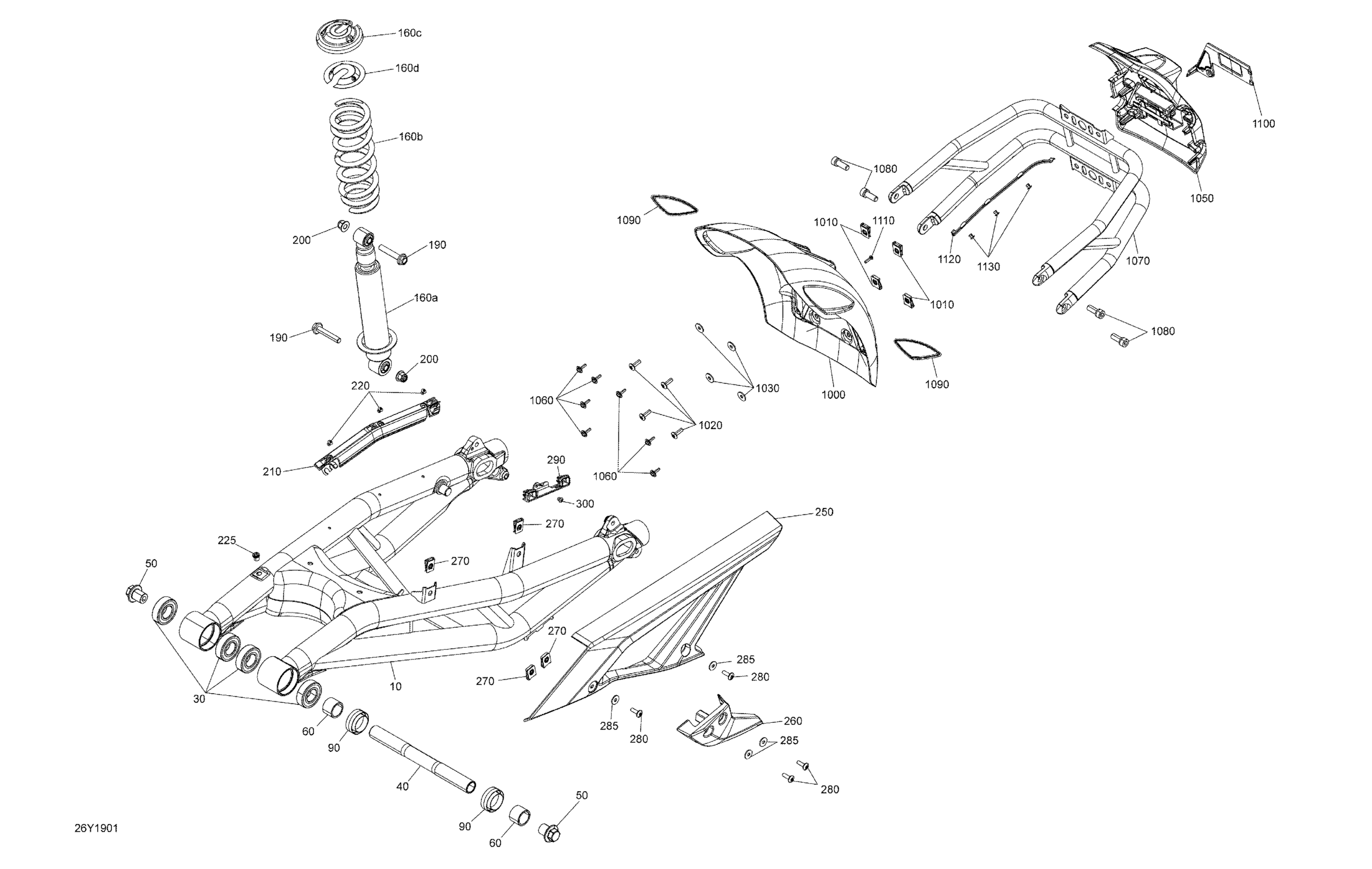

Can-Am F3 STD SE6, 2019 Suspension, Rear Diagram

#

Description
Price

10

Black, Swingarm

706002313

$466.49

10

Carbon Black, Swingarm

706002315

$158.99

10

Carbon Black, Swingarm

706002315

$158.99

10

Orange Crush - Swing Arm | Package S B-429 Liquid Titan

706003460

$158.99

30

Ball Bearing

293350115

$10.82

40

Swing Arm Axle

706001182

$93.99

50

Bolt M20

706001579

$16.87

60

Spacer

706001152

$9.49

90

Sleeve

706001366

$1.26

160a

Shock

706001703

$137.49

160b

Spring

706002113

$83.49

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

210

Cable Cap

706202131

$12.16

220

Rivet 3/16"

293150102

$0.69

225

Insert

293450275

$9.89

250

Upper Belt Guard

705010380

$53.99

250

Upper Belt Guard

705010380

$53.99

250

Upper Belt Guard

705010381

$53.99

260

Lower Belt Guard

705008756

$45.99

260

Lower Belt Guard

705008756

$45.99

260

Lower Belt Guard

705009059

$45.99

270

Panel Nut M6 X 1.0

250100208

$1.07

280

Torx Truss Screw M6 X 20

250000350

$4.39

285

Stainless Steel Flat Washer

234062670

$1.74

290

Cable Cap

706202264

$5.29

300

Rivet 3/16"

293150102

$0.69

1000

Rear Fender

705011661

$204.99

1010

Panel Nut M6 X 1.0

250100208

$1.07

1020

Torx Truss Screw M6 X 20

250000705

$1.74

1030

Flat Washer

250200082

$0.35

1050

Rear Fender Moulding

705008241

$204.99

1050

Rear Fender Moulding

705008241

$204.99

1050

Rear Fender Moulding

705009197

$204.99

1050

Rear Fender Moulding

705009197

$204.99

1060

Screw M4 X 16

250000725

$2.87

1070

Carbon Black Rear Fender Support

705008249

$214.99

1080

Allen Screw S.GRIP M10 X 25

205502560

$6.77

1090

Amber, Lateral Reflector

705002423

$12.88

1090

Amber, Lateral Reflector

705002423

$12.88

1090

Red, Lateral Reflector

705003412

$12.88

1090

Red, Lateral Reflector

705003412

$12.88

1100

Cover Moulding

705008990

$11.49

1110

Flange Torx Screw K40 X 16

250000287

$1.74

1120

Cable Cap

706202219

$6.98

1130

Rivet 3/16"

293150102

$0.69
