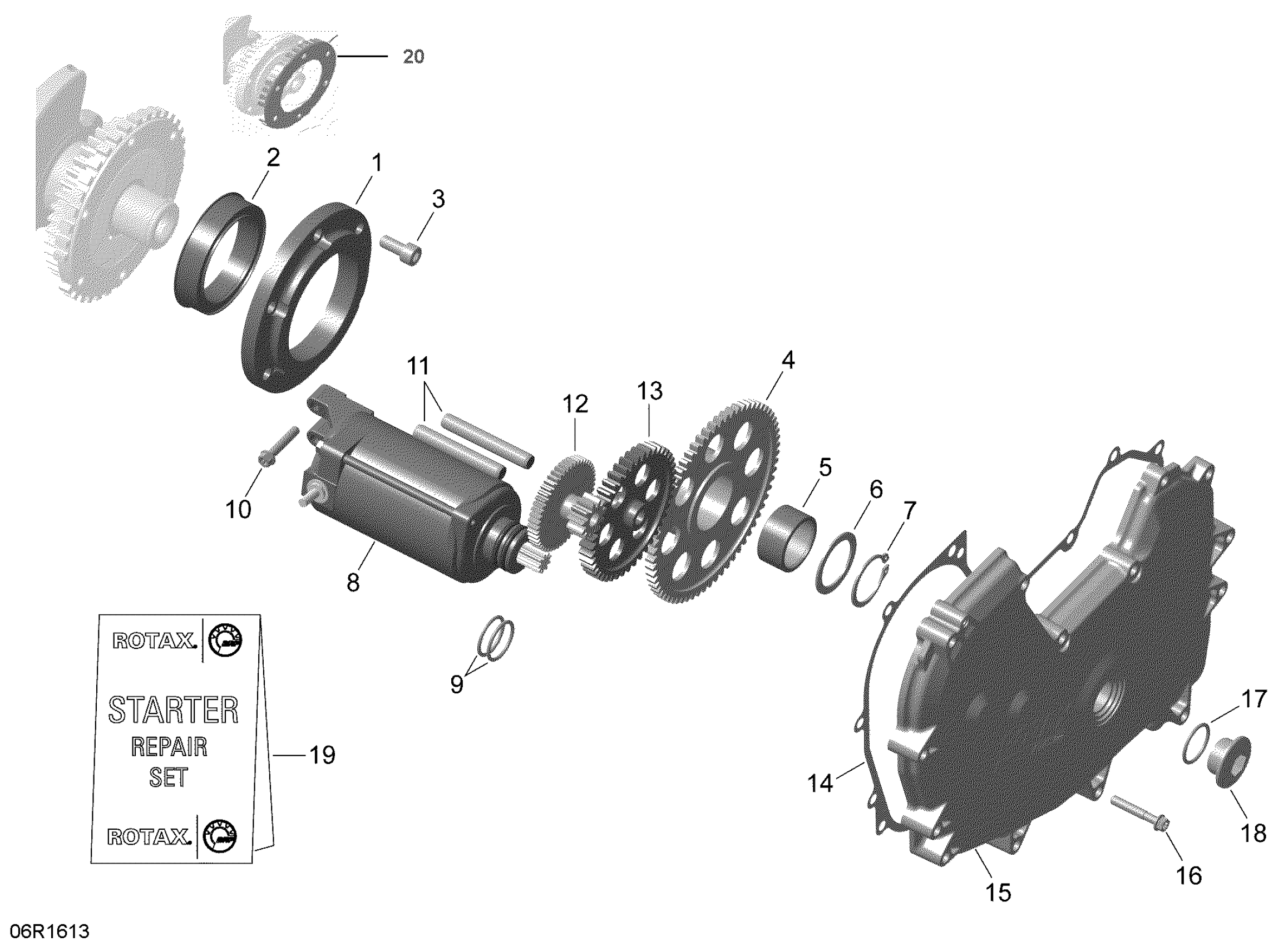

Can-Am F3 STD SE6, 2019 Electric Starter Diagram

#

Description
Price

1

Sprag Clutch Housing

420458012

$119.99

2

Sprag Clutch

420659119

$179.99

3

Socket Head Screw M8 X1 8

420641509

$3.49

4

Gear 66T | Includes 4 to 5,

420435336

$154.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Thrust Washer

420427111

$4.23

7

Circlip

420945720

$3.49

8

Starter Ass'y | Includes 8 to 9

420893830

$265.99

9

O-Ring

420250145

$10.33

10

Torx Flange Screw M6 X 30

420440647

$2.00

11

Pin Cylindrical

420229472

$14.24

12

Double Gear

420435382

$179.99

13

Gear 44 Teeth

420435390

$79.99

14

Gasket

420450010

$19.49

15

Valve Train Cover

420210296

$169.49

16

Torx Flange Screw M6 X 35

420440274

$1.01

17

O-Ring

420430783

$1.90

18

Plug Screw M24 X 1.5

420241635

$5.82

19

Carbon Brush Set

420881145

$204.99

20

Trigger Wheel

420266773

$18.49
