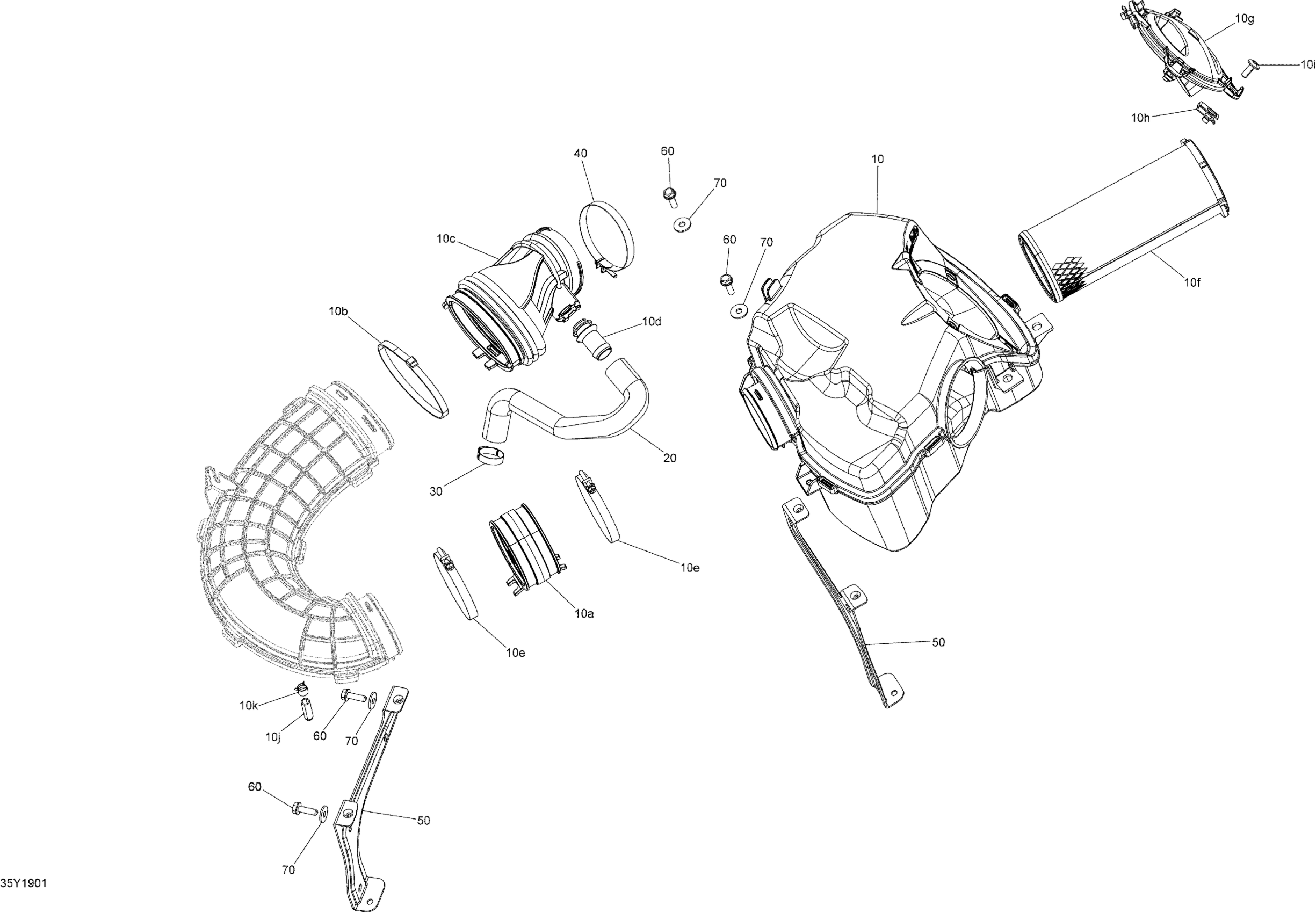

Can-Am F3 STD SE6, 2019 Air Intake Diagram

#

Description
Price

10

Air Intake | Includes 10 to 10q

707800584

$185.00

10a

Intake Adaptor

707800590

$34.00

10b

Tie Rap

509000165

$2.75

10c

Air Intake Adaptor

707800388

$34.00

10d

Breather Valve

273000234

$10.63

10e

Gemi Clamp

508000150

$13.00

10f

Air Filter

707800483

$47.00

10g

Cover

707801131

$20.00

10h

Panel Nut M6 X 1.0

250100198

$1.73

10i

Torx Truss Screw M6 X 16

250000348

$1.74

10j

Cap Plug

293000105

$3.38

10k

Spring Clamp

414554800

$0.83

20

Formed Hose

707800824

$19.00

30

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

40

Gemi Clamp

508000346

$9.31

50

Air Intake Bracket | Includes 50 to 50b

707800602

$17.00

60

Hex. Flange Screw M6 X 20

250000768

$2.06

70

Flat Washer M6, Stainless

234062600

$0.64
