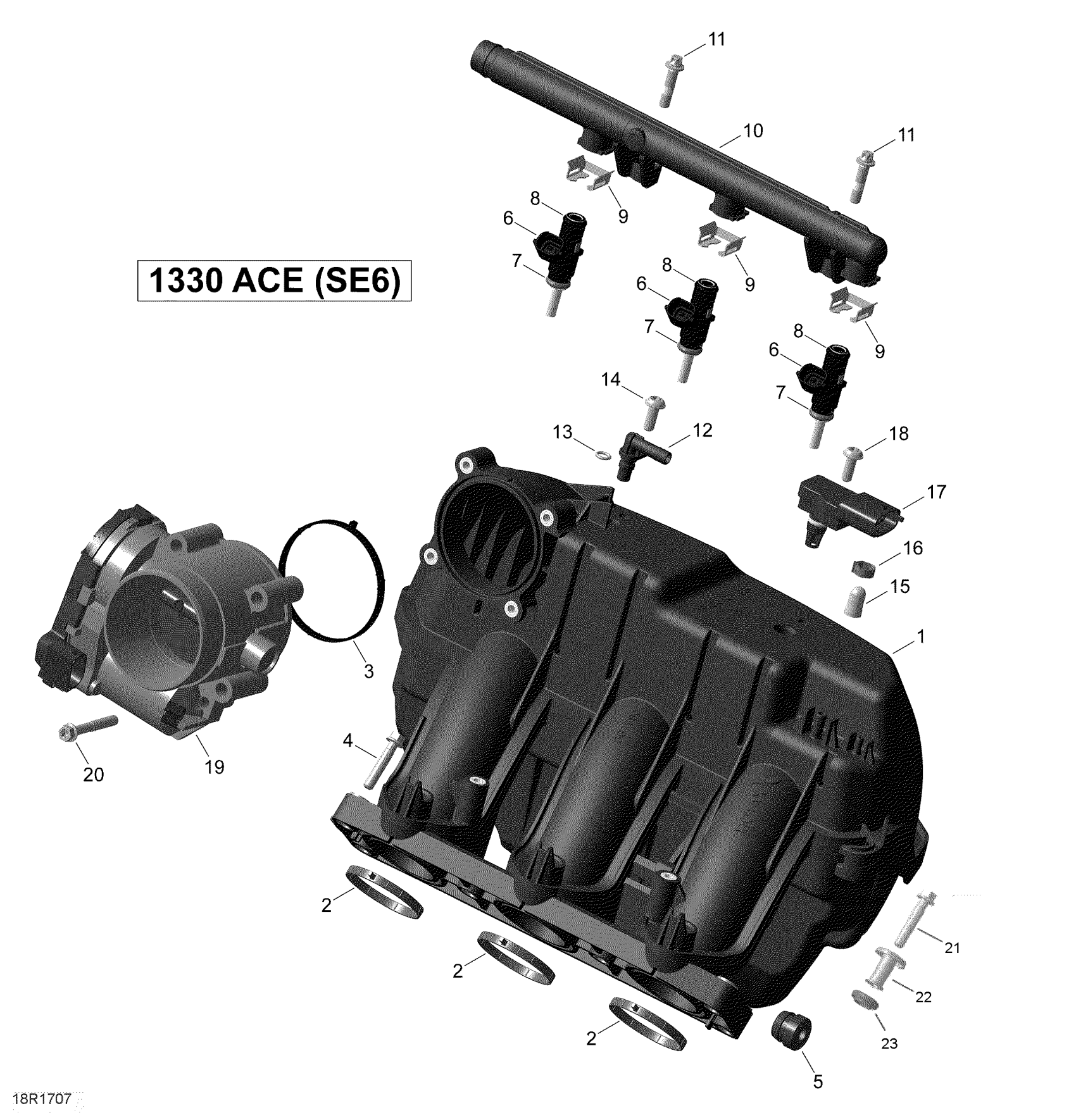

Can-Am On-Road 001 - F3 STD SE6, 2019 02- Air Intake Manifold and Throttle Body Diagram

#

Description
Price

1

Airbox Ass'y | Includes 1 to 3

420667687

$279.99

2

Gasket | One Piece Gasket

420431667

$36.99

3

Gasket

420431901

$34.99

4

Torx Flange Screw M6 X 30

420440647

$2.00

5

Isolator

420201170

$15.87

6

Fuel Injector This part replaces 420274217.

420274218

$121.99

7

O-Ring

420431890

$7.49

8

O-Ring

420631220

$14.28

9

Injector Clip

420853030

$3.09

10

Fuel Rail

420274230

$33.99

11

Torx Flange Screw M6 X 25

420440234

$3.06

12

Fitting

420201191

$6.67

13

O-Ring

420230530

$3.17

14

Torx Flange Screw M6 X 16

420641588

$2.11

15

Cap

420960770

$4.12

16

Clamp

420853653

$7.41

17

Pressure And Temperature Sensor

707000995

$88.99

18

Torx Flange Screw M6 X 16

420641588

$2.11

19

Throttle Body Socket Ass'y

420892596

$466.49

20

Torx Flange Screw M6 X 45

420440324

$0.98

21

Torx Flange Screw M6 X 30

420440647

$2.00

22>23

Distance Sleeve

420629175

$19.99
