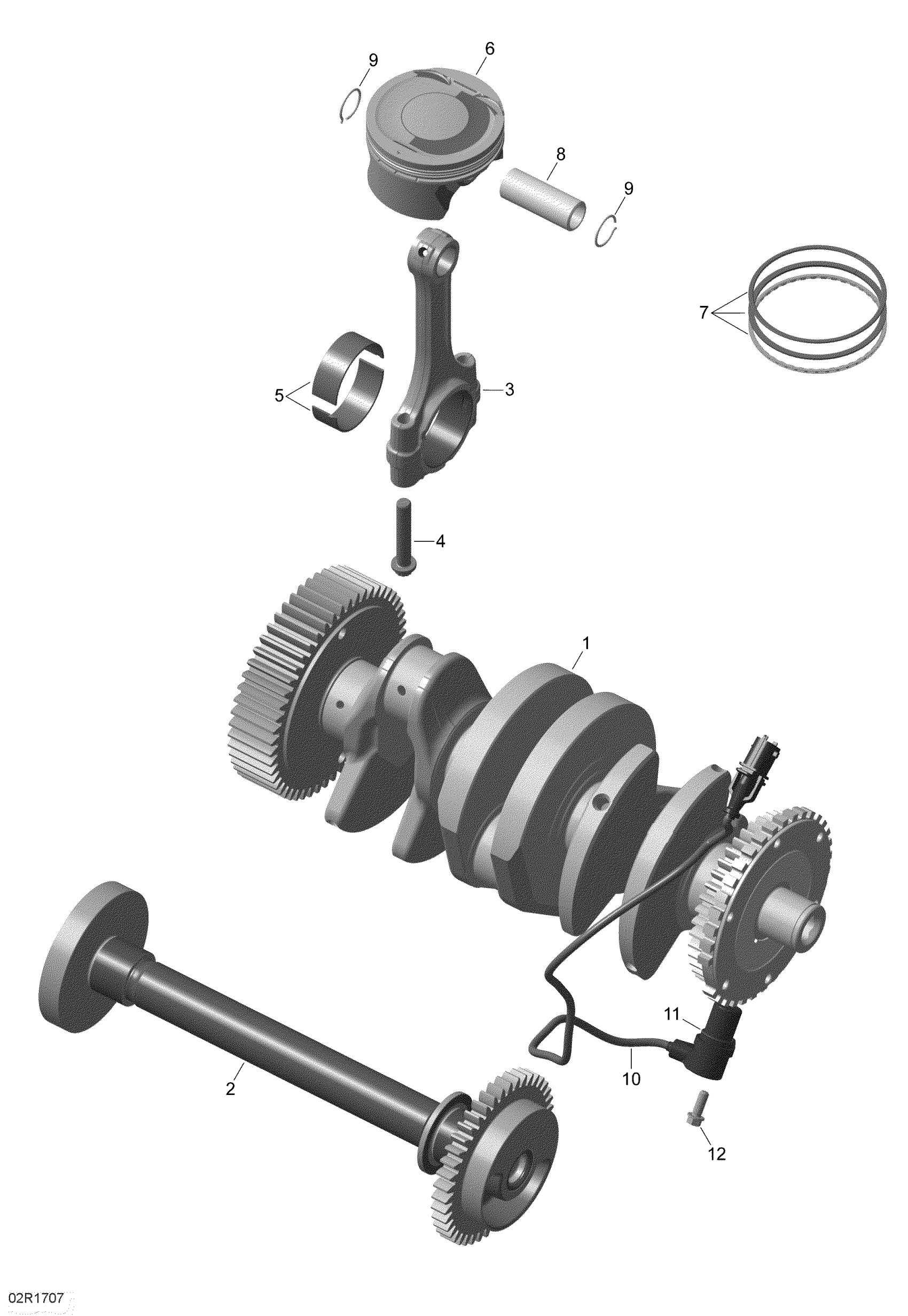

Can-Am On-Road 001 - F3 STD SE6, 2019 01- Crankshaft, Pistons and Balance Shaft Diagram

#

Description

Price

1

Crankshaft

420219783

$1,288.49

2

Balance Shaft

420637206

$307.49

3

Connecting Rod Ass'y | Includes 3 to 4

420217599

$138.49

4

Connecting Rod Screw M9 X 1

420441461

$8.47

5

Plain Bearing

420233291

$25.49

6

Piston 83.97 mm Ass'y | Includes 6 to 7

420685741

$212.49

7

Piston Ring Set

420685744

$70.49

8

Piston Pin

420216360

$31.99

9

Piston Circlip

420845107

$4.89

10

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

11

O-Ring

420431580

$14.83

12

Torx Flange Screw M6 X 16

420440164

$2.19
