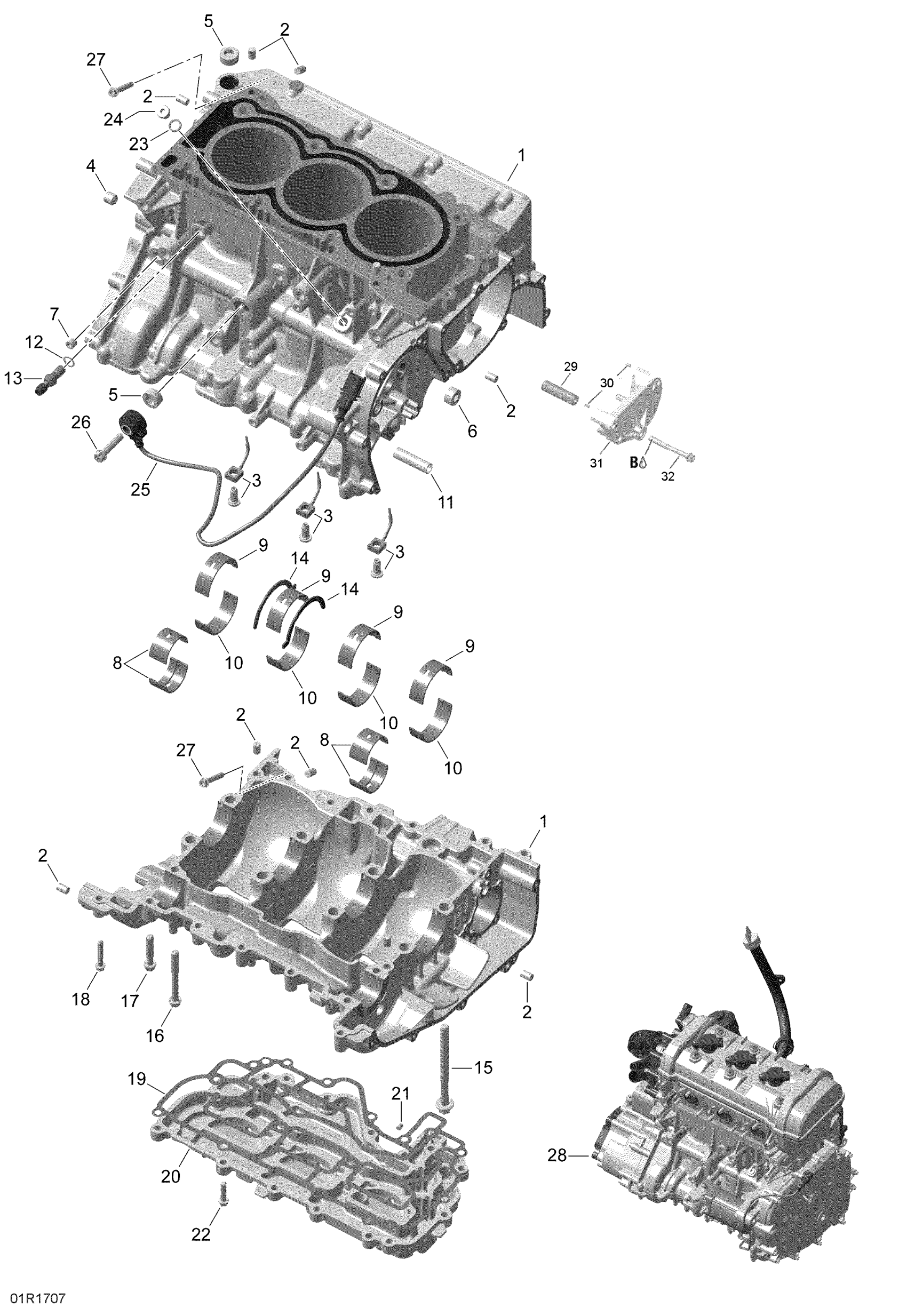

Can-Am F3 STD SE6, 2019 Crankcase Diagram

#

Description
Price

1

Crankcase | Includes 1 to 13

420686583

$2,672.99

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spraying Jet

420656973

$26.49

4

Plug Screw M12x1,5

420840658

$7.51

5

Plug Screw M20 X 1.5

420641317

$14.22

6

Plug Screw M18 X 1.5

420441050

$13.22

7

Plug Screw M10 X 1

420641323

$14.28

8

Plain Bearing

420933858

$27.49

9

Plain Bearing

420233848

$28.49

10

Plain Bearing

420233846

$28.49

11

SLEEVE - Call your local BRP dealership

420647280

Unavailable

12

Oil Seal

420230150

$2.85

13

Bleeder Screw M10 X 1

420441630

$15.35

14

Half-Ring

420933475

$11.63

15

Torx Flange Screw M9 X 113

420940945

$13.70

16

Torx Flange Screw M8 x 70

420441085

$4.65

17

Torx Flange Screw M8 x 40

420440485

$5.40

18

Torx Flange Screw M6 X 35

420440274

$1.01

19

Gasket

420250610

$15.89

20

Oil Pan

420611742

$169.49

21

Plug Screw M8 x 1

420941614

$6.98

22

Torx Flange Screw M6 X 25

420440234

$3.06

23

Oil Seal

420230150

$2.85

24

Plug Screw M10 X 1

420641733

$12.72

25

Noise Sensor

420664031

$63.99

26

Torx Flange Screw M8 X 35

420641188

$7.41

27

Torx Flange Screw M6 X 35

420440274

$1.01

28

Engine

420014032

$12,720.00

28

Engine

321403217

$12,720.00

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable
