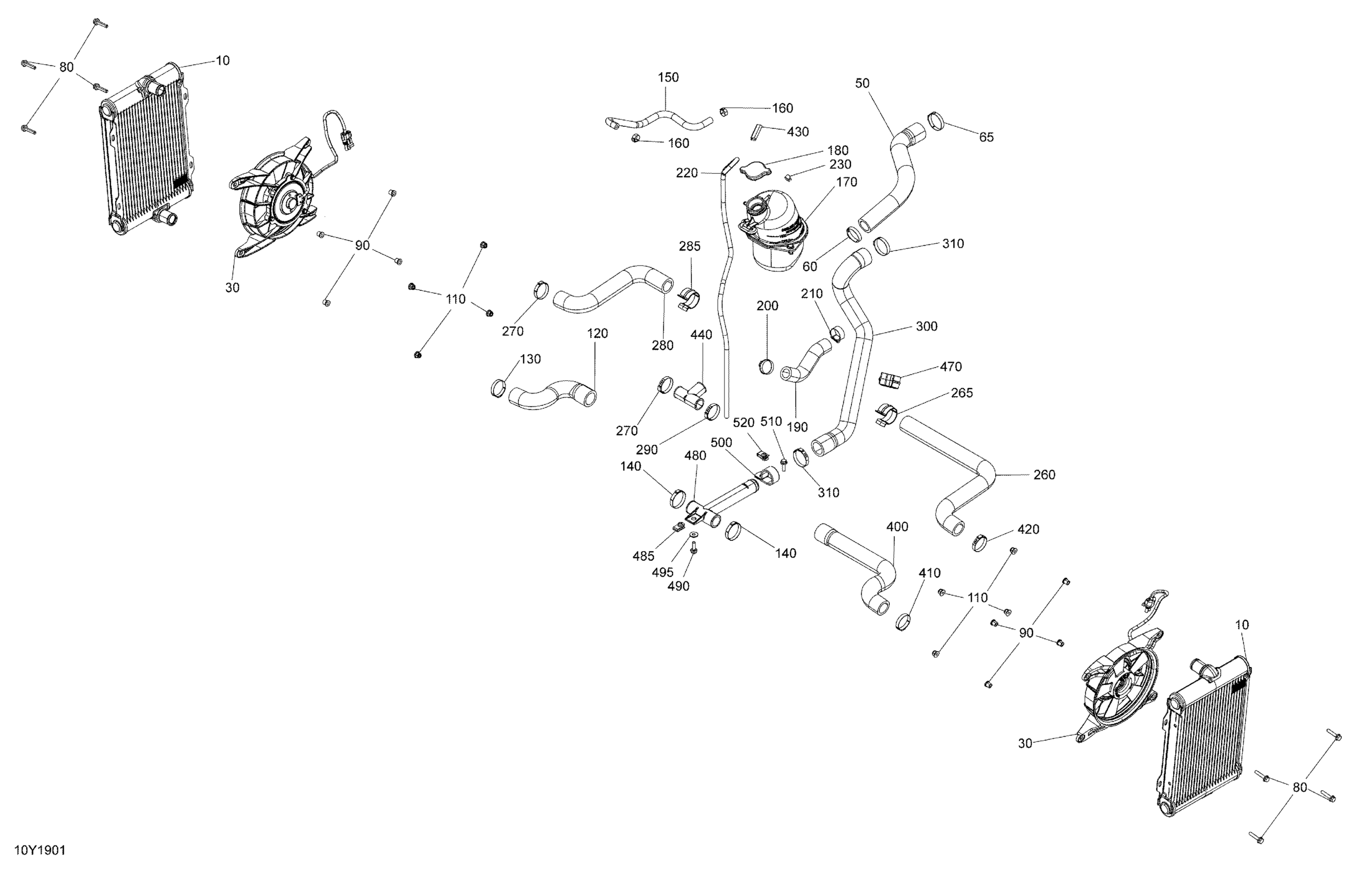

Can-Am F3 STD SE6, 2019 Cooling System Diagram

#

Description
Price

10

Radiator

709200529

$434.00

30

Fan

709200523

$290.00

50

Upper Formed Water Pump Hose

709200871

$33.00

60

Oetiker Gear Clamp 36.1MM

509000045

$3.55

65

Oetiker Gear Clamp

293650199

$7.16

80

Hex. Flange Screw M6 X 30

207663046

$1.42

90

Sleeve

709200553

$4.00

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

120

RH Lower Formed Radiator Hose

709200872

$22.00

130

Oetiker Gear Clamp 36.1MM

509000045

$3.55

140

Oetiker Gear Clamp

293650199

$7.16

150

Formed Hose

709200324

$31.00

160

Oetiker Clamp

293650046

$2.33

170

Coolant Tank

709200749

$100.00

180

Pressure Cap

509000187

$27.66

190

Lower Formed Coolant Tank Hose

709200874

$39.00

200

Oetiker Gear Clamp

293650165

$4.32

210

Tridon Gear Clamp

293650051

$3.61

220

Polyurethane Hose 10000Mm Long

219704410

$46.12

230

Spring Clamp

414554800

$0.83

260

LH Upper Radiator Hose

709200875

$33.00

265

Clip

275500951

$8.29

270

Oetiker Gear Clamp 36.1MM

509000045

$3.55

280

RH Upper Radiator Hose Formed

709200876

$32.00

285

Clip

275500951

$8.29

290

Oetiker Gear Clamp 36.1MM

509000045

$3.55

300

Lower Formed Water Pump Hose

709200877

$63.00

310

Oetiker Gear Clamp

293650199

$7.16

380

Oblong Grommet

705003668

$4.54

390

Tuflok Plastic Rivet

293150230

$1.21

400

LH Lower Formed Radiator Hose

709200878

$33.00

410

Oetiker Gear Clamp 36.1MM

509000045

$3.55

420

Oetiker Gear Clamp

293650199

$7.16

430

Trim 1000Mm Long

219704354

$14.74

440

T-Fitting

509000219

$15.35

470

Retainer

275500590

$7.18

480

Manifold

709200580

$15.00

485

Panel Nut M6 X 1.0

250100198

$1.73

490

Hex. Flange Screw M6 X 20

207662044

$1.66

495

Flat Washer 6 mm

234062410

$0.64

500

Open Clamp

293750035

$4.00

510

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

520

Panel Nut M6 X 1.0

250100198

$1.73
