Partiron

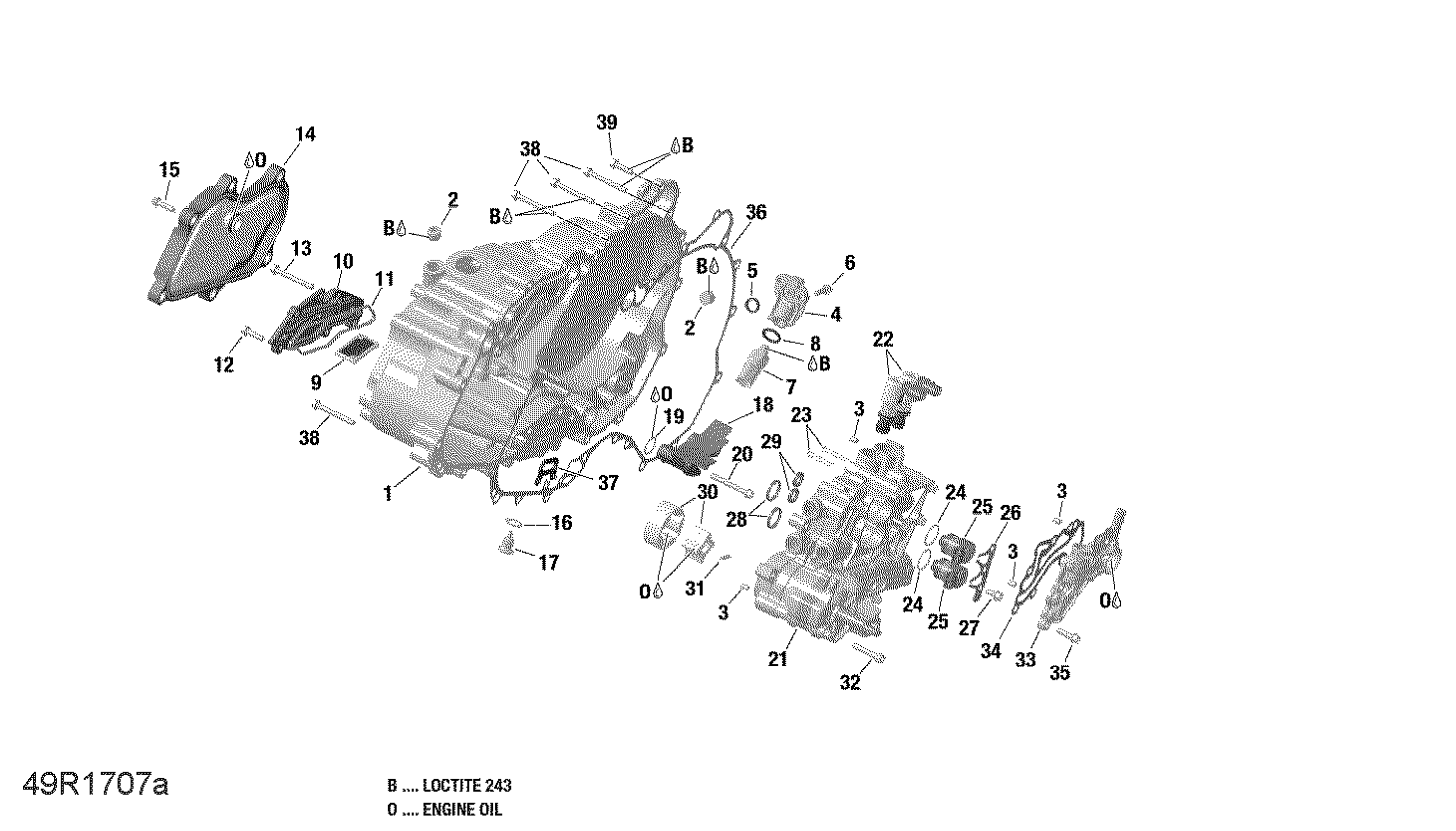

Can-Am F3 STD SE6, 2019 Clutch Cover - SE6 Diagram

#

Description
Price

1>3a

Clutch Cover

420212908

$561.00

2

Plug Screw M14 X 1.5

420641308

$12.91

3

Center Pin

420232210

$8.29

3a

Torx Screw M8 X 18

420841732

$1.00

4

Pressure Sensor Housing

420212175

$110.00

5

Gasket

420450310

$2.00

6

Torx Flange Screw M6 X 20

420440207

$2.54

7>8

Oil Pressure Sensor

420264166

$320.00

8

O-Ring

420450350

$21.00

9

Oil Sieve

420656990

$13.00

10

Oil Duct Cover

420210871

$70.00

11

Gasket

420250630

$12.00

12

Torx Flange Screw M6 X 20

420440207

$2.54

13

Torx Flange Screw M6 X 45

420440324

$0.81

14

Oil Filter Cover

420211156

$138.00

15

Torx Flange Screw M6 X 20

420440207

$2.54

16

Copper Washer

420250640

$0.81

17

Magnetic Drain Plug M12 X 1.5

420241780

$17.66

18

Oil Guiding Plate

420224085

$19.00

19

O-Ring

420430220

$8.03

20

Torx Flange Screw M6 X 45

420440324

$0.81

21>29

Hydraulic Housing Ass'y

420210982

$2,565.00

22

Solenoid Valve 3/2

420264212

$240.00

23

Spring Clip

420939040

$7.00

24>25

Solenoid Valve Ass'y

420656792

$320.00

26

Retaining Plate

420651701

$14.00

27

Hex. Flange Screw M6 X 12

420440147

$1.97

28

Gasket

420450240

$2.00

29

Gasket

420450310

$2.00

30

Oil Pump Rotor

420456290

$74.00

31

Needle Pin

420232731

$1.56

32

Socket Head Screw M6 X 30

205063044

$1.42

33

Valve Housing

420211124

$69.00

34

Gasket

420450290

$26.00

35

Torx Flange Screw M6 X 20

420440207

$2.54

36>37

Gasket Ass`y

420450032

$26.00

38

Torx Flange Screw M6 X 45

420440324

$0.81

39

Torx Flange Screw M6 X 20

420440207

$2.54
