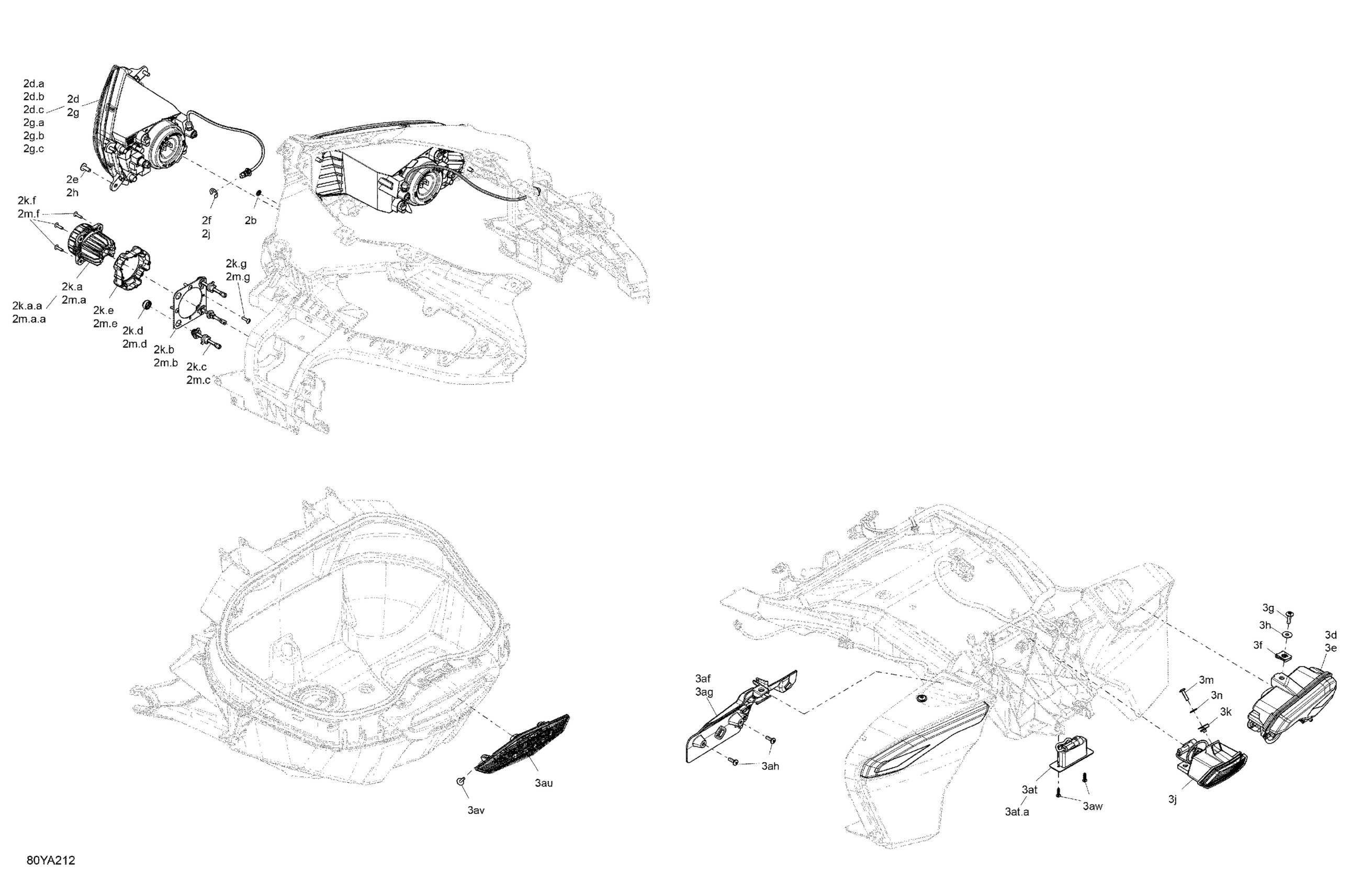

Can-Am F3 LIMITED - Dark Edition - Barely Blue, 2021 Electric - Vehicle Lighting - Australia-Europe-Japan Diagram

#

Description
Price

2b

Push Nut

250100034

$1.27

2d

LH Headlight | Includes 0b to 0b3

710006997

$239.99

2d.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2d.b

Rubber Cap Protector

219800280

$17.13

2d.c

Spring

219800281

$3.13

2e

Torx Truss Screw M6 X 16

250000721

$1.60

2f

E-Circlip

293370013

$0.60

2g

RH Headlight | Includes 0d to 0d3

710006998

$239.99

2g.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2g.b

Rubber Cap Protector

219800280

$17.13

2g.c

Spring

219800281

$3.13

2h

Torx Truss Screw M6 X 16

250000721

$1.60

2j

E-Circlip

293370013

$0.60

2k.a

Low Beam Ass'y

710006007

$349.99

2k.a.a

Halogen Bulb

415129249

$38.78

2k.b

Headlight Support

710007188

$15.49

2k.c

Adjustment Screw

710007200

$10.27

2k.d

Clip

293730095

$1.68

2k.e

Adapter

710007189

$3.59

2k.f

Torx-Truss Pt K40 X 16

250000759

$2.00

2k.g

Torx-Truss Pt K40 X 16

250000759

$2.00

2m.a

Low Beam Ass'y

710006007

$349.99

2m.a.a

Halogen Bulb

415129249

$38.78

2m.b

Headlight Support

710007188

$15.49

2m.c

Adjustment Screw

710007200

$10.27

2m.d

Clip

293730095

$1.68

2m.e

Adapter

710007189

$3.59

2m.f

Torx-Truss Pt K40 X 16

250000759

$2.00

2m.g

Torx-Truss Pt K40 X 16

250000759

$2.00

3d

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

3e

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

3f

Panel Nut M6 X 1.0

250100208

$1.22

3g

Torx Screw M6 X 20

250000722

$1.54

3h

Flat washer M6

250200164

$0.96

3j

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

3k

Panel Nut M5 X 0.8

250000958

$4.00

3m

Torx Truss Screw M5 X 20

250000715

$2.00

3n

Stainless Steel Flat Washer M5

234052670

$0.96

3af

LH Connector Support

710004643

$12.99

3ag

RH Connector Support

710004644

$11.49

3ah

Torx Screw K50 X 16

250000720

$1.60

3at

License Light | Includes 0an to 0an1

710001451

$76.49

3at.a

Bulb

219800128

$2.46

3au

Non-fonctional Rear Tail-light

520001785

$121.99

3av

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

3aw

Hex. Flange Screw K40 X 16

250001123

$2.00
