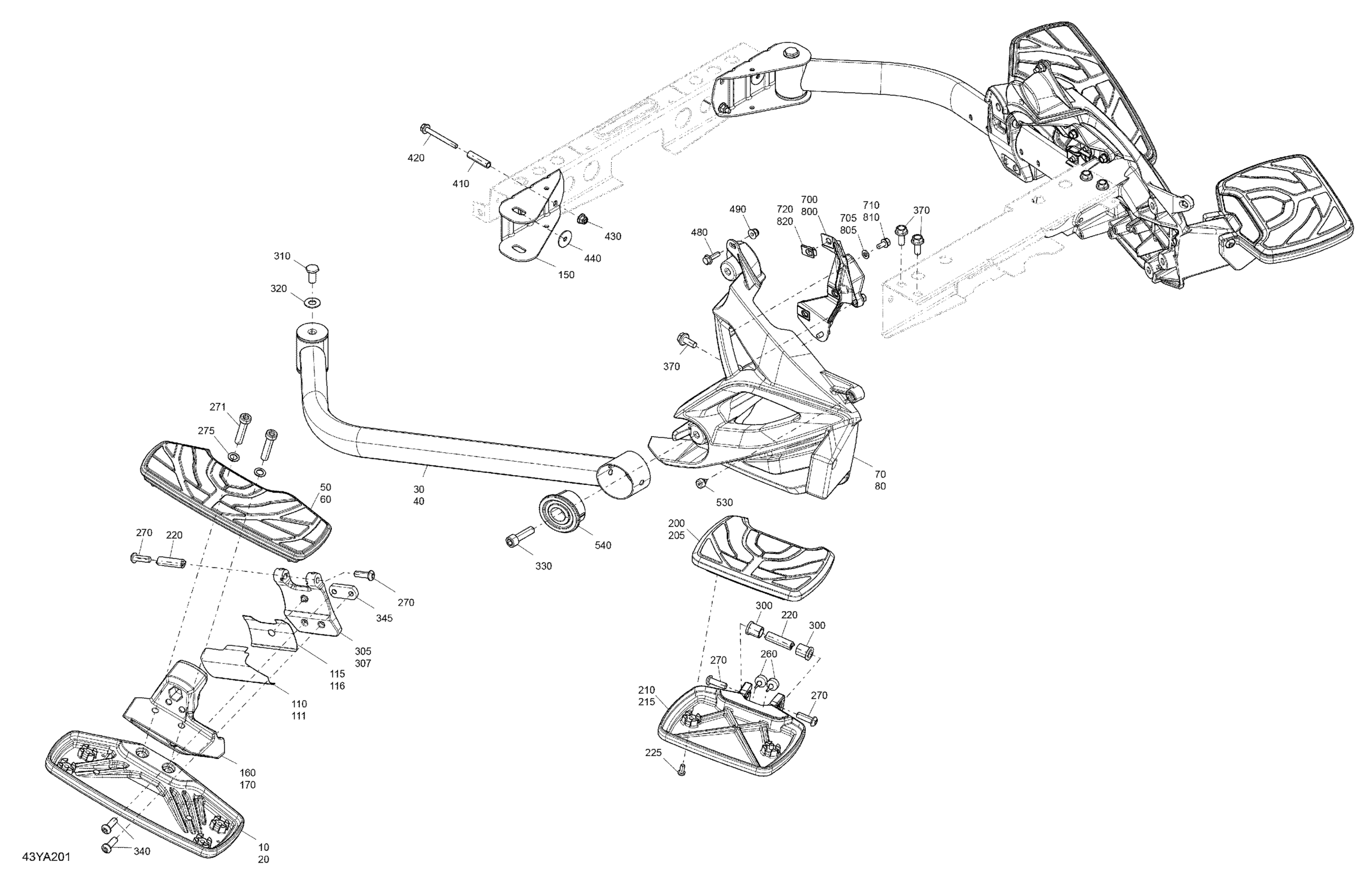

Can-Am F3 LIMITED - Dark Edition - Barely Blue, 2021 Frame - Footrest Diagram

#

Description
Price

10

LH Foot Board | Includes 10 to 10b

705009454

$109.99

20

RH Foot Board | Includes 20 to 20b

705009455

$109.99

30

Carbon Black, LH Footrest Support | Includes 30 to 30b

705008955

$119.99

40

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$119.99

50

LH Footrest Pad

705015846

$66.99

60

RH Footrest Pad

705015847

$66.99

70

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$409.99

80

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$389.99

110

LH Outer Protective Film

705014178

$9.21

111

RH Outer Protective Film

705014179

$10.43

115

RH Inner Protective Film

705014175

$6.50

116

LH inner Protective Film

705014174

$6.50

150

Tube Support | Includes 150 to 150a

705008950

$22.99

160

Carbon Black, LH Slider Outside | Includes 160 to 160b

705009466

$64.99

170

Carbon Black, RH Slider Outside | Includes 170 to 170b

705009463

$62.99

200

Foot Board Pad, Passenger

705009234

$53.99

205

Foot Board Pad, Passenger

705009234

$53.99

210

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$109.99

215

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$109.99

220

Pivot Pin | Includes 220 to 220

705013628

$17.82

225

Allen Plastite Screw #12

250000099

$2.19

260

Rubber Stopper

708000759

$4.19

270

Socket Head Screw M8 X 25

250000830

$1.90

271

Thin Socket Screw, Scotch Grip, M10

250000997

$6.77

275

Stainless Flat Washer, 10 mm

250200105

$2.11

300

Spacer Bushing

705008166

$5.59

305

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$39.99

307

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$39.99

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

320

Washer

506152582

$4.55

330

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

340

Socket Head Screw M8 X 25

250000830

$1.90

345

Back Plate

705008553

$24.99

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

410

Spacer

705008219

$13.49

420

Hex. Flange Screw M6 X 60

250000778

$4.44

430

Hex. Flange Elastic Nut M6

233261466

$2.00

440

Washer M6

250200029

$2.50

480

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

490

Hex. Flange Elastic Nut M6

233261466

$2.00

530

Rubber Bumper

293830005

$8.09

540

Pivot Cap | Includes 540 to 540b

705010203

$27.99

700

LH Fairing Support

705008961

$16.49

705

Black, Flat Washer 6 mm

234061670

$1.25

710

Hex. Flange Screw M6 X 12

210261250

$1.90

720

Panel Nut M6 X 1.0

250100198

$2.11

800

RH Fairing Support

705008962

$16.49

805

Black, Flat Washer 6 mm

234061670

$1.25

810

Hex. Flange Screw M6 X 12

210261250

$1.90

820

Panel Nut M6 X 1.0

250100198

$2.11
