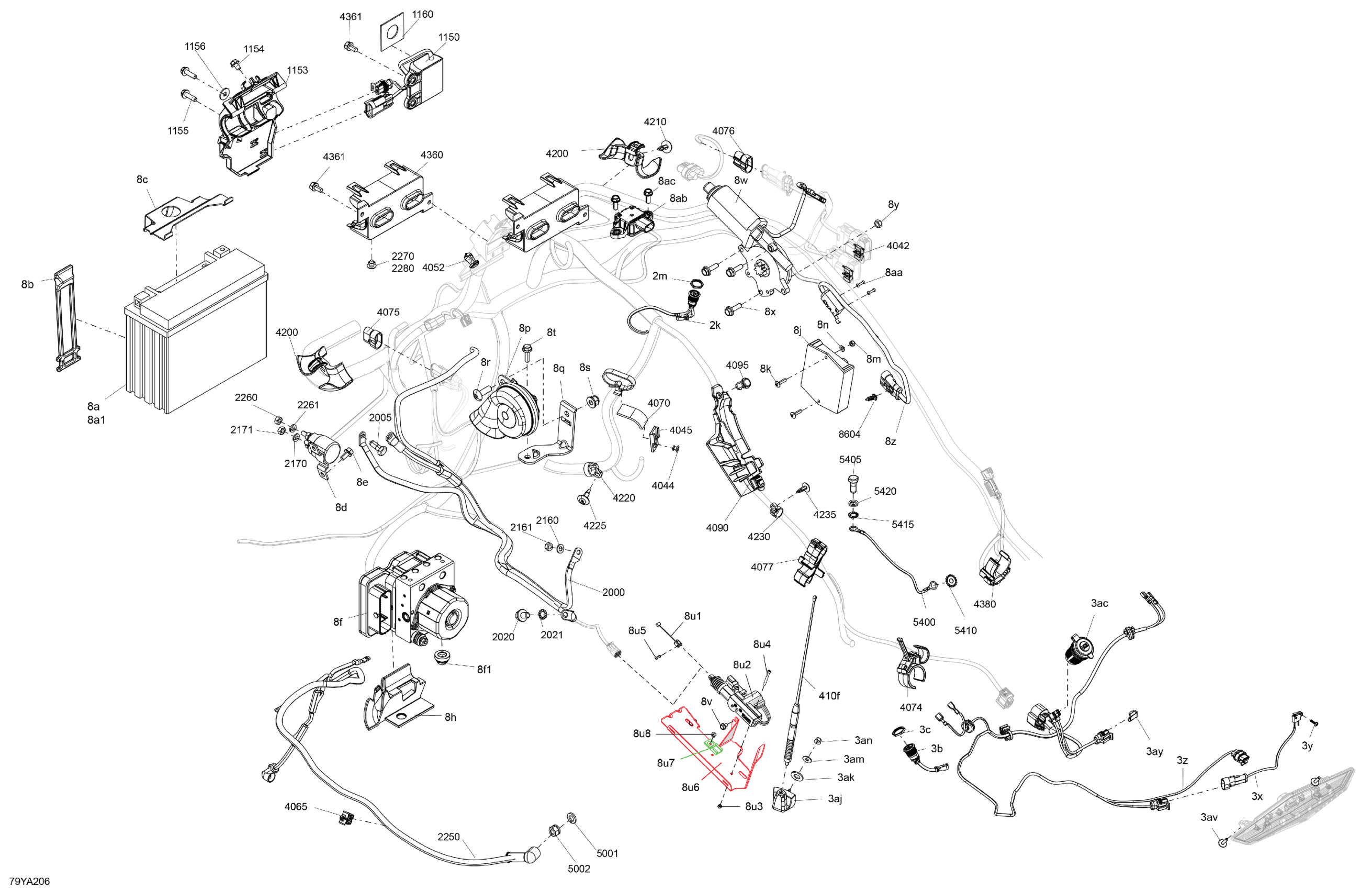

Can-Am F3 LIMITED - Chrome Edition - Liquid Titan, 2021 Electric - System Diagram

#

Description
Price

2e

Torx Truss Screw M6 X 16

250000721

Unavailable

2k

Switch

710004598

$132.00

2m

Nut

710004108

$6.00

3b

Switch

710004598

$132.00

3c

Nut

710004108

$6.00

3x

Open Detection

710005315

$19.00

3y

Screw-pt.flange Oval Hd.k30 X 12

250000614

Unavailable

3z

Upper Rear Box Wiring Harness

710007713

$54.00

3ac

USB Outlet

219400510

Unavailable

3aj

Antenna Support

710005631

$59.00

3ak

Flat Washer 10 mm

234001410

Unavailable

3am

Flat Washer 5 mm, Stainless

234052600

Unavailable

3an

Flange Elastic Nut M5

233251434

Unavailable

3av

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

3ay

Clip Bracket Connector (edge)

409210100

Unavailable

8a

Battery, 12 Volts, 21 Amperes

410922962

Unavailable

8a1

Battery Bolt Kit

250000282

Unavailable

8b

Latch

520000528

Unavailable

8c

Battery Holder

710002893

$17.00

8d

Starter Relay

710007777

Unavailable

8e

Hex. Flange Screw M6 X 12

210261250

Unavailable

8f

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,210.00

8f1

Shock Damper

710003279

Unavailable

8h

VCM Harness Protector

710003996

$3.00

8j

PBM Module Ass'y

710005887

$480.00

8k

Torx Screw M4 X 16

250000750

Unavailable

8m

Elastic Stop Nut M4

232541484

Unavailable

8n

Flat Washer 4 mm

234041480

Unavailable

8p

Horn

710004940

$29.00

8q

Horn Support

710005769

$16.00

8r

Torx Truss M8 X 25

250000874

Unavailable

8s

Hex. Flange Elastic Nut M8

233281414

Unavailable

8t

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

8u1

Reverse Cable

710002889

$32.00

8u2

Actuator

710011269

$65.00

8u3

Elastic Stop Nut M4

232541414

Unavailable

8u4

Socket Head Screw M4 X 40

205444056

Unavailable

8u5

Pop Rivet 5/32

390403000

Unavailable

8u6

Reverse Actuator Support

710005642

$31.00

8u7

Clip

270000141

Unavailable

8u8

Pop Rivet 3/16"

390402400

Unavailable

8v

Hex. Flange Screw M6 X 12

210261250

Unavailable

8w

Actuator Motor

710007256

$228.00

8x

Hex. Flange Screw M6 X 20

207662054

Unavailable

8y

Elastic Stop Nut M6

232561434

Unavailable

8z

Brake Pressure Switch Ass'y

710001379

Unavailable

8aa

Pop Rivet

293150150

Unavailable

8ab

Yaw Rate Sensor

710005658

Unavailable

8ac

Hex. Flange Screw M6 X 16

210261650

Unavailable

410f

Antenna

710005434

Unavailable

1150

Dess Module

710004916

$180.00

1153

Wire Support

710004308

$13.00

1154

Hex. Forming Screw M6 X 10

210261050

Unavailable

1155

Hexagonal Head Screw

210262050

Unavailable

1156

Flat Washer 6 mm

234062410

Unavailable

1160

Rubber Bumper

293830091

Unavailable

2000

Starter Cable Ass'y

710006399

$85.00

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

2021

Serrated Lock Washer 8 mm

234481608

Unavailable

2160

Stainless Flat Washer M6

234061600

Unavailable

2161

Elastic Stop Nut M6

232561434

Unavailable

2170

Lock Washer Helical M6

234161601

Unavailable

2171

Hex. Nut M6

232061600

Unavailable

2250

Pos Cable

710005026

$85.00

2260

Hex. Nut M6

232061600

Unavailable

2261

Lock Washer Helical M6

234161601

Unavailable

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

Unavailable

2271

Hex. Nut M6

232061600

Unavailable

2272

Lock Washer Helical M6

234161601

Unavailable

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

Unavailable

2281

Hex. Nut M6

232061600

Unavailable

2282

Lock Washer Helical M6

234161601

Unavailable

4042

Lock

710001222

Unavailable

4044

Pop Rivet 3/16"

390402400

Unavailable

4045

Clip

270000141

Unavailable

4052

Tuflok Plastic Rivet

293150230

Unavailable

4065

Support Cable

293750083

Unavailable

4070

Rubber Pad

709000401

Unavailable

4074

Support

710004613

$8.00

4075

Connector Plug

710004901

$13.00

4076

Connector Plug

710004901

$13.00

4077

Wire Support

710004669

$7.00

4090

Harness Holder

710004794

$3.00

4095

Tuflok Plastic Rivet

293150230

Unavailable

4200

Harness Holder

710004931

$2.00

4210

Tuflock Phillips Plastic Screw

414745900

Unavailable

4220

Tie Rap

710004424

$6.00

4225

Tuflock Phillips Plastic Screw

414745900

Unavailable

4230

Tie Rap

710004424

$6.00

4235

Tuflock Phillips Plastic Screw

414745900

Unavailable

4360

Fuse Holder Support

710004472

Unavailable

4361

Hex. Flange Screw M6 X 12

210261250

Unavailable

4380

Cable Support

710004299

$4.00

5001

Lock Washer 8 mm, Stainless

234181601

Unavailable

5002

Hex. Nut M8

232081414

Unavailable

5400

Fuel Tank Cable

710006436

$19.00

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

Unavailable

5410

Lock Washer Serrated M6

250200041

Unavailable

5415

Serrated Lock Washer 8 mm

234481608

Unavailable

5420

Washer

250200111

Unavailable

8604

Connector Holder

710002033

Unavailable
