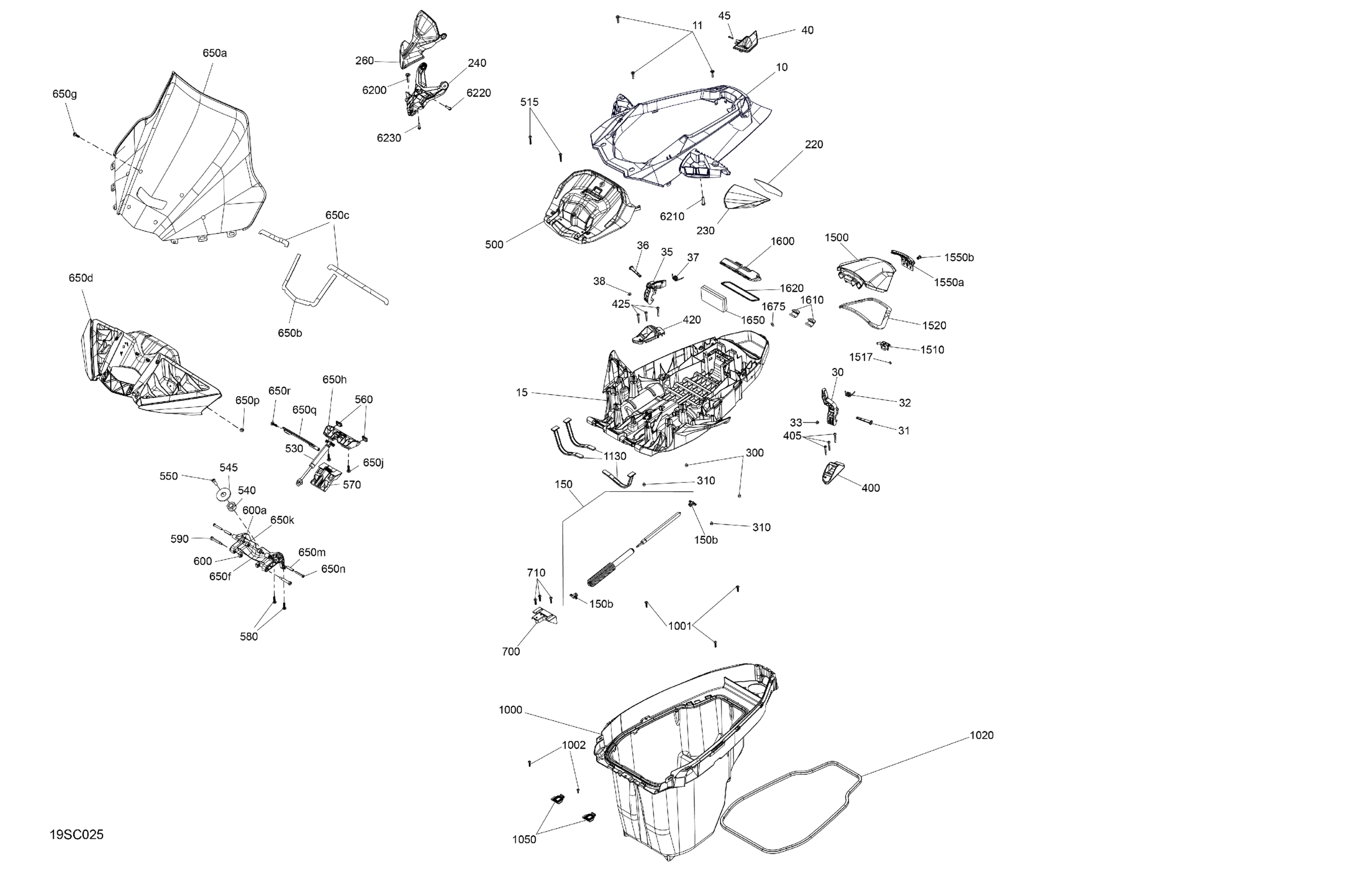

Sea-doo EXPLORER PRO 170, 2023 Body - Front Cover Diagram

#

Description
Price

10

Perforated Upper Hood | Includes 10 to 10a

269502481

$155.32

11

Hexagonal Cap Screw M6 X35

250000399

$3.61

15

Inner Skin

269502555

$131.92

30

LH Latch

269502267

$24.02

31

Pin

269502536

$14.90

32

Latch Spring

269502268

$20.77

33

Rubber Bumper

293830005

$5.33

35

RH Latch

269502299

$24.02

36

Pin

269502536

$14.90

37

Latch Spring

269502268

$20.77

38

Rubber Bumper

293830005

$5.33

40

DESS Key Support

277002322

$11.40

45

Plastite Torx Screw #10 X 7/8"

250001196

$3.19

150

Shock Absorber Assembly | Includes 150 to 150b

269502426

$78.62

150b

Shock Absorber End Fitting

269501984

$8.88

220

LH Mirror Glass

269502274

$72.12

230

Deep Black, LH Mirror Cover

269502427

$43.52

240

Echo Sounder Support

269502551

$180.02

260

Deep Black, Echosounder Deflector

269502375

$87.07

300

Rubber Bumper

293830005

$5.33

310

Rubber Bumper

293830005

$5.33

400

LH Latch Base

269502385

$13.62

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

420

RH Latch Base

269502386

$13.62

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

500

Upper Windshield Trim

269502450

$29.22

515

Plastite Torx Screw Cone HD. M6.81X

250001144

$3.95

530

Shock Absorber HPG

269502505

$147.73

540

Hex. Elastic Nut M8 Brass

232581200

$1.29

545

Flat Washer 8 mm, Stainless

234082600

$1.98

550

Torx Screw M8 X 30

250001225

$8.76

560

Rubber Stopper

269801254

$6.18

570

Molded Guide

269801253

$11.72

580

Torx Screw Plastite M6

250000466

$5.62

590

Socket Head Screw M6 X 50

250001230

$11.94

600

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

600a

Elastic Stop Nut M6, Brass

232561200

$3.51

650a

Windshield Ass'y

269801275

$347.73

650b

Joint

269502526

$9.24

650c

Joint

269502529

$9.24

650d

Windshield Support

269801090

$62.66

650f

Central Pivot Arm

269801117

$55.19

650g

Plastite Torx Screw M6.81X25

250001231

$1.61

650h

Windshield Latch

269801251

$17.13

650j

Plastite Torx Screw M6.81X25

250001231

$1.61

650k

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

650m

Socket

269801250

$8.88

650n

Socket Screw M6 X 40

205464060

$1.85

650p

Rubber Bumper

293830005

$5.33

650q

Air Deflector

269801309

$33.55

650r

Plastite Torx Screw M6.81X25

250001231

$1.61

700

Shock Base

269502282

$20.12

710

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1000

Bin Compartment

264000144

$95.52

1001

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1002

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1020

Gasket

293250478

$10.34

1050

Adjustment Hook

269502325

$7.15

1130

Strap

269502493

$11.53

1500

Glove Box Door

264000132

$51.32

1510

Glove Box Latch

264000133

$15.57

1517

Screw K40 X 10

250001119

$1.64

1520

Cover Gasket

293250717

$23.37

1550a

Glove Box Trim

269502538

$14.92

1550b

Tuflok Plastic Rivet

293150230

$1.21

1600

Box Cover

264000158

$10.21

1610

Clip

269501718

$12.97

1620

Gasket

293250591

$12.60

1650

Sealed Compartment Foam

264000135

$9.22

1675

Vent Membrane

264000137

$9.04

6200

Hexagonal Cap Screw M6 X35

250000399

$3.61

6210

Hex. Screw 10-14 X 7/8”

211000023

$2.91

6220

Hex. Screw 10-14 X 7/8”

211000023

$2.91

6230

Hex. Screw 10-14 X 7/8”

211000023

$2.91
