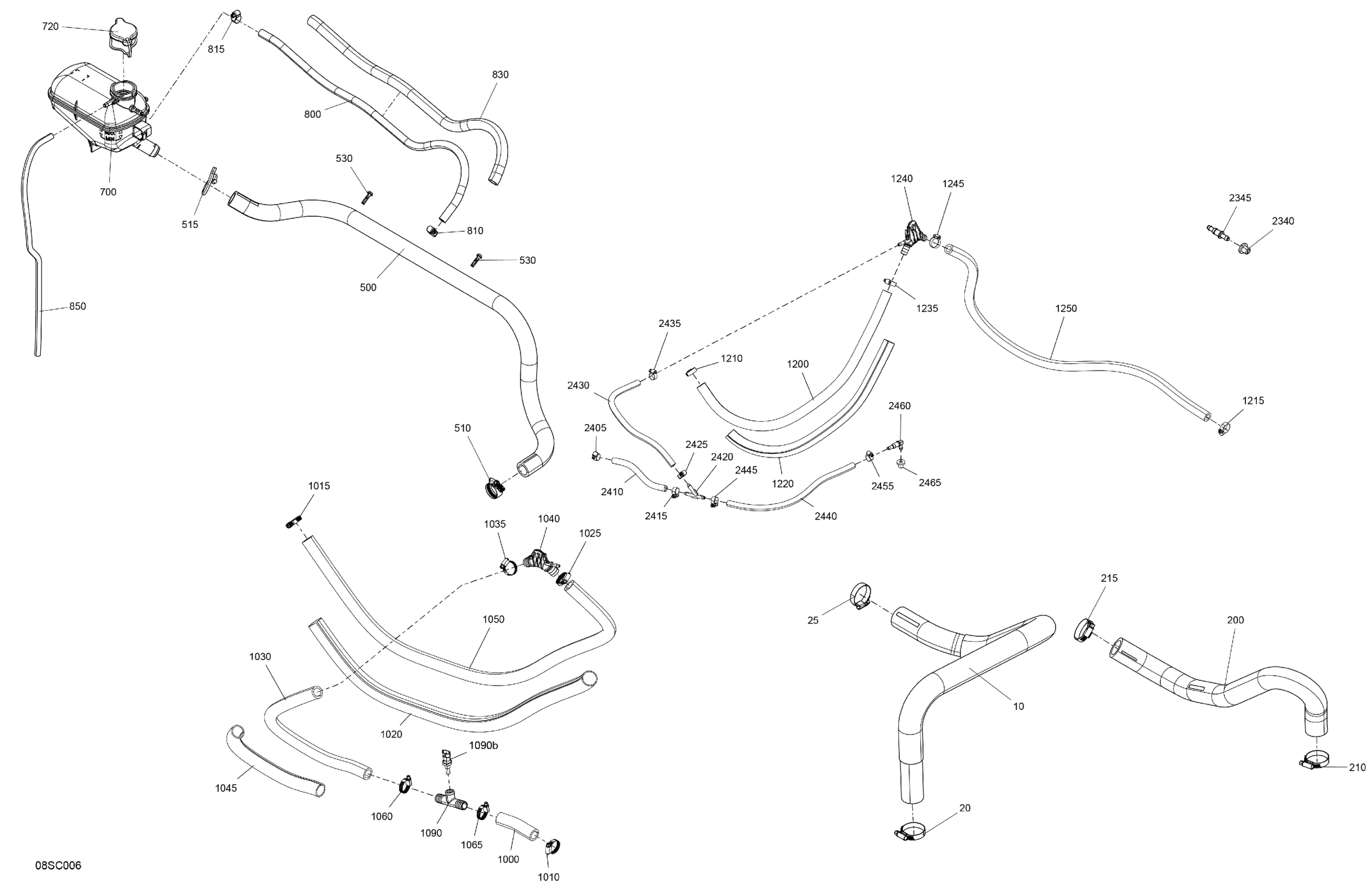

Sea-doo EXPLORER PRO 170, 2023 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$70.49

20

Norma Clamp

293650245

$14.99

25

Norma Clamp

293650245

$14.99

200

Formed Hose

276000517

$56.99

210

Norma Clamp

293650245

$14.99

215

Norma Clamp

293650245

$14.99

500

Coolant Tank Hose

276000523

$39.99

510

Tridon Gear Clamp

293650019

$5.82

515

Spring Clamp

293650115

$3.09

530

Hex. Flange Screw K50 X 20

241152060

$1.99

700

Coolant Tank

276000419

$119.99

720

Pressure Cap | Includes 720 to 720a

276000100

$25.99

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

810

Tridon Gear Clamp

293650170

$1.99

815

Tridon Gear Clamp

293650170

$1.99

830

Was 409901800 Tubing (13 mm)

219704400

$14.49

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

1000

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1010

Tridon Gear Clamp

293650051

$4.19

1015

Tridon Gear Clamp

293650051

$4.19

1020

Tubing 25 MM 1000MM Long

219704402

$15.99

1025

Tridon Gear Clamp

293650051

$4.19

1030

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1035

Tridon Gear Clamp

293650051

$4.19

1040

Fitting

276000547

$5.19

1045

Tubing 25 MM 1000MM Long

219704402

$15.99

1050

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

1060

Tridon Gear Clamp

293650051

$4.19

1065

Tridon Gear Clamp

293650051

$4.19

1090

Sensor Ass'y | Includes 1090 to 1090b

293710143

$63.99

1090b

Temperature Sensor

278002895

$39.99

1200

Was 276000001 Hose 12.5 mm

219704394

$51.99

1210

Tridon Gear Clamp

293650172

$3.09

1215

Tridon Gear Clamp

293650172

$3.09

1220

Was 515175319 Tubing 22 mm

219704423

$14.99

1235

Tridon Gear Clamp

293650172

$3.09

1240

Fitting

276000548

$5.19

1245

Tridon Gear Clamp

293650172

$3.09

1250

Was 276000001 Hose 12.5 mm

219704394

$51.99

2340

Grommet

293720029

$1.59

2345

Straight Fitting

293710133

$14.75

2405

Tridon Gear Clamp

293650170

$1.99

2410

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

2415

Tridon Gear Clamp

293650170

$1.99

2420

Y-Fitting

293710059

$9.69

2425

Tridon Gear Clamp

293650170

$1.99

2430

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

2435

Tridon Gear Clamp

293650170

$1.99

2440

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$33.99

2445

Tridon Gear Clamp

293650170

$1.99

2455

Tridon Gear Clamp

293650170

$1.99

2460

Elbow Male Connector

414580600

$4.23

2465

Grommet

293720029

$1.59
