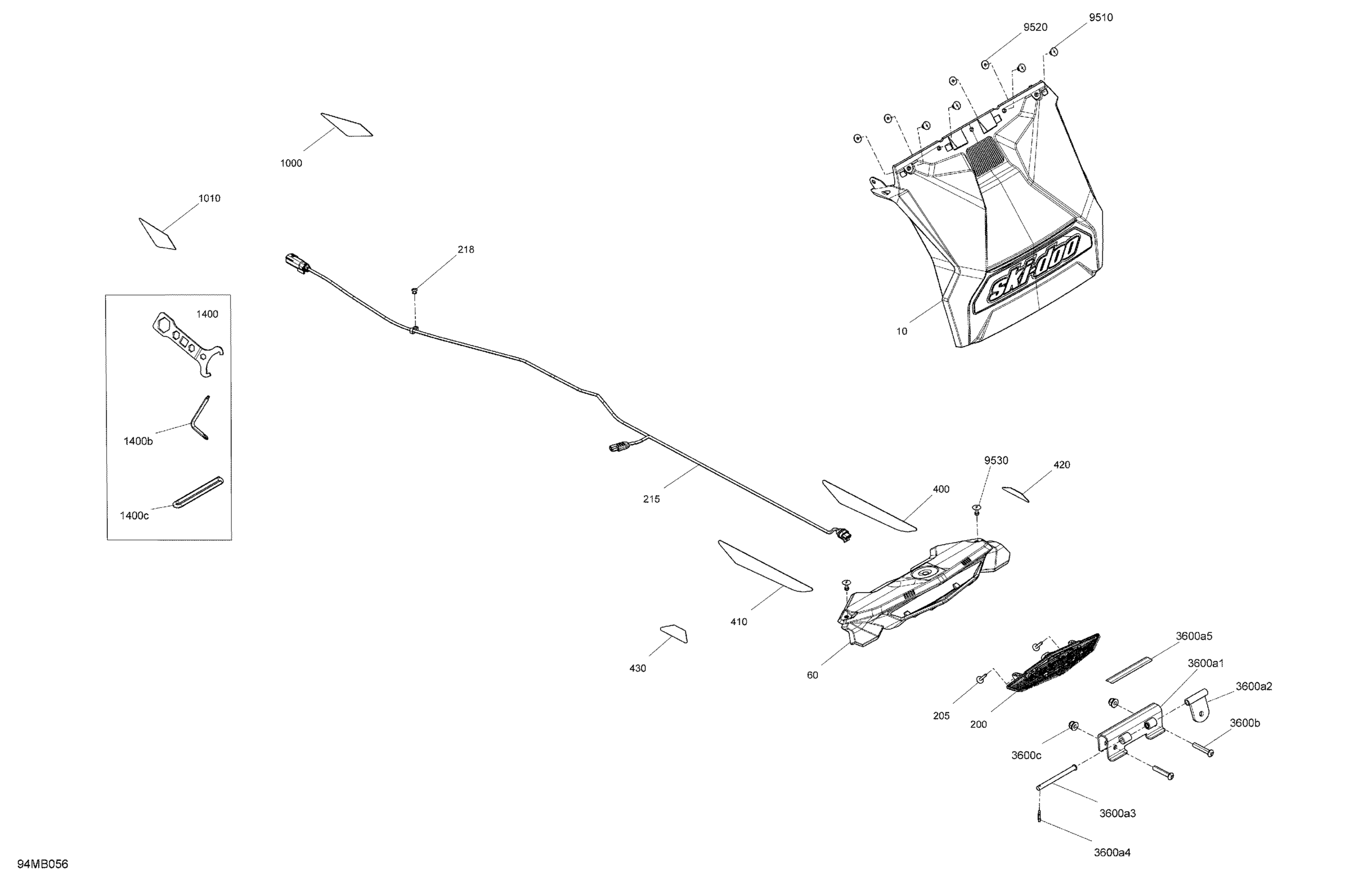

Ski-Doo EXPEDITION SPORT 600 EFI - 2022 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$128.33

Light Fairing

520001487

$18.63

200

Rear Light

520001143

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

215

Rear Light Harness

515178822

$55.19

218

Pop Rivet 3/16"

390402200

$0.30

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

420

Red, RH Rear Reflector

520001842

$4.51

430

Red, LH Rear Reflector

520001860

$4.51

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400b

Key

520001815

$11.99

1400c

Rope Starter

529017500

$1.19

3600a1

Support

511000768

$28.33

3600a2

Hitch Plate Welded

511000521

$14.10

3600a3

Lock Pin

511001451

$8.31

3600a4

Cotter Pin

371800200

$0.49

3600a5

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

3600c

Elastic Flange Nut M8

233281466

$0.96

9510

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

9520

Washer

517124300

$0.18

9530

Pop Rivet 3/16"

293150100

$1.04
