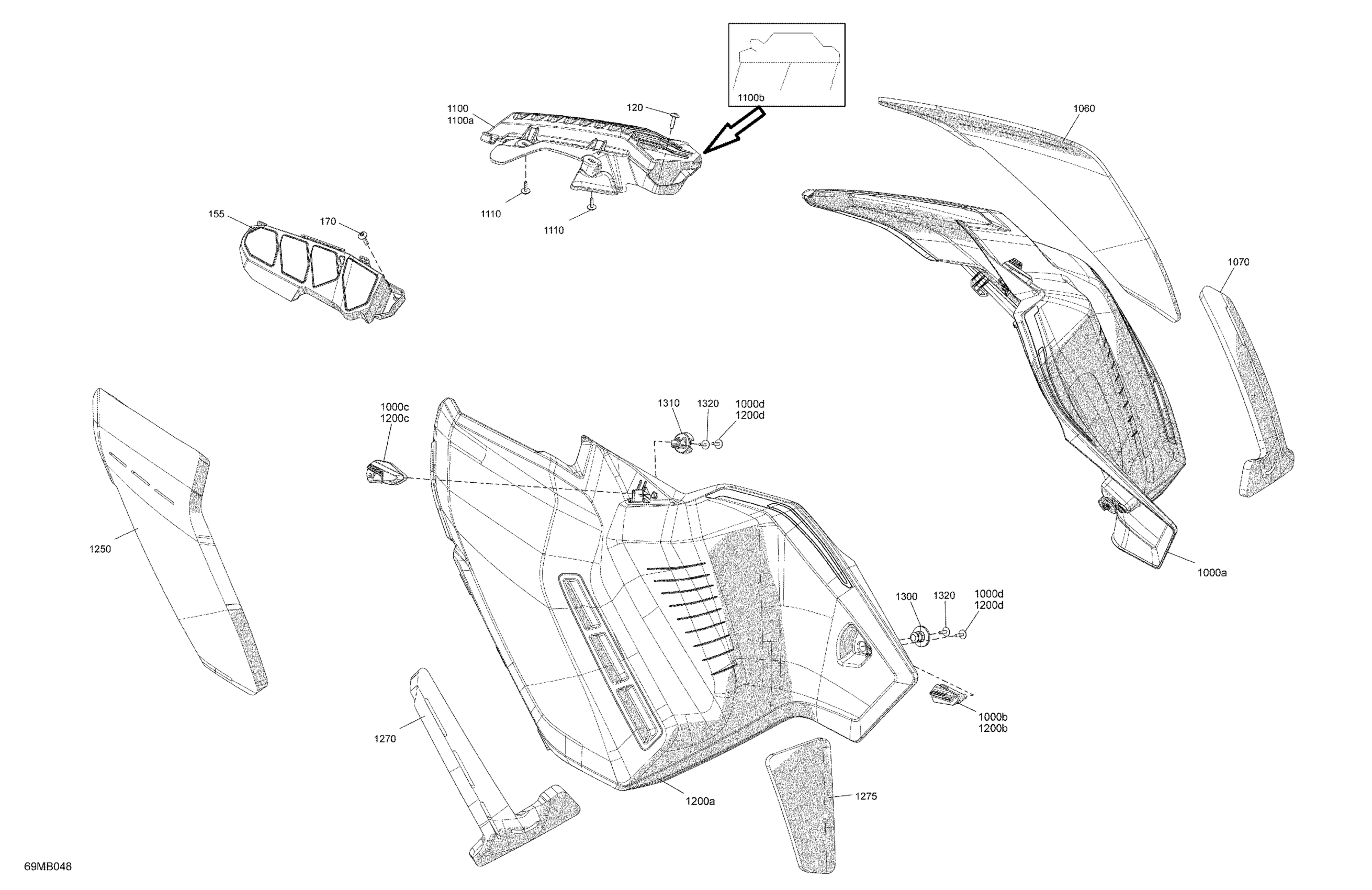

Ski-Doo EXPEDITION SPORT 600 EFI - 2022 Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.00

155

LH Hood Trim

517306690

$28.33

170

Torx Screw M5 X 20

250000528

$2.00

1000a

Deep Black, RH Panel

517306748

$163.40

1000b

RH Rear Latch

517305773

$13.79

1000c

RH Front Latch

517305979

$13.46

1000d

Screw M4 X 16

250000725

$3.30

1060

RH Front Panel Foam

517306843

$13.22

1070

RH Rear Panel Foam

517306845

$13.22

1100

RH Hood Grille Ass'y

517308292

$73.10

1100a

RH Hood Grille Ass'y

517308292

$73.10

1100b

Foil Kit | Not Shown

517308274

$4.03

1100c

Rubber Sheet

517307700

$17.13

1110

Screw M4 X 16

250000725

$3.30

1200a

Deep Black, LH Body Panel

517306750

$164.90

1200b

LH Rear Latch

517305774

$13.79

1200c

LH Front Latch

517305980

$13.79

1200d

Screw M4 X 16

250000725

$3.30

1250

LH Front Panel Foam

517306863

$13.22

1270

LH Rear Panel Foam

517306865

$13.22

1275

LH Rear Panel Foam

517306496

$5.33

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1320

Screw M4 X 16

250000725

$3.30
