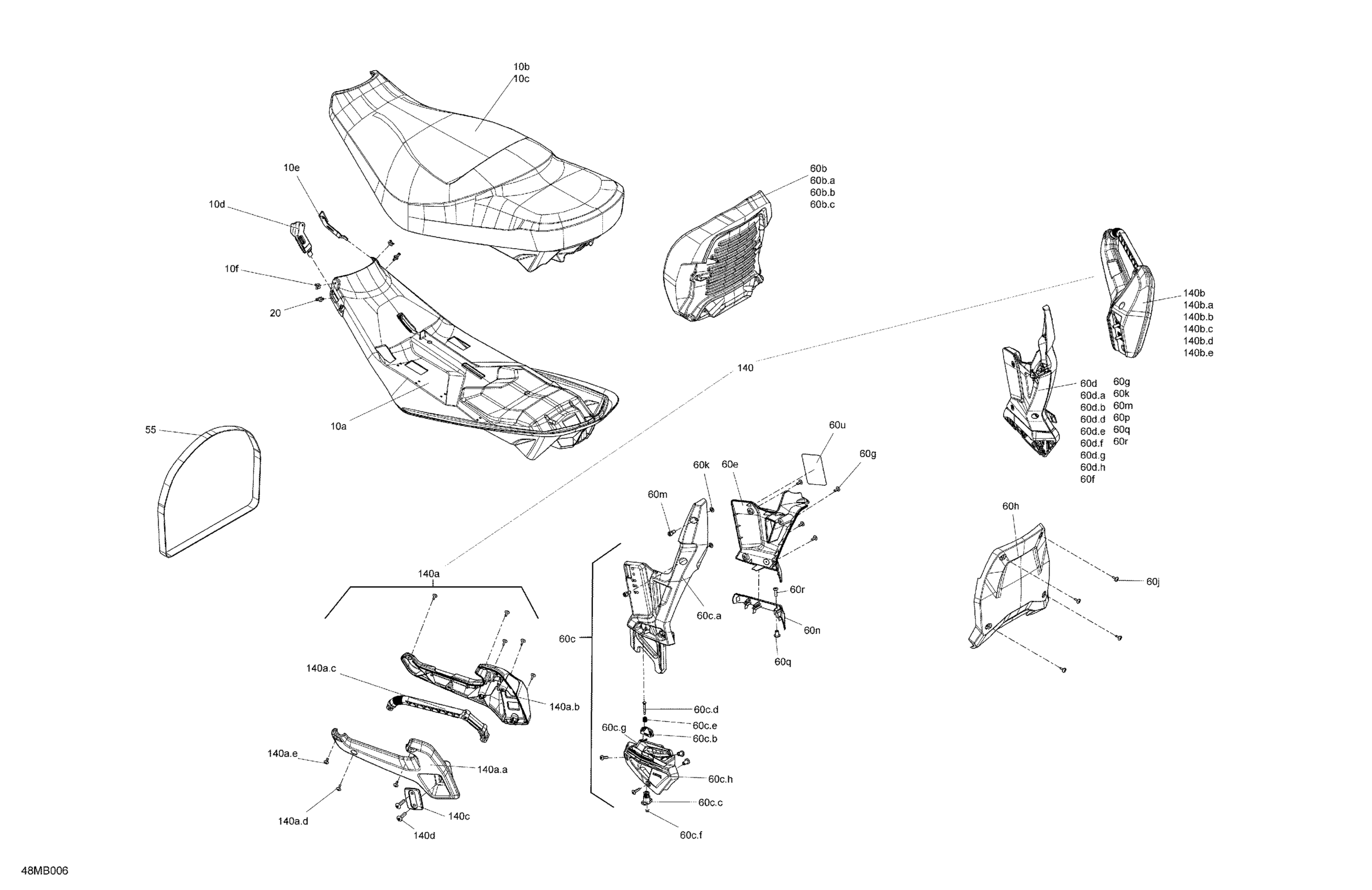

Ski-Doo EXPEDITION SPORT 600 EFI - 2022 Body - Seat Diagram

#

Description
Price

10a

1+1 Seat Base

510006556

$88.43

10b

Seat Foam

510006336

$203.05

10c

Seat Cover

510006337

$230.74

10d

LH Seat Latch

510006530

$7.29

10e

RH Seat Latch

510006531

$7.29

10f

Pop Rivet 3/16"

293150222

$1.00

20

Seat Pin

510007411

$6.20

55

1+1 Seat Strap

510006159

$40.74

60b

Passenger Backrest | Includes 60b to 60b.c

510006362

$169.99

60b.a

Backrest Foam

510006363

$207.66

60b.b

Backrest Cover

510006364

$226.12

60b.c

Backrest Support

510006777

$45.35

60c

LH Backrest Support Ass'y | Includes 60c to 60c8

510007208

$233.05

60c.a

LH Backrest Support

510007210

$51.51

60c.b

LH Lever | Package Hunter

708200373

$4.60

60c.c

LH Latch | Package Hunter

708200266

$3.09

60c.d

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

60c.e

Spring | Package Hunter

708200263

Unavailable

60c.f

Elastic Flange Nut M5

233251494

$1.74

60c.g

LH Cap

510005617

$15.35

60c.h

LH Base

510006939

$26.12

60d

RH Backrest Support Ass'y | Includes 60d to 60d8

510007209

$233.05

60d.a

RH Backrest Support

510007212

$51.51

60d.b

RH Lever

708200374

$3.25

60d.d

STEM - Call your local BRP dealership | Package Hunter

708200152

Unavailable

60d.e

Spring | Package Hunter

708200263

Unavailable

60d.f

Elastic Flange Nut M5

233251494

$1.74

60d.g

RH Cap

510005618

$15.35

60d.h

RH Base

510006940

$26.12

60e

LH Trim

510006704

$19.20

60f

RH Trim

510006705

$19.20

60g

Torx Truss M6X14

250000789

$4.41

60h

Backrest Trim

510006366

$76.89

60j

Screw M4 X 16

250000889

$2.46

60k

Flat Washer M8, Stainless

234080600

$1.25

60m

Screw-Socket HD.DIN.912

205081654

$1.85

60n

LH Base Cover

510006169

$3.82

60p

RH Base Cover

510006170

$3.82

60q

Threaded Insert

511000822

$1.78

60r

Torx-Truss M/S M6 X 25

250001000

$4.33

60s

Dart

293730062

$1.63

60t

Dart | Not Shown

293730039

$1.55

60u

1+1 Decal

516005612

Unavailable

140

Passanger Hand Hold Kit | Includes 140 to 140d

510006510

$189.20

140a

LH Passenger Hand Hold Ass'y | Includes 140a to 140a5

510006515

$179.20

140a.a

LH Ext. Passenger Hand Hold

510006492

$66.12

140a.b

LH Int. Passenger Hand Hold

510006517

$66.12

140a.c

Passenger Overmolded Handhold

510006551

$66.12

140a.d

Screw M4 X 16

250000889

$2.46

140a.e

Torx-Truss M/S M5 X 14

250000941

$2.06

140b

RH Passenger Hand Hold Ass'y | Includes 140b to 140b5

510006516

$179.20

140b.a

RH Ext. Passenger Hand Hold

510006486

$66.12

140b.b

RH Int. Passenger Hand Hold

510006487

$66.12

140b.c

Passenger Overmolded Handhold

510006551

$66.12

140b.d

Screw M4 X 16

250000889

$2.46

140b.e

Torx-Truss M/S M5 X 14

250000941

$2.06

140c

Passenger Handle Trim

510006602

$11.71

140d

Torx Truss M/S M8 x 35

250000753

$0.91
