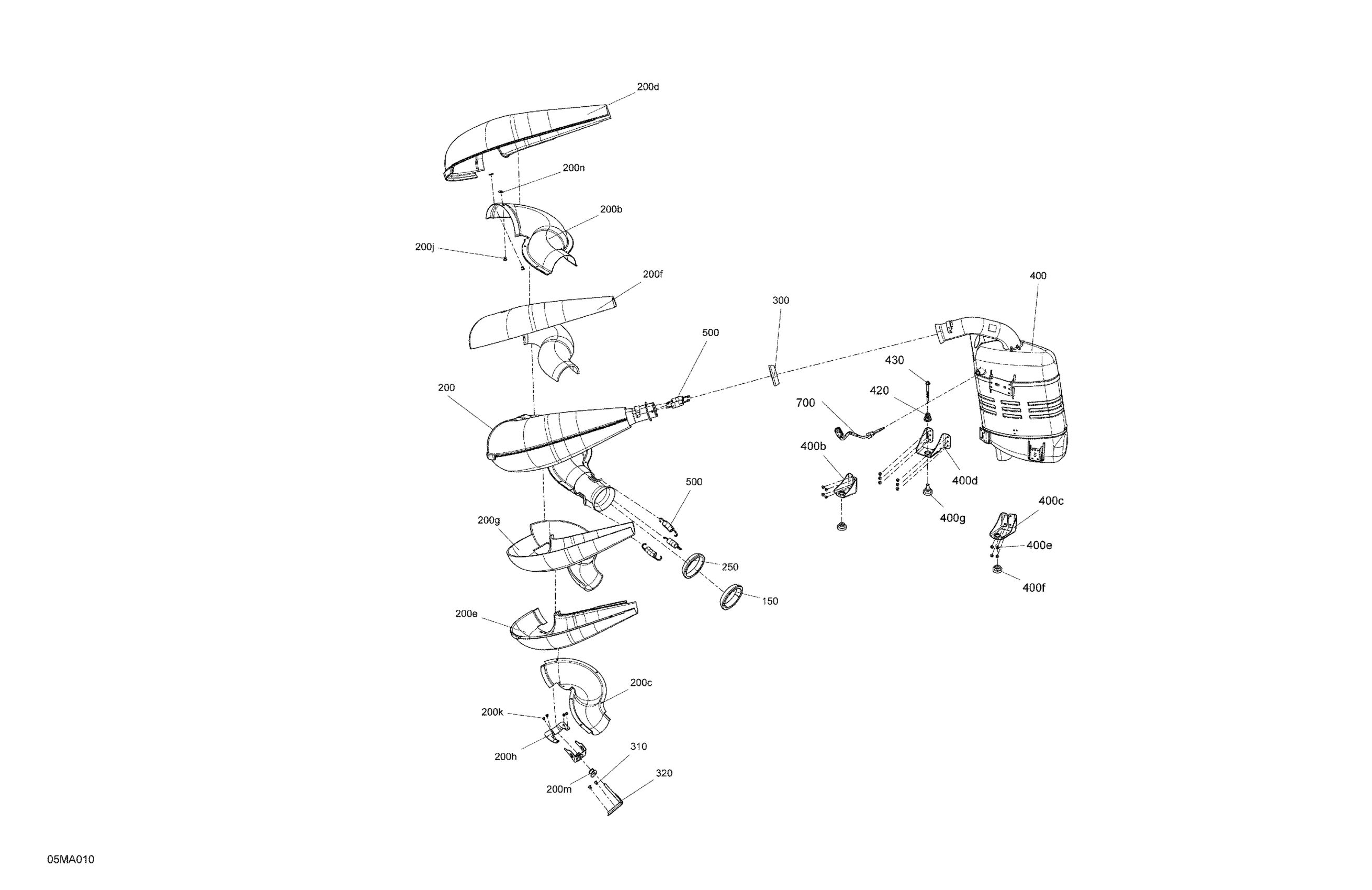

Ski-Doo EXPEDITION SPORT 600 EFI - 2022 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.12

200

Tuned Pipe | Includes 200 to 200p

514056320

$655.35

200b

Front Upper Aluminum Shell

514055222

$41.51

200c

Shell

514056282

$36.89

200d

Rear Upper Aluminum Shell

514055859

$77.66

200e

Rear Lower Aluminum Shell

514056141

$77.66

200f

Insulated Wool

514055715

$19.20

200g

Glass Wool

514056352

$7.60

200h

Plate

514055844

$5.29

200j

Avex Rivet

390909200

$0.29

200k

Avex Rivet

390909200

$0.29

200m

Rubber

514055632

$2.75

200n

Washer 3/16

514055537

$0.98

250

Seal

514055965

$18.43

300

Exhaust Gasket

514055294

$24.58

310

Hemlock Rivet, 6.5 mm

293150119

$4.00

320

Support

514055214

$9.55

400

Muffler Ass'y | Includes 400 to 400g

514055942

$738.43

400b

Front Muffler Support

514056022

$5.23

400c

Rear Muffler Support

514056038

$5.23

400d

Muffler Support

514056024

$17.66

400e

Pop Rivet 3/16"

390402200

$0.26

400f

Stopper

514055203

$19.20

400g

Stopper Ass'y

514056138

$12.58

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83

500

Spring

514055198

$6.20

700

Exhaust Temperature Sensor

514055888

$141.51
