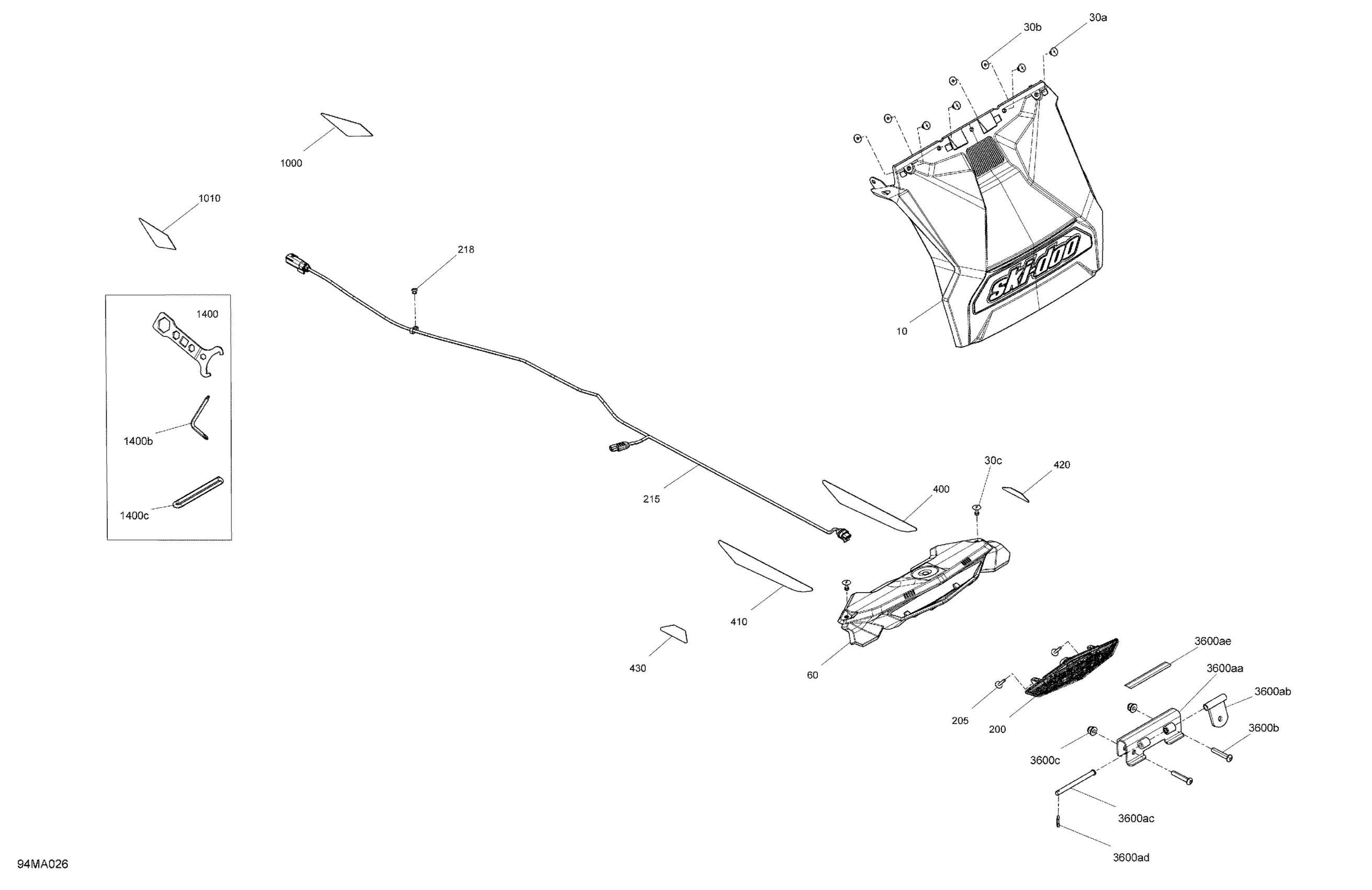

Ski-Doo EXPEDITION SPORT 600 EFI - 2021 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$132.28

30a

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

30b

Washer

517124300

$0.16

30c

Pop Rivet 3/16"

293150100

$1.08

Light Fairing

520001487

$19.20

200

Rear Light

520001143

$76.89

205

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

215

Rear Light Harness

515178822

$56.89

218

Pop Rivet 3/16"

390402200

$0.26

400

Red, RH Rear Reflector

520001900

$16.89

410

Red, LH Rear Reflector

520001901

$16.89

420

Red, RH Rear Reflector

520001842

$4.65

430

Red, LH Rear Reflector

520001860

$4.65

1000

RH Front Reflector

520002343

$7.95

1010

LH Front Reflector

520002344

$9.97

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400b

Key

520001815

$11.99

1400c

Rope Starter

529017500

$1.19

3600aa

Support

511000768

$29.20

3600ab

Hitch Plate Welded

511000521

$14.54

3600ac

Lock Pin

511001451

$8.57

3600ad

Cotter Pin

371800200

$0.51

3600ae

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

3600c

Elastic Flange Nut M8

233281466

$0.83
