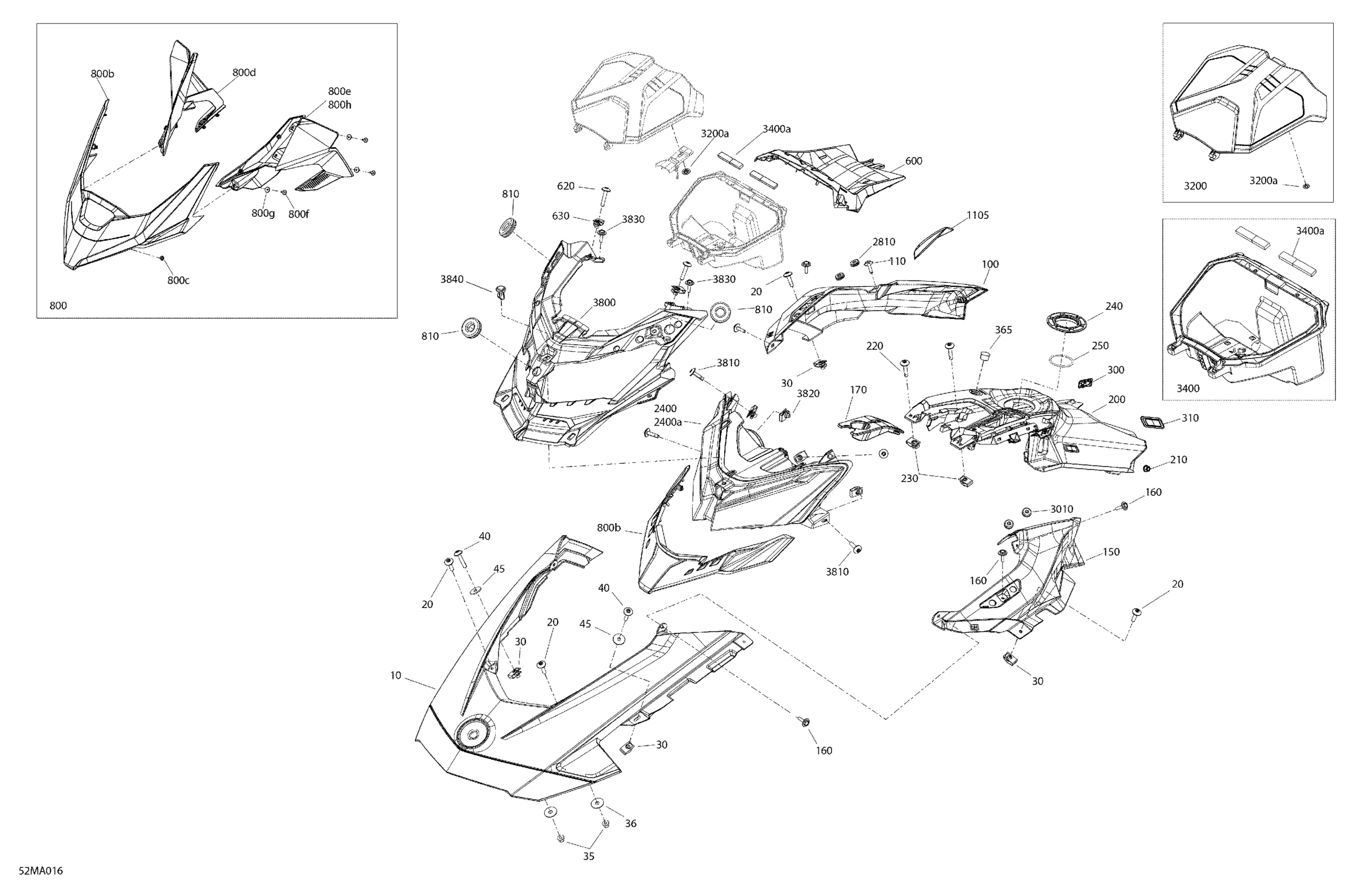

Ski-Doo EXPEDITION SPORT 600 EFI - 2021 Body - Hood Diagram

#

Description
Price

10

Deep Black, Front Hood

517307291

$214.99

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

35

Hex. Flange Nut M5

233151414

$0.55

36

Flat Washer

250200040

$1.90

40

Torx Screw M5 X 26

250000587

$4.44

45

Washer

250200166

$2.11

100

Sunburst Yellow, RH Hood

517306733

$209.99

110

Screw M4 X 16

250000725

$3.49

150

Sunburst Yellow, LH Hood

517306723

$209.99

160

Screw M4 X 16

250000725

$3.49

170

Console Pad

517307744

$17.99

200

Rear Console

517307686

$209.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

300

RH Cap

517306587

$1.39

310

LH Cap

517306588

$1.39

365

Cap

572051500

$5.89

600

Gauge Support

517307675

$35.99

620

Torx Screw M5 X 26

250000587

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

800

Windshield Ass'y 585MM | Includes 800 to 800j

517307326

$180.99

800b

Deep Black, Windshield Support

517306183

$41.99

800c

Push Nut

732610072

$2.19

800d

Deflector RH, Black 63% Light Transm.

517306063

$32.99

800e

Deflector LH, Black 63% Light Transm.

517306064

$32.99

800f

Screw M4 X 16

250000889

$3.09

800g

Rubber Washer 5 mm

250200024

$2.19

800h

Decal

516009227

Unavailable

810

Grommet

517303756

$4.09

1105

Heat Shield

517307667

$2.19

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

2810

Grommet

517307161

$2.79

3010

Grommet

517307161

$2.79

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200a

Push Nut

732610072

$2.19

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400a

Seal Joint

517305157

$2.39

3800

Deep Black, Headlamp Fairing

517305746

$64.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3830

Screw M4 X 16

250000725

$3.49

3840

Tuflok Plastic Rivet

293150230

$1.47
