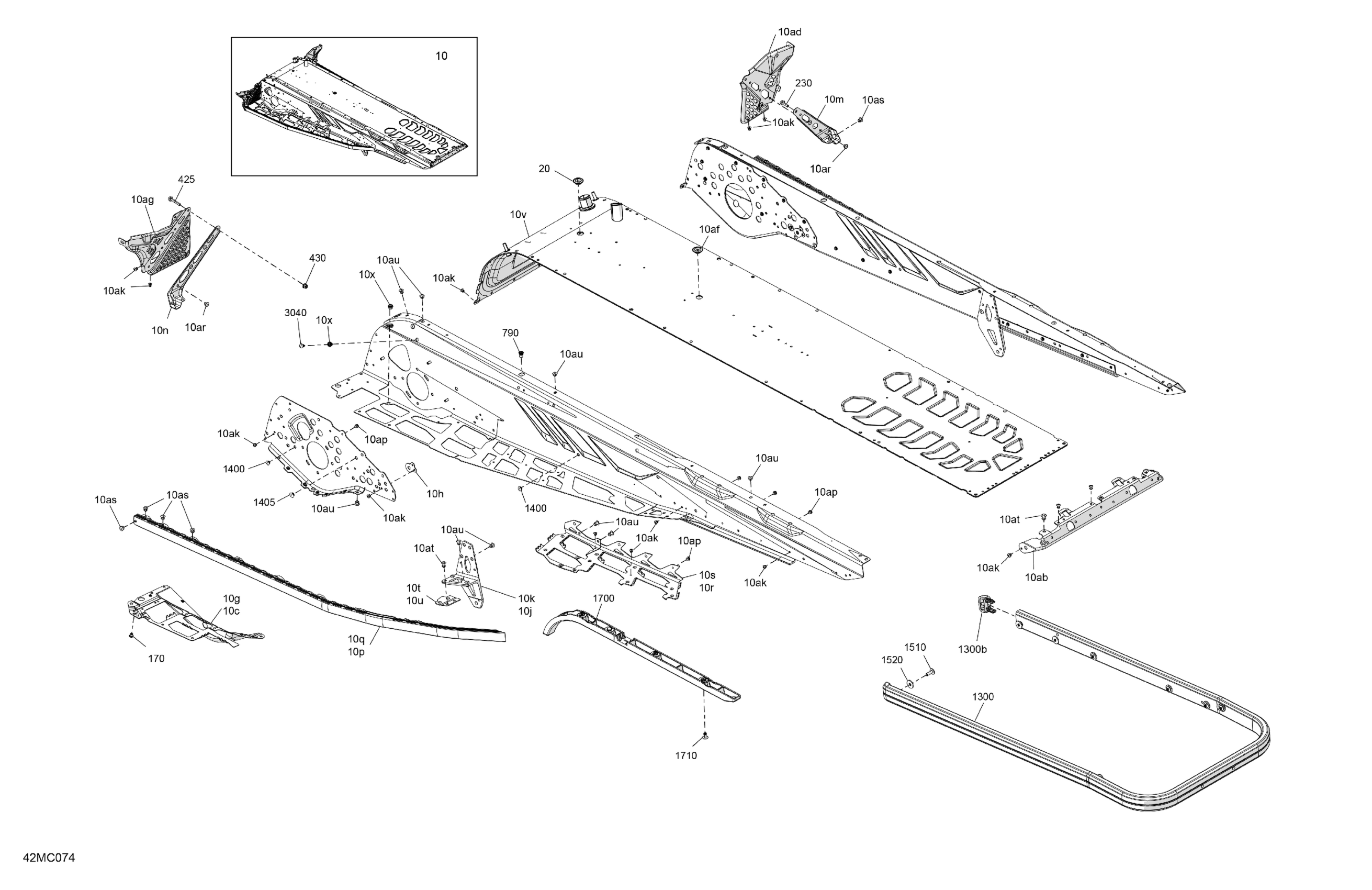

Ski-Doo EXPEDITION SPORT 600 EFI - (KAPA) - 2023 Frame - System - Rear Section Diagram

Chassis Tunnel Module 154 | Includes 10 to 10a39

415130857

$3.00

RH Footrest Reinforcement

518332578

$88.99

LH Footrest Reinforcement

518332577

$88.99

Front Suspension Arm Reinforcement

518335959

$4.19

RH Rear Suspension Support

518334407

$69.99

LH Rear Suspension Support

518334406

$69.99

Stirrup Reinforcement

518334507

$21.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

RH Central Tunnel Reinforcement

518331564

$35.99

LH Central Tunnel Reinforcement

518331565

$35.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Radiator Tunnel 154 Ass'y

518334491

$709.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518328990

$22.49

RH Footrest

518334509

$22.49

Black, Plug

293730052

$9.19

LH Foot Protector

518331559

$23.99

Rivet Avibulb 3/16

293150203

$2.09

Henrob Rivet

293150245

$1.69

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert

293450278

$4.49

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$148.99

Bumper Cap

520001629

$0.98

Full Moon Dart 8 mm

293730041

$2.21

Full Moon Dart 10 mm

293730059

$4.55

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Dart

293730079

$2.09
