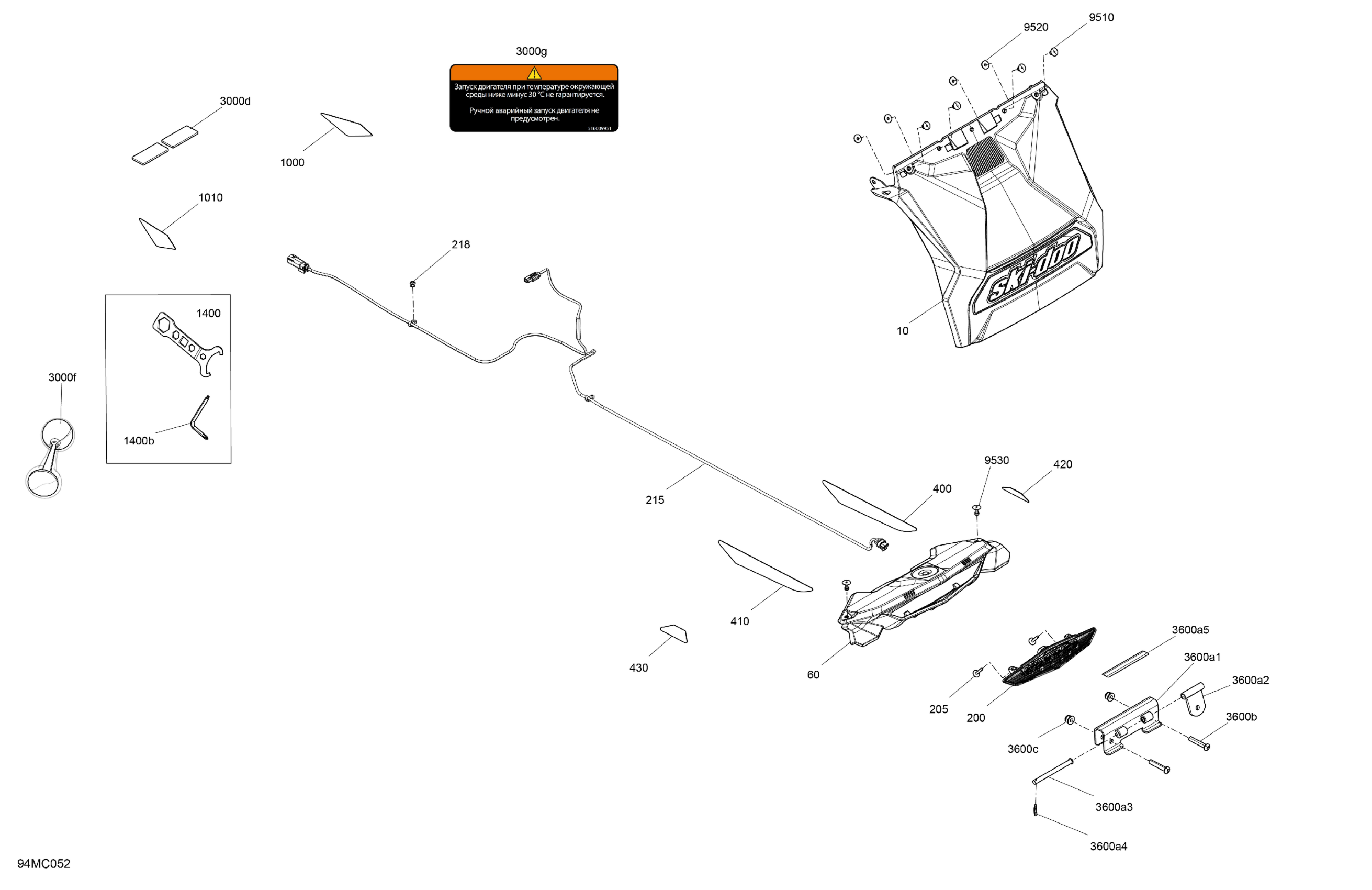

Ski-Doo 001 - EXPEDITION SPORT 600 ACE, Asia, 2023 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$137.49

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

215

Rear Light Harness

515178822

$55.99

218

Pop Rivet 3/16"

390402200

$0.35

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

420

Amber, LH Rear Reflector

520001862

$4.99

430

Amber, LH Rear Reflector

520001861

$4.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Red, Reflector

705015551

$9.59

3000d

Amber, Reflector

520002680

$20.99

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable

3600a1

Support

511000768

$31.99

3600a2

Hitch Plate Welded

511000521

$16.33

3600a3

Lock Pin

511001451

$9.49

3600a4

Cotter Pin

371800200

$0.53

3600a5

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45

205484566

$1.58

3600c

Elastic Flange Nut M8

233281466

$1.01

9510

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

9520

Washer

517124300

$0.19

9530

Pop Rivet 3/16"

293150100

$1.09
