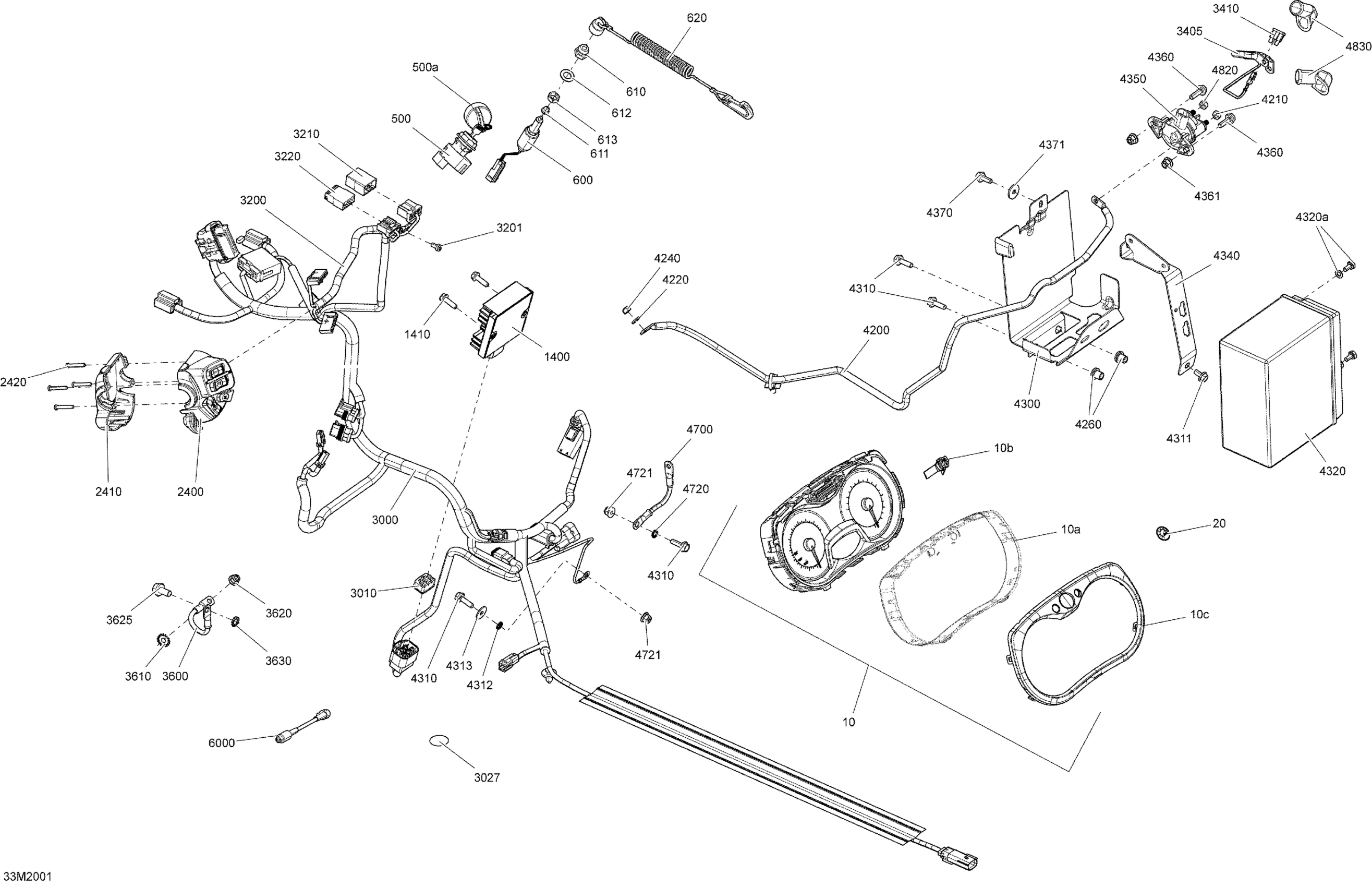

Ski-Doo EXPEDITION SPORT 550F - 2020 Electrical System Diagram

#

Description
Price

10

Indicator | Includes 10 to 10c

515177279

$519.37

10a

Lens | XTP

415129349

$22.36

10b

Speedometer Button | XTP

415129355

$13.52

10c

Gauge Ring

415129348

$11.36

20

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

500

Ignition Swirch

515177063

$47.73

500a

Blank Key

415129350

Unavailable

600

Brake Switch

515175653

$17.88

610

Switch Nut

515145900

$10.51

611

Plunger Cap

570151100

$9.13

612

Flat Washer

250200084

$3.16

613

RH Threaded Hex. Jam Nut M10

732610010

$0.70

620

Cap Ass'y

515178283

$36.54

1400

Voltage Regulator

515176699

$146.24

1410

Hex. Flange Screw M6 X 20

210262040

$2.00

2400

LH Housing

515177021

$208.18

2410

Switch Housing Plate

515175926

$17.13

2420

Torx Screw #8-18

250000263

$0.99

3000

Main Harness

515177979

$296.99

3010

Lock

515176681

$17.88

3027

Adhesive Patch

518325560

$4.21

3200

Steering Wiring Harness

515177609

$103.70

3201

Pan Screw Forming, 7500C

250000690

$2.00

3210

Male Terminal Housing, 8 Circuits

515175817

$8.31

3220

Male Terminal Housing, 6 Circuits

515175662

$8.31

3405

Fuse Battery Wire

515177576

$15.64

3410

Fuse, 30 Amperes

410917200

$3.12

3600

Ground Wire

515176745

$26.84

3610

Lock Washer Serrated M6

250200041

$1.06

3620

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3625

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

3630

Serrated Lock Washer 8 mm

234481608

$1.06

4200

Battery/Starter Wire

515177730

$28.33

4210

Elastic Stop Nut M6

232561414

$1.78

4220

Flat Washer 6 mm

234061410

$1.19

4240

Elastic Stop Nut M6

232561414

$1.78

4260

Insert

293450275

$11.36

4300

Battery Support

515177264

$29.07

4310

Hex. Flange Screw M6 X 20

207662044

$1.91

4311

Hex. Flange Screw M6 X 12

207661244

$1.96

4312

External Serrated Lock Washer 6 mm

234461608

$1.06

4313

Flat Washer

250200082

$0.40

4320

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

4320a

Battery Bolt Kit

250000282

$3.39

4340

Battery Strip

515177266

$14.90

4350

Starter Relay

278003012

$40.27

4360

Hex. Flange Screw M6 X 20

207662044

$1.91

4361

Elastic Flange Nut M6 X 1.0

233261416

$2.00

4370

Hex. Flange Screw M6 X 16

207661644

$0.70

4371

Flat Washer

224061201

$1.27

4700

Ground Wire

515176358

$25.34

4720

Lock Washer Serrated M6

250200041

$1.06

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4820

Elastic Stop Nut M6

232561414

$1.78

4830

Protector Cap

710000495

$9.84

6000

Extension

515175851

$10.55
