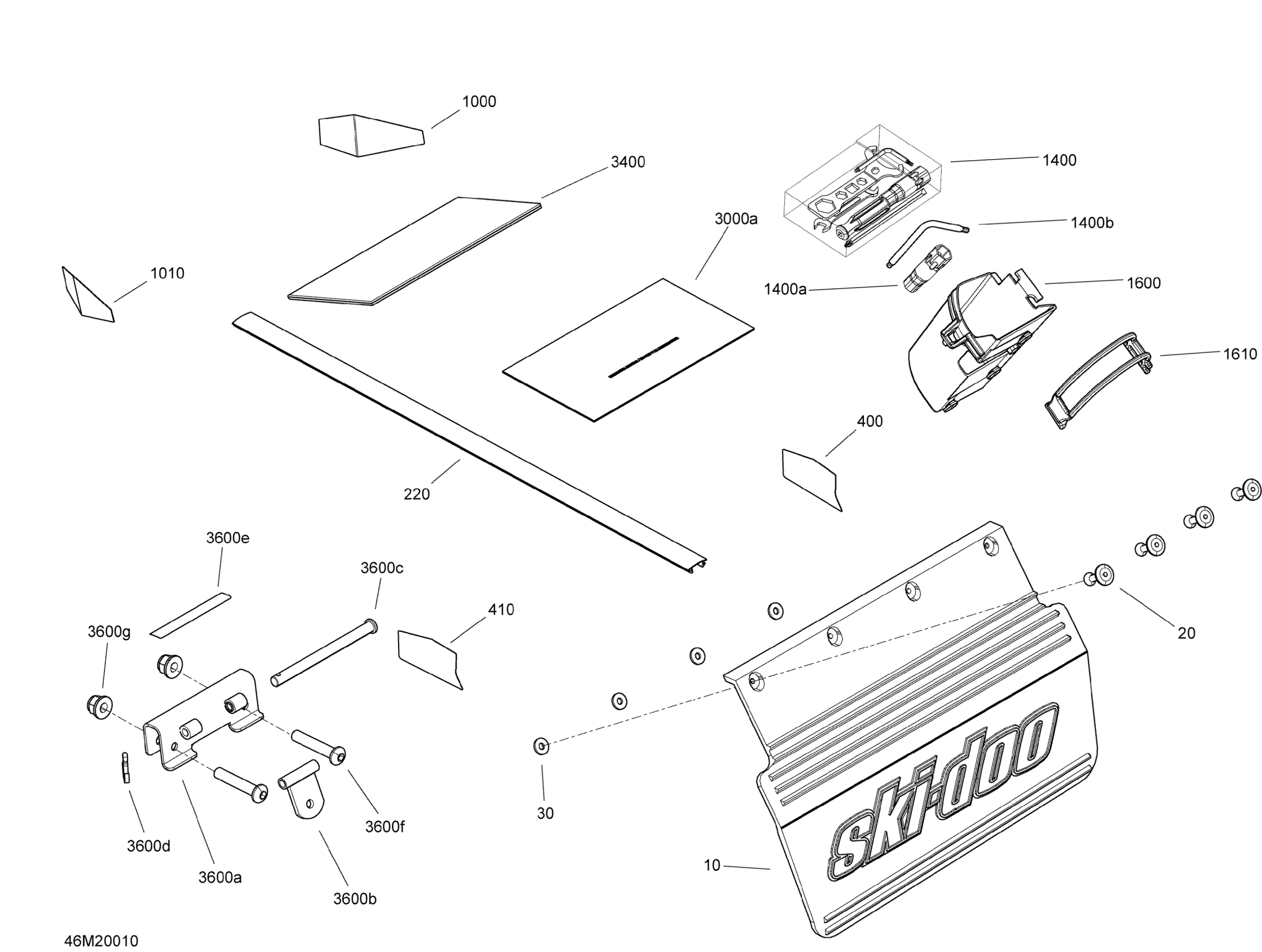

Ski-Doo EXPEDITION SPORT 550F - 2020 Utilities Diagram

Description

Price

Snow Guard

520000949

$81.49

Pop Rivet 3/16”

293150101

$2.09

Washer

517124300

$0.19

220

Radiator Trim

520000829

$21.99

400

Red, RH Rear Reflector

520000881

$16.99

410

Red, LH Rear Reflector

520000880

$16.99

1000

Yellow, RH Front Reflector

520000718

$15.99

1010

Yellow, LH Front Reflector

520000719

$15.99

1400

Tools Kit | Includes 1400 to 1400b

520001593

$51.49

1400a

Set Key, 16/21 mm

529000046

$14.49

1400b

Key

520001589

$12.89

1600

Tool Kit Rack

520000894

$14.99

1610

Latch

520000528

$7.69

3000a

Waranty Registration Form

219400038

Unavailable

3400

English Operator Guide

520002096

Unavailable

3600a

Support

511000768

$31.99

3600b

Hitch Plate Welded

511000521

$16.33

3600c

Lock Pin

511001451

$9.49

3600d

Cotter Pin

371800200

$0.53

3600e

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600f

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

3600g

Elastic Flange Nut M8

233281466

$1.01
