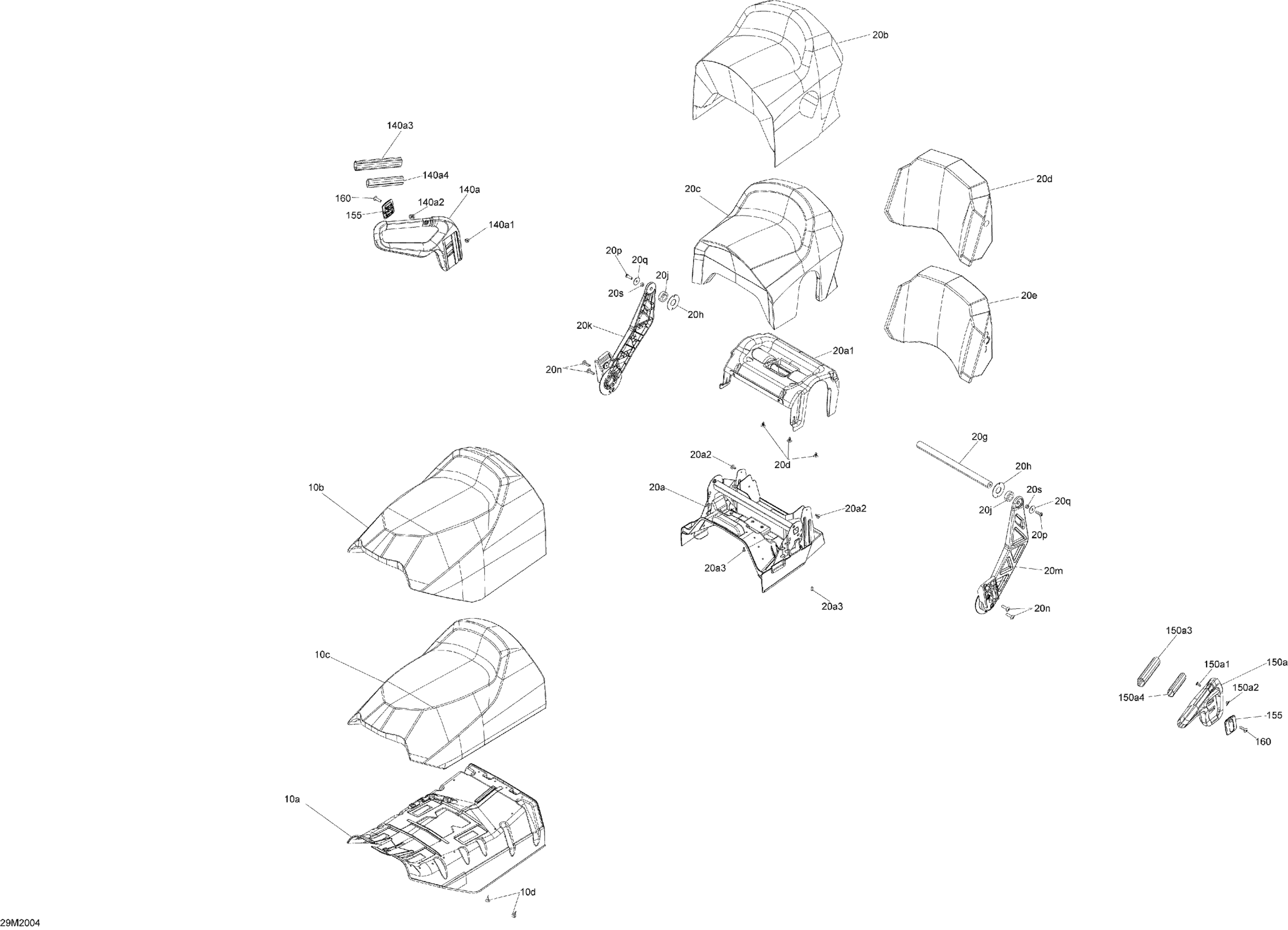

Ski-Doo EXPEDITION SPORT 550F - 2020 Seat Diagram

#

Description
Price

10a

Front Seat Base

510004775

$93.99

10b

Seat Cover

510005181

$219.99

10c

Front Seat Foam

510004777

$219.99

10d

Rubber Stopper

708000759

$4.19

20a

Seat Base Ass'y | Includes 20a to 20a3

510005535

$419.99

20a1

Foam Support

510004423

$38.99

20a2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20a3

Pop Rivet 3/16"

390402300

$0.75

20b

Rear Seat Cover

510005399

$230.99

20c

Rear Seat Foam

510004791

$294.99

20d

Black, Dart

414644300

$0.98

20e

Backrest Foam

510004782

$124.99

20f

Backrest Cover | Not Shown

510005309

$176.99

20g

Upper Backrest Axle

510004377

$44.99

20h

Washer

510004379

$10.01

20j

Rubber Shim

510004378

$10.99

20k

RH Arm, Black

510005539

$28.99

20m

LH Arm, Black

510005538

$28.99

20n

Hex Torx Truss M8 X30

250000745

$3.17

20p

Hex Torx Truss M8 X30

250000745

$3.17

20q

Flat Washer 8 mm

250200128

$4.44

20s

Spacer

271000558

$8.89

140a

RH Handle Ass'y | Includes 140a to 140a4

510006714

$285.99

140a1

Torx Truss Screw M6 X 16

250000721

$1.69

140a2

Nut Welded, M6

293100003

$9.12

140a3

Handle Grip

510004449

$12.49

140a4

Reinforcement Handle

510005814

$21.99

150a

LH Handle Ass'y | Includes 150a to 150a4

510006713

$285.99

150a1

Torx Truss Screw M6 X 16

250000721

$1.69

150a2

Nut Welded, M6

293100003

$9.12

150a3

Handle Grip

510004449

$12.49

150a4

Reinforcement Handle

510005814

$21.99

155

Passenger Handle Trim

510006602

$13.99

160

Hex Torx Truss M8 X30

250000745

$3.17

500

Flat Washer

224061201

$1.37

510

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

520

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44
