Description

Price

10

Frame | Includes 10 to 10bf

415130260

$3.00

10a

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

10b

RH Engine Support

518325559

$19.49

10c

Hemlock Rivet, 6.5 mm

293150096

$3.27

10d

LH Stirup

518326820

$37.99

10e

Panel Nut M5 X 0.8

250000958

$4.23

10f

Black, Plug

293730052

$9.19

10g

Rivet Avibulb 3/16

293150203

$2.09

10h

Monobolt Rivet, 4.8 mm

293150191

$0.99

10j

Support

518326960

$12.99

10k

Tork Screw M6 X 18

250000536

$2.11

10m

Flat Washer

250200039

$0.74

10n

Attach | Includes 10n to 10p

518326986

$12.99

10p

Clinch Stud M6 X 20

250300027

$2.09

10q

Elastic Stop Nut M6

232561414

$0.55

10r

Torx Screw M8 X 55

250000535

$3.17

10s

RH Reinforcement

518324874

$27.99

10t

LH Reinforcement

518324875

$27.99

10u

RH Rear Base

518325973

$21.99

10v

LH Rear Base | Includes 10v to 10x

518325974

$21.99

10w

Clinch Stud

250300038

$4.29

10x

Clinch Stud M6 X 20

250300027

$2.09

10y

Seal

518326656

$9.19

10z

Rear Cap

518327105

$22.49

10aa

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

10ab

Avex Rivet

390909200

$0.30

10ac

Full Moon Dart 5 mm

293730042

$2.21

10ad

Rivet Avibulb 3/16

293150203

$2.09

10ae

Avex Rivet

390909100

$0.30

10af

Stavex Rivet

293150144

$0.82

10ag

Henrob Rivet

293150146

$2.09

10ah

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aj

U-Attach

518326961

$10.99

10ak

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10am

Tork Screw M6 X 16

250000534

$2.11

10an

Hex. Flange Nut M6

233061414

$1.68

10ap

E Module | Includes 10ap to 10ay

518327568

$509.99

10aq

RH Member

518326795

$284.99

10ar

LH Member

518325558

$249.99

10as

Front Member | Includes 10as to 10at

518325818

$58.99

10at

Clinch Stud

250300038

$4.29

10au

Clinch Stud M6 X 20

250300027

$2.09

10av

Stavex Rivet

293150144

$0.82

10aw

Hemlock Rivet 6.5 mm

293150120

$7.41

10ax

Hemlock Rivet, 6.5 mm

293150119

$4.29

10ay

Leg Cushion

505073317

$8.66

10ba

RH Slide Bracket

518325955

$45.99

10bb

LH Slide Bracket

518325956

$49.99

10bc

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

10bd

LH Roller | Includes 10bd to 10be

518325160

$78.99

10be

Stavex Rivet

293150144

$0.82

10bf

Ornit Rivet 6,5 X 14.5

293150266

$2.40

30

Pop Rivet 3/16"

390402400

$0.35

120

RH Deflector, Black Polypropylene

518325782

$13.99

130

LH Deflector, Black Polypropylene

518325783

$13.99

140

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

170

Hemlock Rivet, 6.4 mm

293150174

$7.86

300a

Cross Member S Module | Includes 300a to 300b

518328327

$469.99

300b

Front Suspension Support

518327487

$289.99

300e

Front Member

518326975

$389.99

300f

Collar Huck Magna-Grip 6.4

293150149

$0.48

300g

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

310

Hex. Flange Elastic Nut M8

233281414

$1.47

320

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

330

Hex. Flange Screw M6 X 25

207662544

$0.64

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Monobolt Rivet, 4.8 mm

293150191

$0.99

360

Monobolt Rivet 6.4

293150182

$3.09

500

Pulley Support

518328346

$129.99

510

Hex. Flange Elastic Nut M8

233281414

$1.47

900

Rear Member

518326559

$264.99

910

Hex. Flange Elastic Nut M8

233281414

$1.47

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1300a

Clear Rear Bumper

518325579

$111.49

1300b

Full Moon RH Cap

520000711

$8.79

1300c

Full Moon LH Cap

520000712

$9.19

1400

Full Moon Dart 8 mm

293730041

$2.21

1405

Full Moon Dart 10 mm

293730059

$4.55

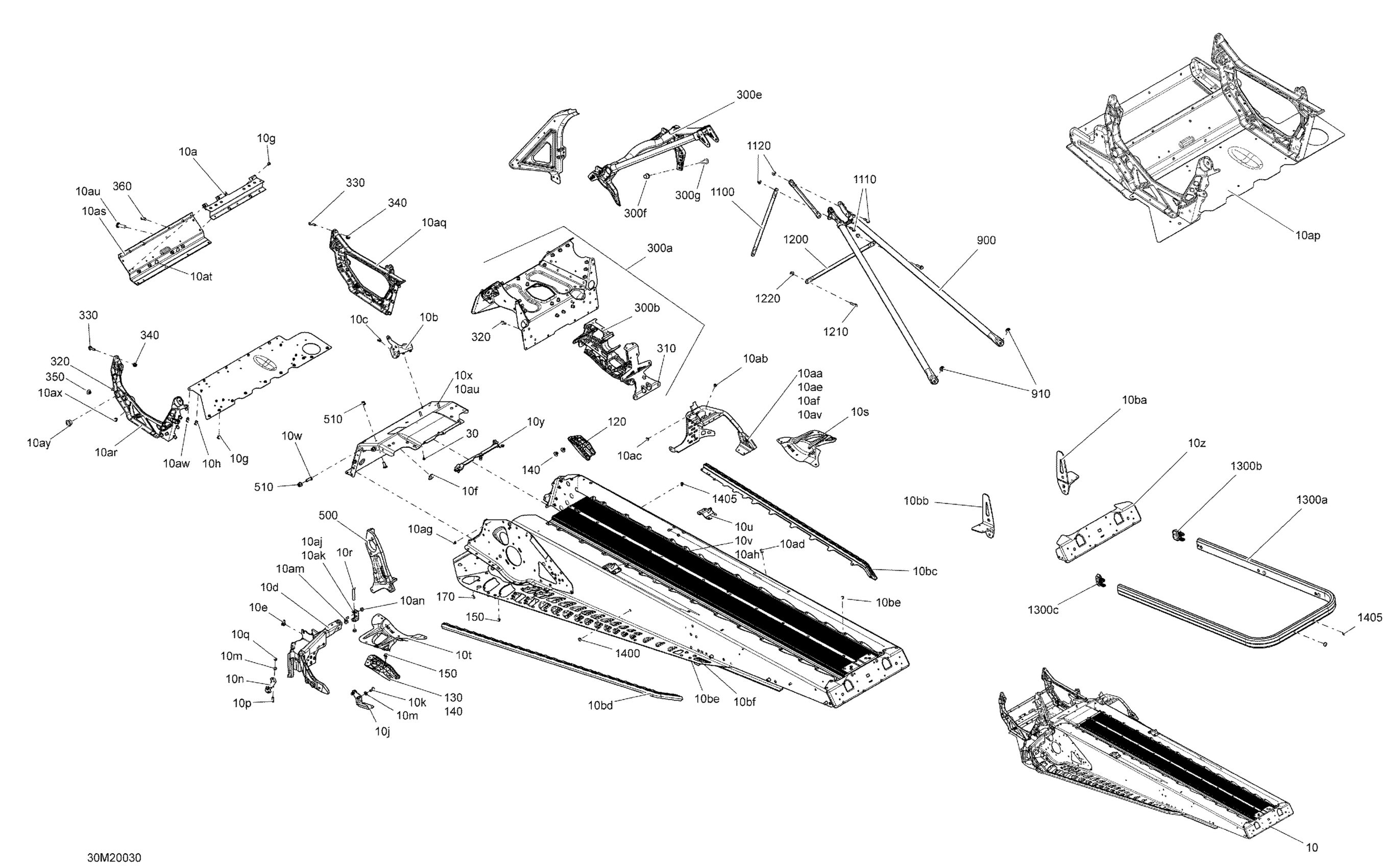

Ski-Doo 001 - EXPEDITION SPORT 550F - North America, 2020 09- Frame Diagram

Frame | Includes 10 to 10bf

ENGINE SUPPORT - Call your local BRP dealership

RH Engine Support

Hemlock Rivet, 6.5 mm

LH Stirup

Panel Nut M5 X 0.8

Black, Plug

Rivet Avibulb 3/16

Monobolt Rivet, 4.8 mm

Support

Tork Screw M6 X 18

Flat Washer

Attach | Includes 10n to 10p

Clinch Stud M6 X 20

Elastic Stop Nut M6

Torx Screw M8 X 55

RH Reinforcement

LH Reinforcement

RH Rear Base

LH Rear Base | Includes 10v to 10x

Clinch Stud

Clinch Stud M6 X 20

Seal

Rear Cap

RH Stirup | Includes 10aa to 10ab

Avex Rivet

Full Moon Dart 5 mm

Rivet Avibulb 3/16

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm

U-Attach

Ornit Rivet 6,5 X 14.5

Tork Screw M6 X 16

Hex. Flange Nut M6

E Module | Includes 10ap to 10ay

RH Member

LH Member

Front Member | Includes 10as to 10at

Clinch Stud

Clinch Stud M6 X 20

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Cushion

RH Slide Bracket

LH Slide Bracket

RH ROLLER - Call your local BRP dealership

LH Roller | Includes 10bd to 10be

Stavex Rivet

Ornit Rivet 6,5 X 14.5

Pop Rivet 3/16"

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M6 X 12, Scotch Grip

Hemlock Rivet, 6.4 mm

Cross Member S Module | Includes 300a to 300b

Front Suspension Support

Front Member

Collar Huck Magna-Grip 6.4

Rivet Magna-Grip 6,4 X 50,8

Hex. Flange Elastic Nut M8

Screw-Forming Hex.HD.FL. M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Monobolt Rivet, 4.8 mm

Monobolt Rivet 6.4

Pulley Support

Hex. Flange Elastic Nut M8

Rear Member

Hex. Flange Elastic Nut M8

Upper Lateral Column Support

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Center Column Support

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0
