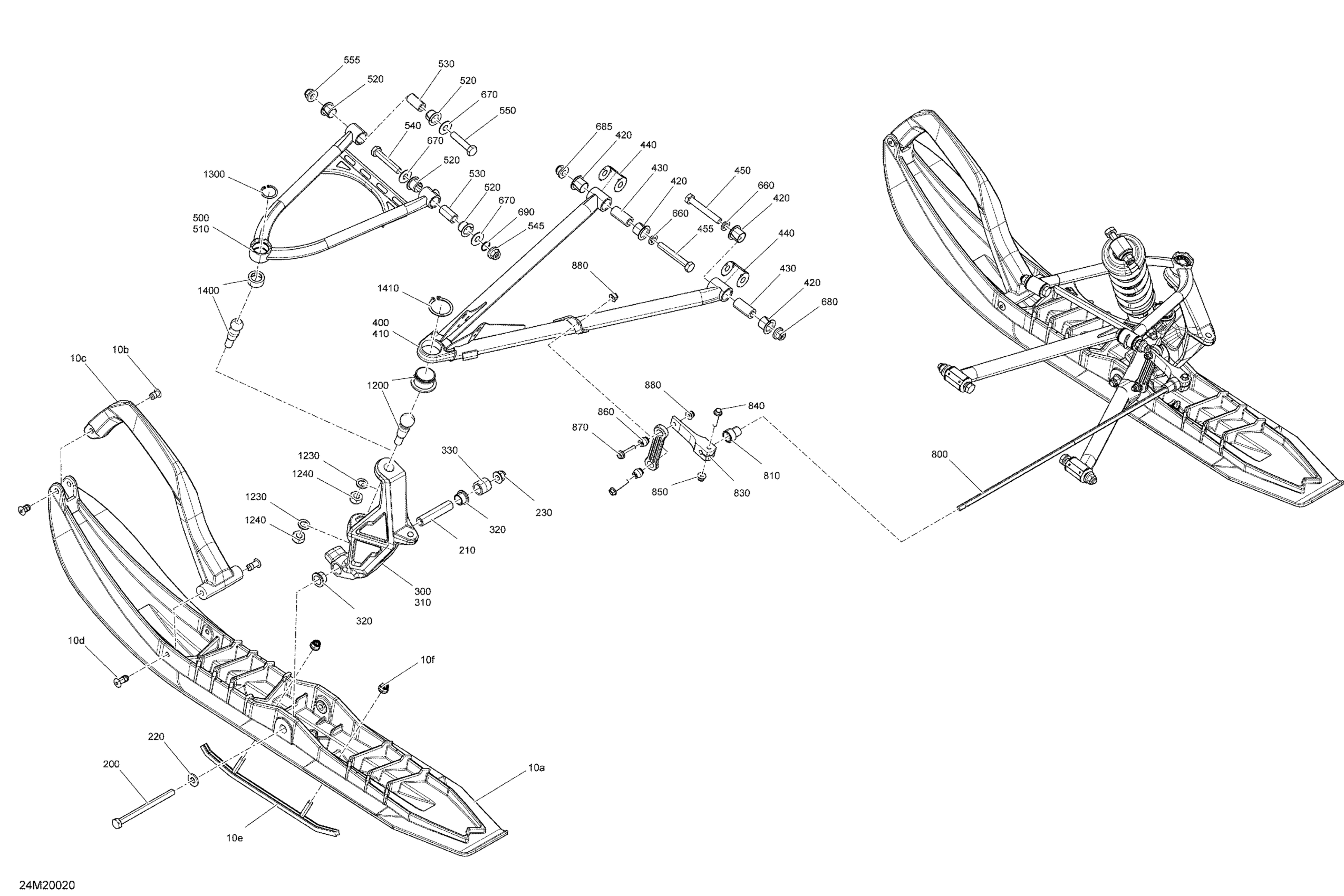

Ski-Doo EXPEDITION SPORT 550F - 2020 Suspension, Front - System Diagram

#

Description
Price

10a

Black, Ski

505073227

$175.35

10b

Retainer 17mm long

505071812

$4.43

10c

Black, Handle

505072976

$35.35

10d

Retainer 23mm Long

505072133

$5.03

10e

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10f

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Spacer

506133300

$19.97

220

Washer

732900049

$0.57

230

Hex. Flange Elastic Nut M10

233201414

$1.26

300

White, LH Ski Leg

505073559

$233.05

310

White, RH Ski Leg

505073560

$233.05

320

Leg Bushing

505072690

Unavailable

330

Spacer

503193651

$7.58

400

Black, RH Lower Arm

505072497

$193.82

410

Black, LH Lower Arm

505072498

$193.82

420

Bushing

505072208

$3.14

430

Sleeve

505072209

$14.38

440

Wear Plate

505072634

$4.45

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

500

LH Upper Arm 39"

505073468

$143.05

510

RH Upper Arm 39"

505073469

$143.05

520

Bushing

505072250

$3.14

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 50

250001022

$1.42

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Stabilisator

505072602

$71.99

810

Bushing

505072064

$2.22

830

Stabilisator Lever

505072394

$16.12

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$19.20

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1200

Ball Joint

505073636

$49.97

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Circlip

293370035

$2.55
