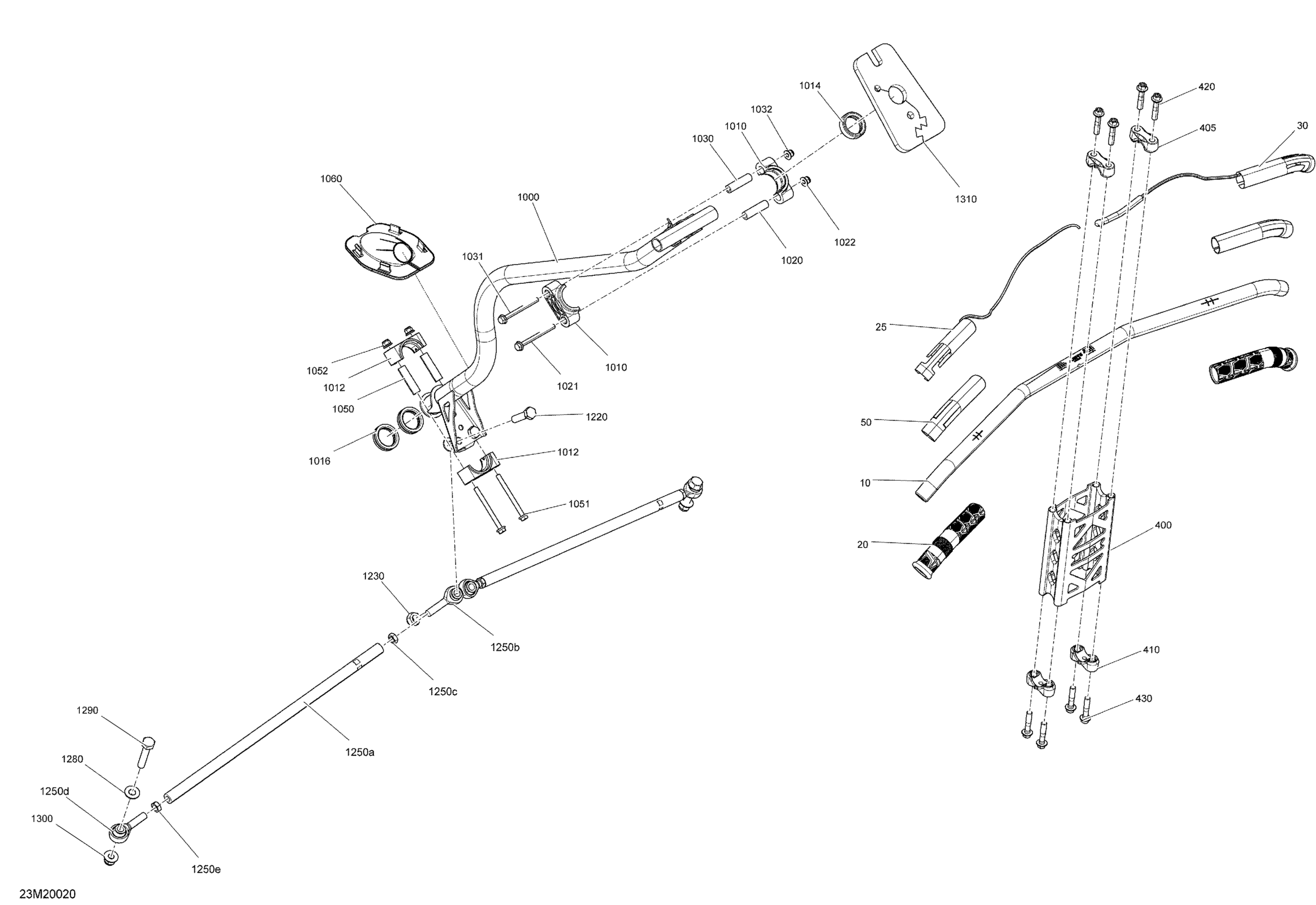

Ski-Doo EXPEDITION SPORT 550F - 2020 Steering - System Diagram

#

Description
Price

10

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

20

Grip 148mm

506152560

$15.64

25

Heating Element 32 Watt 3 Wires

506152798

$47.73

30

RH Heating Element 32 Watt

506152799

$34.30

50

Thermal Insulation

506153176

$5.54

400

Riser Kit

860200820

$86.54

405

Steering Support

506152894

$12.10

410

Steering Support

506152894

$12.10

420

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

500

Deep Black, Steering Pad

506152541

$41.01

1000

Steering Column

506152963

$276.84

1010

Upper Half-Housing

506152508

$7.18

1012

Lower Half-Housing

506152217

$5.40

1014

Upper Anti-Vibration Gasket

506152509

$4.39

1016

Lower Vibration Ring

506152518

$4.39

1020

Housing Bushing

506152297

$9.93

1021

Hex. Flange Screw M6 X 70

250001027

$2.00

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1030

Housing Bushing

506152297

$9.93

1031

Hex. Flange Screw M6 X 70

250001027

$2.00

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1050

Housing Bushing

506152297

$9.93

1051

Hex. Flange Screw M6 X 70

250001027

$2.00

1052

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1060

Plate

506152163

$9.93

1220

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

1230

Elastic Locking Nut M10

233601466

$2.00

1250a

Tie-Rod

506152498

$35.79

1250b

LH Thread Ball Joint

506152081

$38.78

1250c

LH Threaded Hex. Jam Nut M10

250100016

$0.70

1250d

RH Threaded Ball Joint

506152019

$38.78

1250e

RH Threaded Hex. Jam Nut M10

732610010

$0.70

1280

Washer

506152582

$4.28

1290

Hex Screw M10 X 1.5 X 55

207005554

$7.09

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

1310

Bushing

506152521

$13.19
