Description

Price

10a

Fixed Flange Ass'y | Includes 10a to 10c This part replaces 417224097.

417224097

Unavailable

10d

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$319.99

10e

Bushing

417222758

$22.49

10f

Circlip

293370037

$3.19

10g

Ramp 700 Ass'y This part replaces 417223557.

417223604

$69.99

10h

Thrust Washer

417223255

$2.00

10j

Ramp Axle

417223694

$11.05

10m

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.99

10n

Circlip

293370065

$0.98

10p

Seat Spring

417223752

$15.27

10q

Spring Clutch

417223748

$15.35

10r

Torx Screw M6 X 30

250000580

$6.08

10s

Governor Cup Ass'y

417223865

$274.99

10t

Roller

417223767

$11.59

10u

Roller Axle

417223257

$6.99

10v

O-Ring

293300185

$0.98

10w

Slider Shoe

417223919

$6.83

10x

Torx Button Head Screw M8 X 16

250000706

$2.00

10y

Crown Gear Launch

417223476

$164.49

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt

417300432

$41.49

100a

Fixe Flange Ass'y | Includes 100a to 100f

417127392

$359.99

100b

Pulley Roller

417127016

$24.49

100c

Pivot Stud

417127294

$14.49

100d

Lock Washer 8 mm

250200009

$2.11

100f

Spring Pin M3 X 30

250400063

$2.11

100g

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

100m

Cam Ass'y | Includes 100c to 100c3

417127367

$148.99

100n

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100q

Circlip

293370049

$4.99

100r

Spring

417127061

$46.49

100s

Swivel Abutment

417127116

$9.39

100t

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100v

Calibration Ass'y

415129604

$21.49

100w

Socket Screw M5 X 25

250000981

$1.68

100x

Flat Washer M5

234051410

$0.53

100y

Elastic Stop Nut M5

232551414

$0.87

100z

Washer

417127155

$8.26

120

Strength Washer

517302322

$12.63

130

Hex. Cap Screw M8 X 75

207287544

$5.18

160

Spacer

417300265

$2.29

200

Drive Belt

417300585

$154.99

300

Belt Guard

417300382

$90.99

330

Reinforcement

417300380

$7.29

340

Avex Rivet

390909200

$0.30

350

Guide

417300381

$11.99

360

Side Protector

417300356

$14.76

370

Pop Rivet 3/16"

293150103

$0.55

400

Front Belt Guard Bracket

417300386

$16.49

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

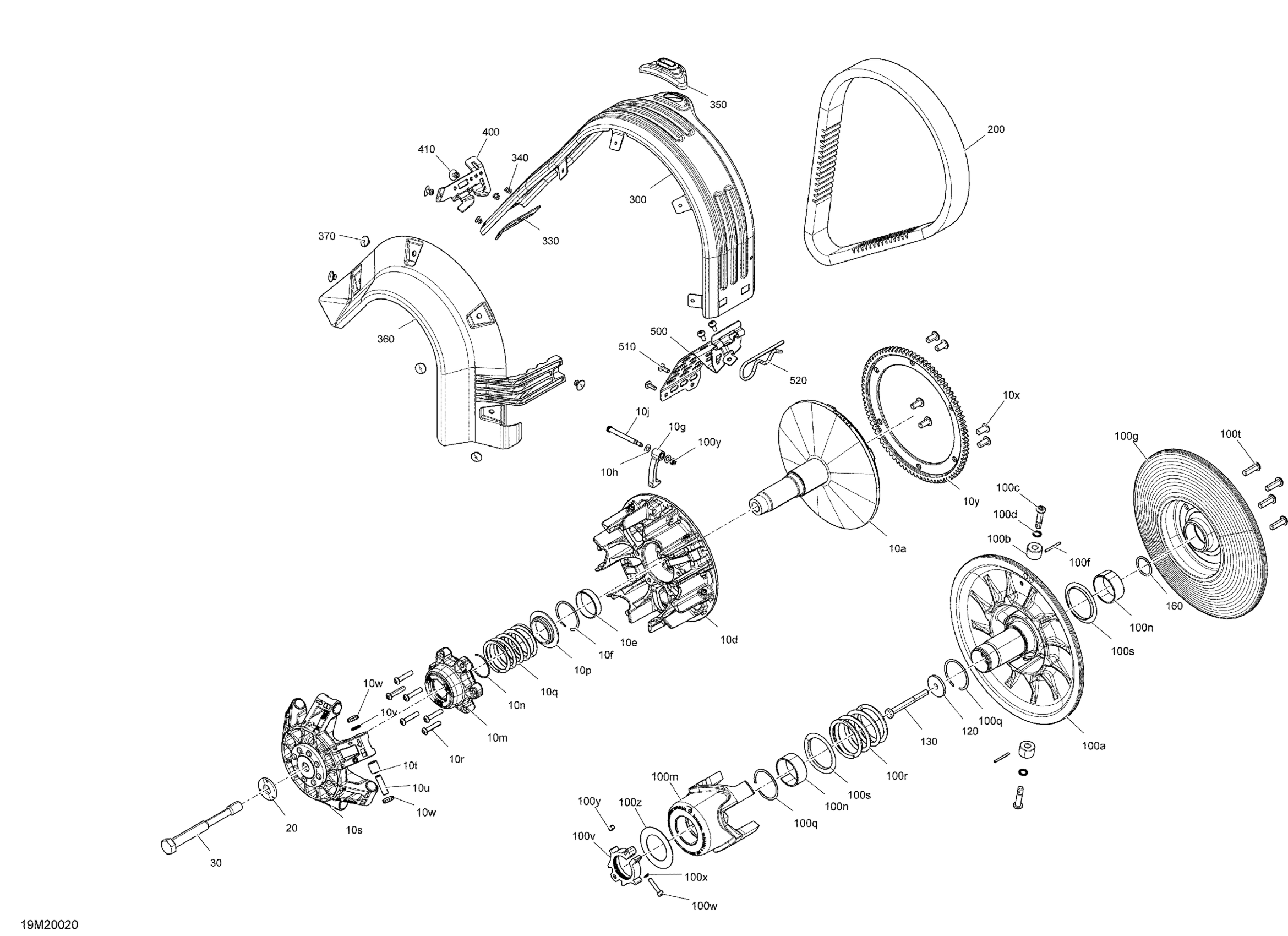

Ski-Doo 001 - EXPEDITION SPORT 550F - North America, 2020 05- Pulley - System Diagram

Fixed Flange Ass'y | Includes 10a to 10c This part replaces 417224097.

Sliding Flange Ass'y | Includes 10b to 10b3

Bushing

Circlip

Ramp 700 Ass'y This part replaces 417223557.

Thrust Washer

Ramp Axle

Spring Cover Ass'y | Includes 10j to 10j3

Circlip

Seat Spring

Spring Clutch

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Torx Button Head Screw M8 X 16

Crown Gear Launch

Conical Spring Washer M14

Pulley Drive Bolt

Fixe Flange Ass'y | Includes 100a to 100f

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 30

Slider Flange Ass'y | Includes 100b to 100b3

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Strength Washer

Hex. Cap Screw M8 X 75

Spacer

Drive Belt

Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Front Belt Guard Bracket

Pop Rivet 3/16" | DS 650 X

BELT GUARD BRACKET - Call your local BRP dealership

Torx Screw M5 X 14

Hair Pin
