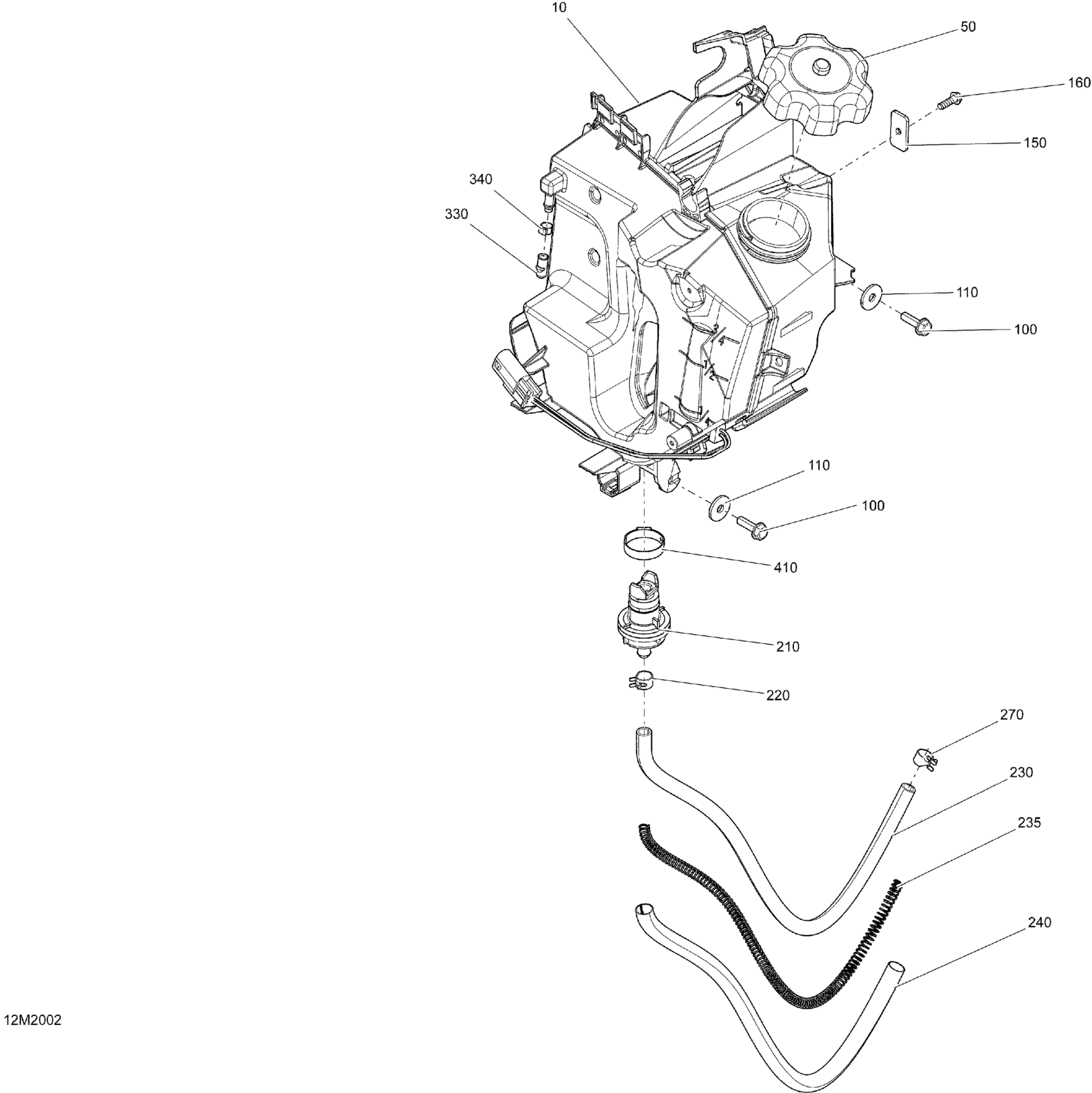

Ski-Doo EXPEDITION SPORT 550F - 2020 Engine - Oil Diagram

Description

Price

Oil Tank

519000312

$88.78

Cap

519000273

$24.60

100

Hex. Flange Screw M6 X 16

250001062

$1.39

110

Flat Washer

224061201

$1.27

150

Bracket

519000179

$8.31

160

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

210

Oil Filter

519000242

$12.79

220

Spring Clamp

414415200

$0.81

230

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

235

Spring

519000196

$8.42

240

Tubing 10 MM 1000MM Long

219704407

$2.52

270

Spring Clamp

414420700

$0.66

330

Cap

519000216

$6.66

340

Oetiker Gear Clamp

293650043

$3.10

410

Crimp Clamp

293650099

$4.07
