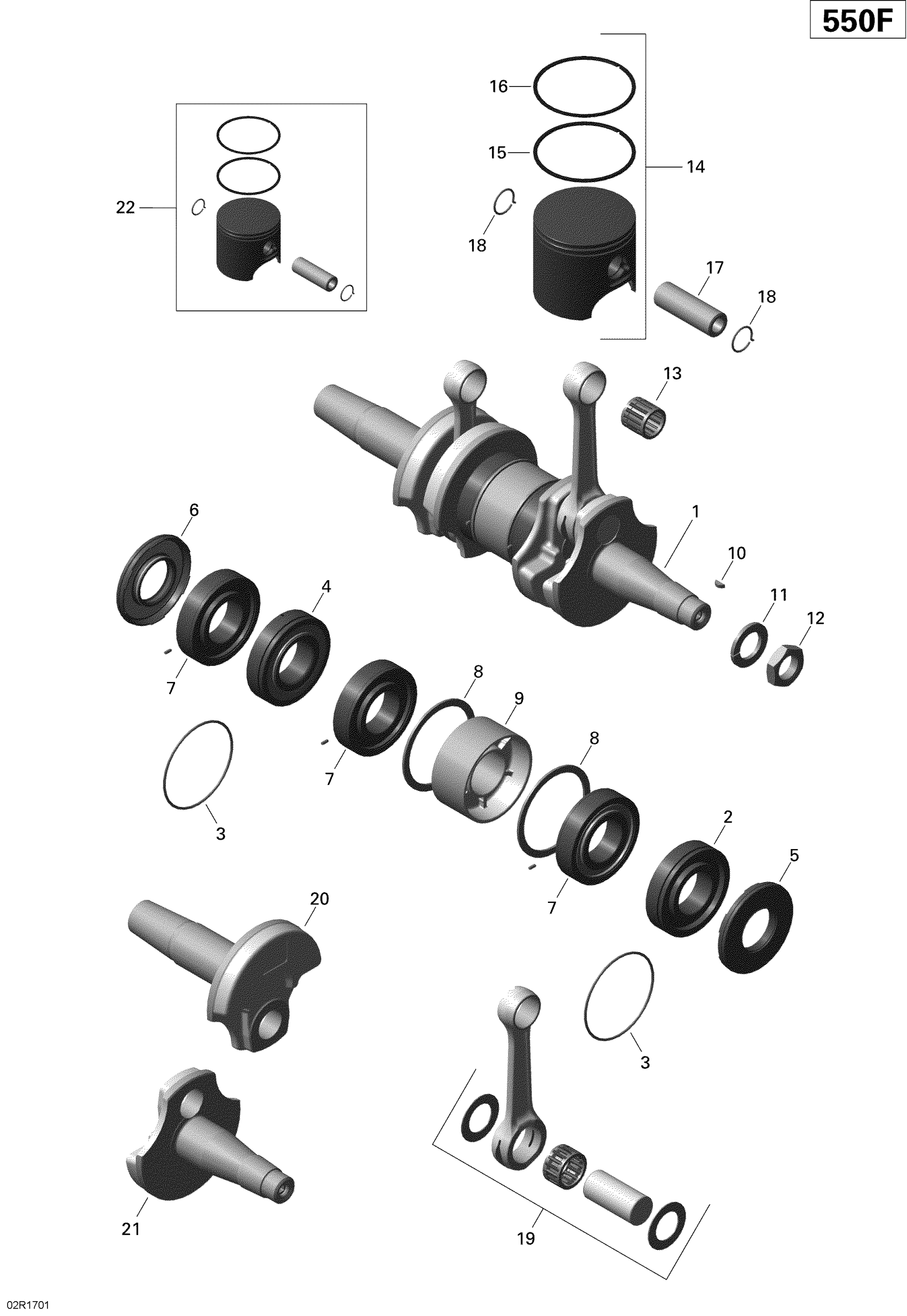

Ski-Doo EXPEDITION SPORT 550F - 2020 Engine - Crankshaft and Pistons - 550F Diagram

#

Description
Price

1

Crankshaft | Includes 1 to 8

420686042

$805.19

1

REBUILT - CRANKSHAFT 552

421000673

Unavailable

2

Ball Bearing

420832571

$38.78

3

O-Ring, 64 mm X 2 mm

293300022

$12.15

4

Ball Bearing

420832632

$97.73

5

Oil Seal This part replaces 290831952.

420831952

$16.39

6

Oil Seal

420831955

$26.09

7

Ball Bearing

420832573

$41.01

8

Retaining Disk

420927710

$7.01

9

Labyrinth Sleeve

420850149

$33.55

10

Woodruff Key

420246055

$2.28

11

Lock Washer, 22 mm

420945759

$1.78

12

Hex. Nut, M22 X 1.5

420842239

$16.39

13

Needle Bearing

420832445

$25.34

14

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

420889050

$169.37

14

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

420889051

$169.37

14

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

420889052

$169.37

15

Rectangular Ring, Standard

420815300

$25.34

15

Rectangular Ring, 1st

420815301

$25.34

15

Rectangular Ring, 2nd

420815302

$25.34

16

Semi-Trapez Ring, Standard

420815155

$52.21

16

Semi-Trapez Ring, 1st

420815156

$52.21

16

Semi-Trapez Ring, 2nd

420815157

$51.46

17

Piston Pin

420916407

$26.09

18

Piston Circlip

420845106

$3.89

19

Rod Repair Kit

420889068

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Piston Kit

415129542

$214.90
