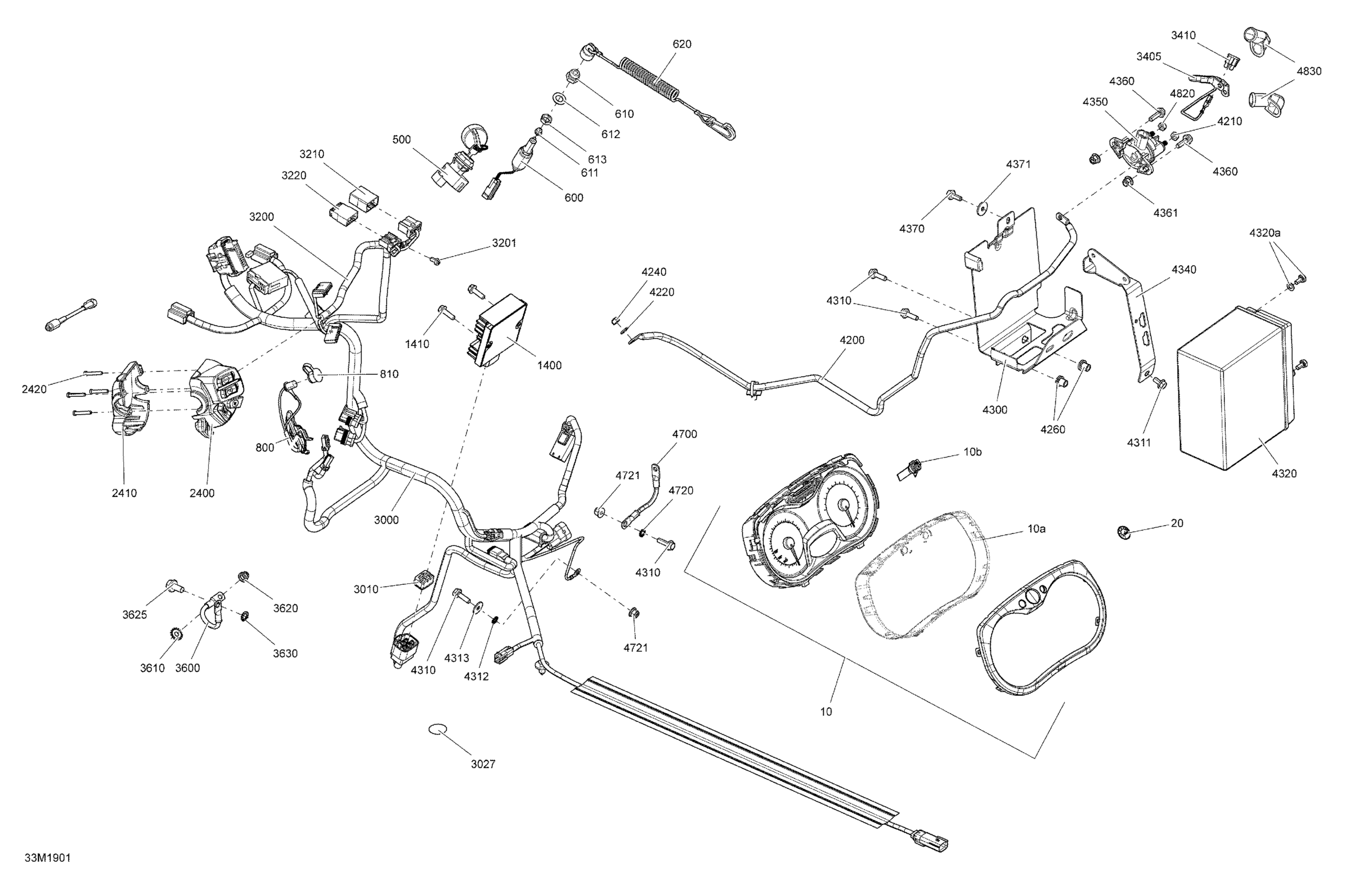

Ski-Doo EXPEDITION SPORT 550F, 2019 Electrical - 550F Diagram

#

Description
Price

10

Indicator | Includes 10 to 10c

515177279

$569.99

10a

Lens | XTP

415129349

$24.49

10b

Speedometer Button | XTP

415129355

$15.80

10c

Gauge Ring

415129348

$13.99

20

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

500

Ignition Swirch

515177063

$50.99

500a

Blank Key

415129350

$26.49

600

Brake Switch

515175653

$19.49

610

Switch Nut

515145900

$12.12

611

Plunger Cap

570151100

$9.85

612

Flat Washer

250200084

$3.38

613

RH Threaded Hex. Jam Nut M10

732610010

$0.74

620

Cap Ass'y

515178283

$38.99

800

Visor Harness

515177837

$33.99

810

Cap

572103300

$10.49

1400

Voltage Regulator

515176699

$153.49

1410

Hex. Flange Screw M6 X 20

210262040

$2.11

2400

LH Housing

515177021

$229.99

2400a

Start/RER Button

515176088

$20.99

2410

Switch Housing Plate

515175926

$20.99

2420

Torx Screw #8-18

250000263

$1.04

3000

Main Harness

515177979

$329.99

3010

Lock

515176681

$20.99

3027

Adhesive Patch

518325560

$4.69

3200

Steering Wiring Harness

515177609

$114.99

3201

Pan Screw Forming, 7500C

250000690

$2.11

3210

Male Terminal Housing, 8 Circuits

515175817

$8.79

3220

Male Terminal Housing, 6 Circuits

515175662

$8.79

3405

Fuse Battery Wire

515177576

$16.63

3410

Fuse, 30 Amperes

410917200

$3.28

3600

Ground Wire

515176745

$28.99

3610

Lock Washer Serrated M6

250200041

$1.15

3620

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3625

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

3630

Serrated Lock Washer 8 mm

234481608

$1.15

4200

Battery/Starter Wire

515177730

$30.99

4210

Elastic Stop Nut M6

232561414

$0.55

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561414

$0.55

4260

Insert

293450275

$12.99

4300

Battery Support

515177264

$31.99

4310

Hex. Flange Screw M6 X 20

207662044

$2.00

4311

Hex. Flange Screw M6 X 12

207661244

$2.11

4312

External Serrated Lock Washer 6 mm

234461608

$1.15

4313

Flat Washer

250200082

$0.42

4320

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

4320a

Battery Bolt Kit

250000282

$7.29

4340

Battery Strip

515177266

$19.99

4350

Starter Relay

278003012

$42.49

4360

Hex. Flange Screw M6 X 20

207662044

$2.00

4361

Elastic Flange Nut M6 X 1.0

233261416

$2.11

4370

Hex. Flange Screw M6 X 16

207661644

$0.74

4371

Flat Washer

224061201

$1.37

4700

Ground Wire

515176358

$27.99

4720

Lock Washer Serrated M6

250200041

$1.15

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4820

Elastic Stop Nut M6

232561414

$0.55

4830

Protector Cap

710000495

$10.99

6000

Extension

515175851

$11.12
