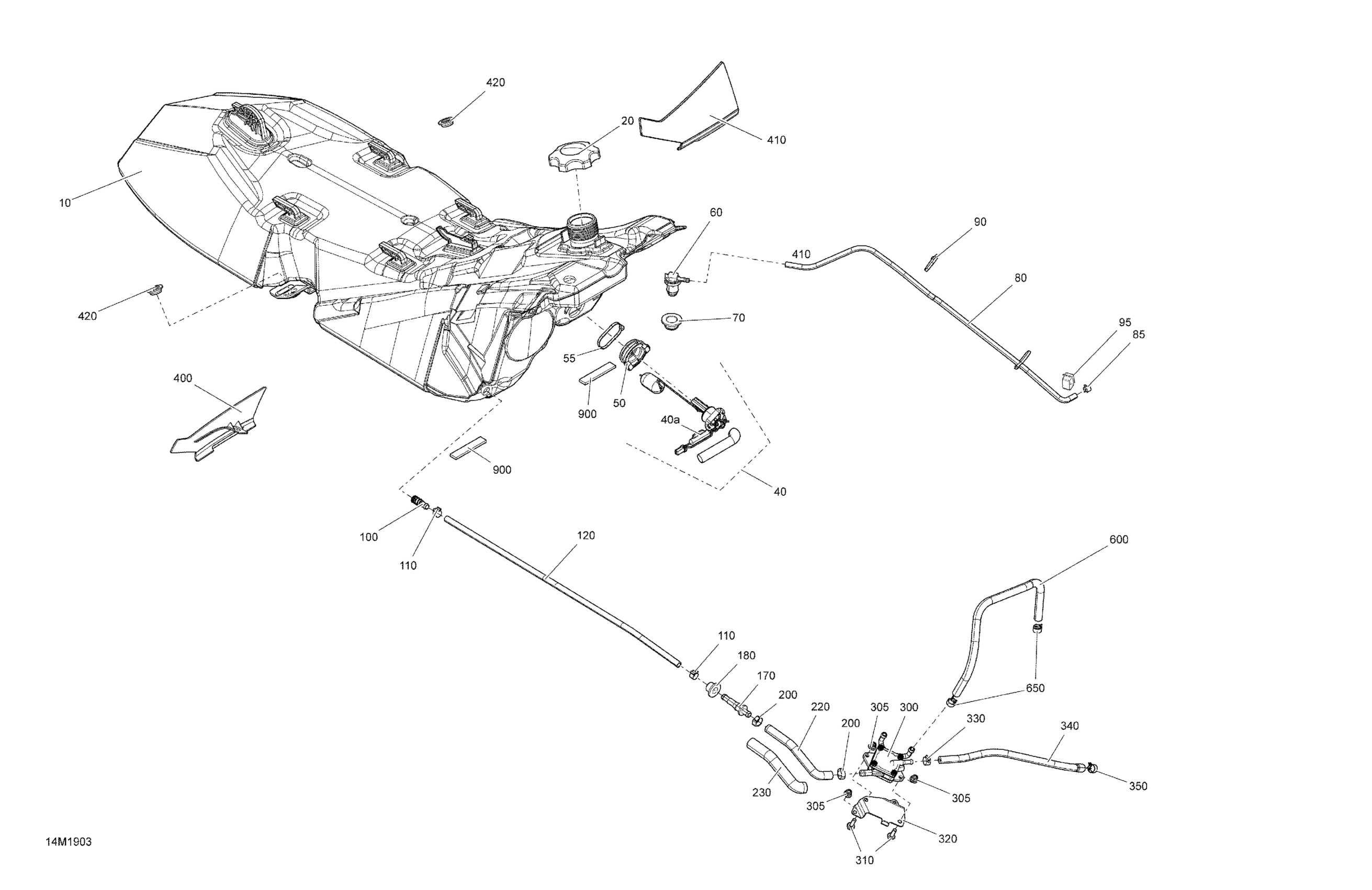

Ski-Doo EXPEDITION SPORT 550F, 2019 Fuel Diagram

#

Description
Price

10

Fuel Tank

513033695

$313.82

20

Fuel Tank Cap

513033969

$25.35

40

Sensor Level Fuel | Includes 40 to 40a

513033958

$104.58

40a

Fuse, 0.5 Ampère

710001995

$7.48

50

Grommet

513033606

$18.43

55

Tie Wrap 368 mm

293750008

$0.85

60

Check Valve

513033842

$33.82

70

Grommet

513033596

$18.43

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

85

Spring Clamp

414554800

$0.83

90

Tie-Rap 180 mm

414115200

$0.09

100

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

110

Norma Spring Clamp

513033010

$8.68

120

Polyurethane Hose 1000Mm Long

219704391

Unavailable

170

Male Connector

414872700

$1.86

180

Grommet

513033435

$3.73

200

Crimp Clamp

293650053

$2.42

220

Formed Hose

513033499

$29.20

230

Tubing 16 Mm 1000Mm Long

219704408

$6.23

300

Fuel Pump

403901813

$84.99

305

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

310

Hex. Flange Screw M6 X 20

207662044

$1.66

320

Pump Bracket

513033543

$18.43

330

Spring Clamp

414415200

$0.83

340

Formed Hose

513033553

$23.82

345

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Universal Spring Clamp

513033029

$5.11

420

Shoulder Bushing

513033326

$12.62

600

Hose 3000Mm Long

219704612

$79.97

610

Hose 3000Mm Long

219704612

$79.97

620

Tubing 16 Mm 1000Mm Long

219704408

$6.23

630

Tubing 16 Mm 1000Mm Long

219704408

$6.23

650

Universal Spring Clamp

513033029

$5.11

900

Gasket

513033813

$3.29
