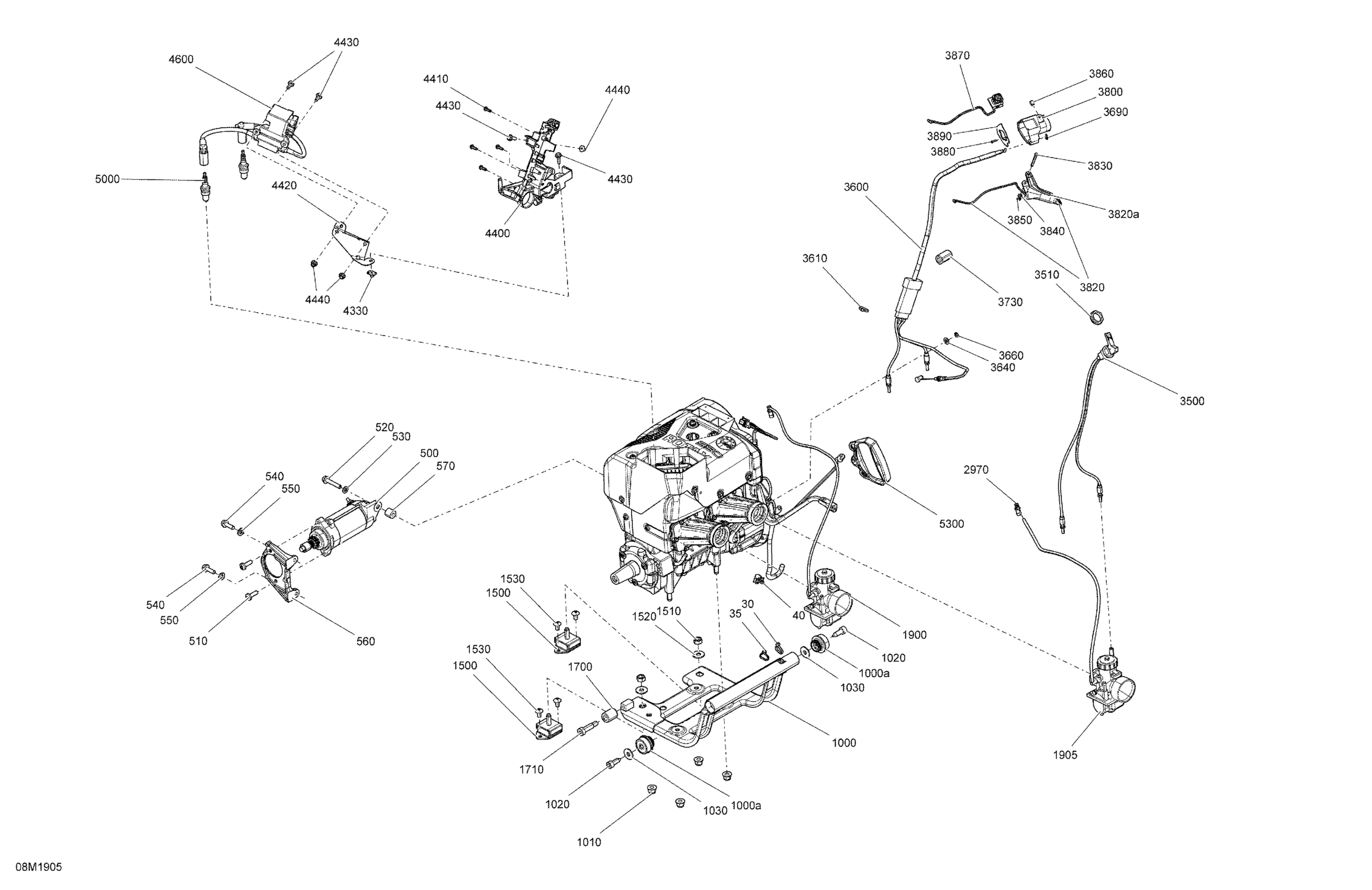

Ski-Doo 001 - EXPEDITION SPORT 550F, 2019 01- Engine - 550F Diagram

#

Description
Price

40

Clip

515177066

$4.29

500

Starter

515178473

$319.49

510

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

520

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

530

Flat Washer With Teflon 8 mm

250200008

$3.80

540

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

550

Conical Spring Washer M8

250200146

$1.01

560

Support

512060656

$58.49

570

Spacer

515176597

$15.28

1000

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$182.99

1000a

Rubber Mount

512059691

$47.99

1010

Hex. Flange Elastic Nut M10

233201414

$1.58

1020

Screw M10 X 30

250000094

$24.49

1030

Flat Washer M10 | 4X4

250200014

$1.49

1500

Rubber Mount

512060564

$42.99

1510

Elastic Stop Nut M10

232500416

$1.90

1520

Flat Washer M10 | 4X4

250200014

$1.49

1530

Torx Truss Screw M8 X 16

250000746

$3.38

1700

Stopper

512060395

$18.49

1710

Socket Head Screw, Scotch Grip

250000463

$7.51

1900

Carburetor VM30-219, PTO

403138814

$312.49

1905

Carburetor VM30-218, MAG

403138813

$322.49

1920

Gemi Clamp | Not Shown

512059834

$11.60

2970

Male Connector

414814100

$2.22

3500

Choke Cable

512060674

$47.49

3510

Plastic Nut

512060671

$1.01

3600

Throttle Cable

512060892

$82.49

3640

Flat Washer 8 mm, Nylon

234081100

$1.39

3660

Circlip

414753500

$0.71

3690

Circlip

414274500

$0.90

3730

Protector

512060313

$10.33

3800

Throttle Housing

512060603

$12.49

3820

Handle Ass'y | Includes 3820 to 3820a

512061251

$95.99

3820a

Handle, 30 mm

572084501

$18.79

3830

Lever Pin

414438700

$11.64

3840

Flat Washer M5, Stainless

234051600

$0.77

3850

Circlip

293370050

$0.46

3860

Socket Set Screw M8 X 10

414440800

$4.12

3870

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

3880

Torx Truss Screw M2 X 12

250000756

$6.45

3890

Plate

512060390

$10.33

4330

Nut Welded, M6

293100003

$9.12

4400

Coils Support

512060924

$10.33

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

4420

Coils Support

512060460

$19.49

4430

Hex. Flange Screw M6 X 20

207662044

$2.00

4440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4600

Calibrated Module

512060324

$569.99

5000

Spark Plug NGK BR9ECS-5

512059552

$10.59

5300

Starter Grip

512060136

$14.83
