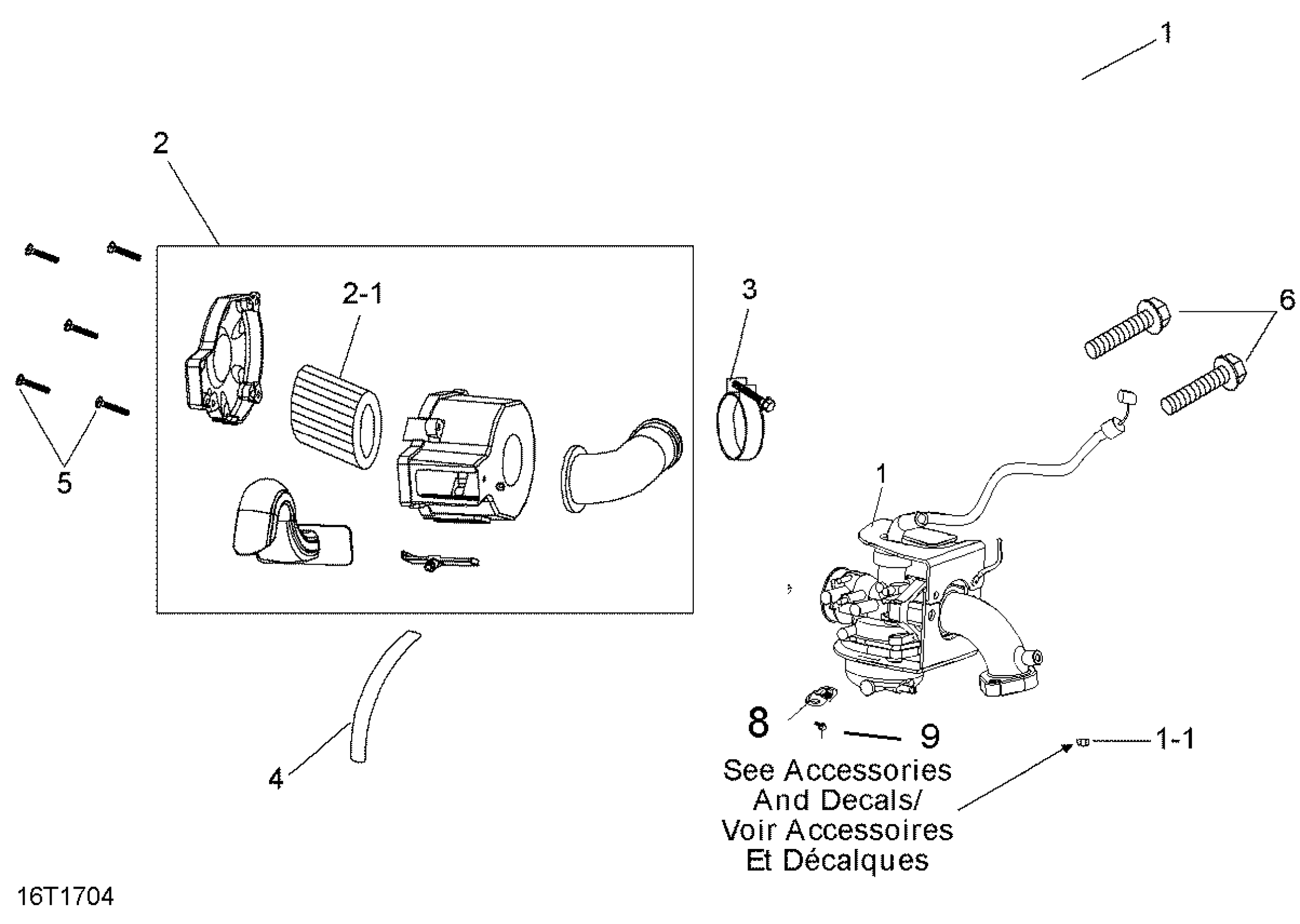

Can-Am DS 70, 2022 Carburetor And Air Cleaner Diagram

#

Description
Price

1

Carburetor Ass'y

V16101DGE010

$370.99

1-1

Not Available As Spare Part - Friction Washer

Unavailable

1-2

Adaptor

V16120DGF000

$12.69

1-3

O-Ring

V91309DGF000

$2.32

2

Air Silencer Ass'y

V17200DGF050LL

$78.99

2-1

Air Cleaner Element Set

V17205DGF070

$23.99

3

Clamp

V17208DGF010

$12.18

4

Not Available As Spare Parts

XXX

Unavailable

5

ROUND HEAD BOLT - Call your local BRP dealership

V9300005016010LL

Unavailable

6

Hex. Flange Screw M6 X 25

207662544

$0.64

8

Bracket

V50312DGF000

$19.99

Flange bolt M6 X 10

V9600106010

$12.11
