Partiron

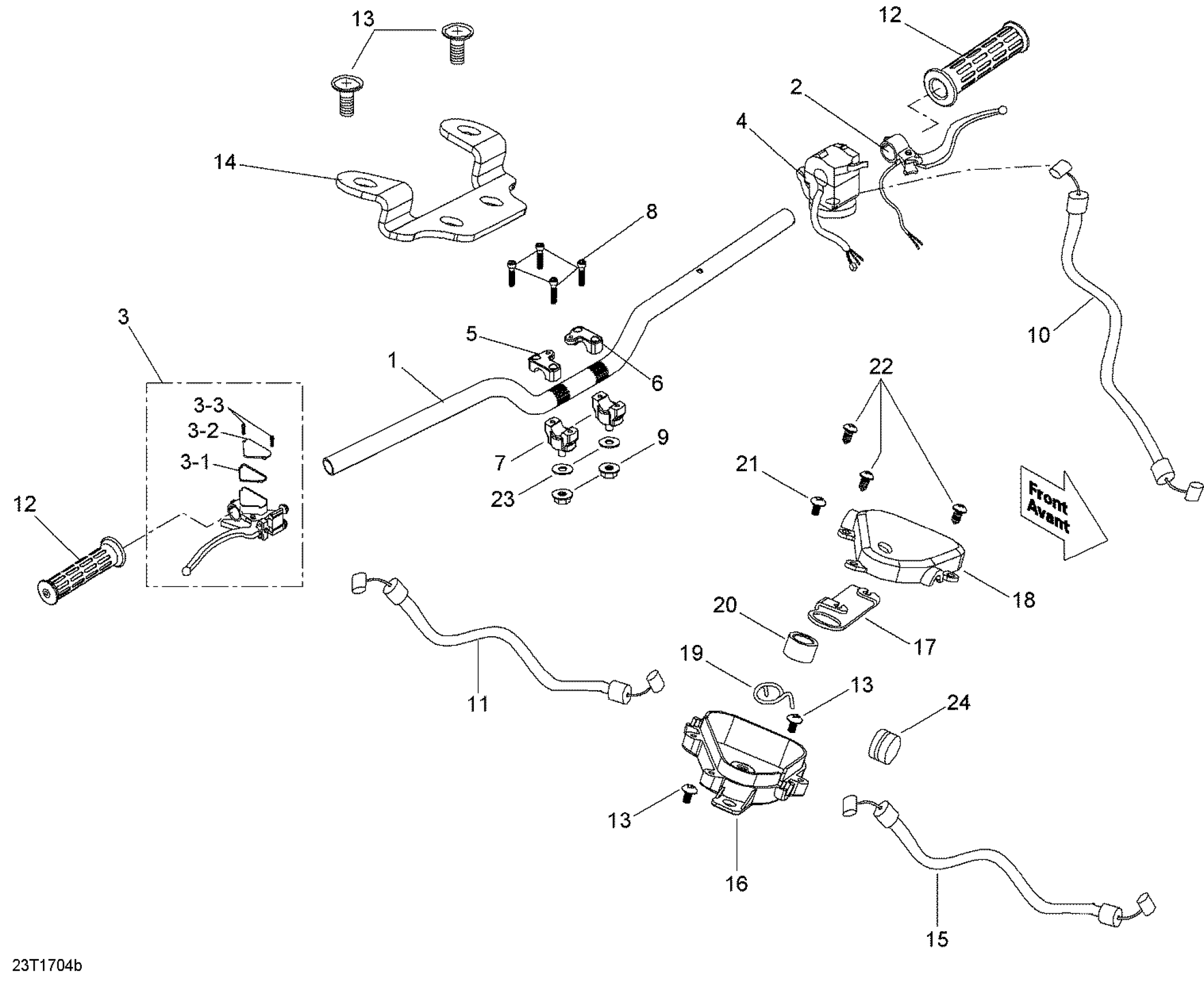

Can-Am DS 70, 2020 Handlebar Diagram

#

Description
Price

1

Handle Bar

V53100DGF060BKLL

$45.49

2

LH Brake Lever

V53178MAA020BKLL

$88.99

3

RH LEVER ASSY - Call your local BRP dealership

V53179MAA020BKLL

$169.99

3-1

RH LEVER GASKET - Call your local BRP dealership

V53182MAA000

Unavailable

3-2

LEVER BODY COVER - Call your local BRP dealership

V53183MAA000

Unavailable

3-3

BOLT - Call your local BRP dealership

V9350004016

Unavailable

4

Multi-Fonction Switch

V35160DGF04HLL

$87.99

5

LH Upper Handle Bar Clamp

V53170MAA020BKLL

$19.99

6

RH Upper Handle Bar Clamp

V53175MAA020BKLL

$19.99

7

Lower Handle Bar Clamp

V45517MAA040BK

$28.99

8

Hexagonal Bolt M6 X 25

V9100006025LL

$3.29

9

Nylon Nut M10

V9035010000010LL

$2.30

10

Choke Cable

V43316DGF070

$25.99

11

Throttle Cable

V17910DGE050

$35.99

12

Handle Grip

V53140DGF000BK

$20.49

13

Round Head Screw

V930000601201LL

$2.19

14

Support

V50223DGF030

$18.49

15

Throttle Cable

V17911DGE070

$34.99

16

LOWER COVER - Call your local BRP dealership

V80120DGE020LL

Unavailable

17

Throttle Cable Plate

V50336DGE040

$13.99

18

UPPER COVER - Call your local BRP dealership

V80121DGE020LL

Unavailable

19

Spring

V54292DGE020

$6.09

20

Collar

V50337DGE000

$8.49

21

Round Head Bolt

V9300005012

$6.35

22

Tapping Screw

V9309303508

$2.19

23

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

24

Rubber Cap

V80122DGE000

$6.09
