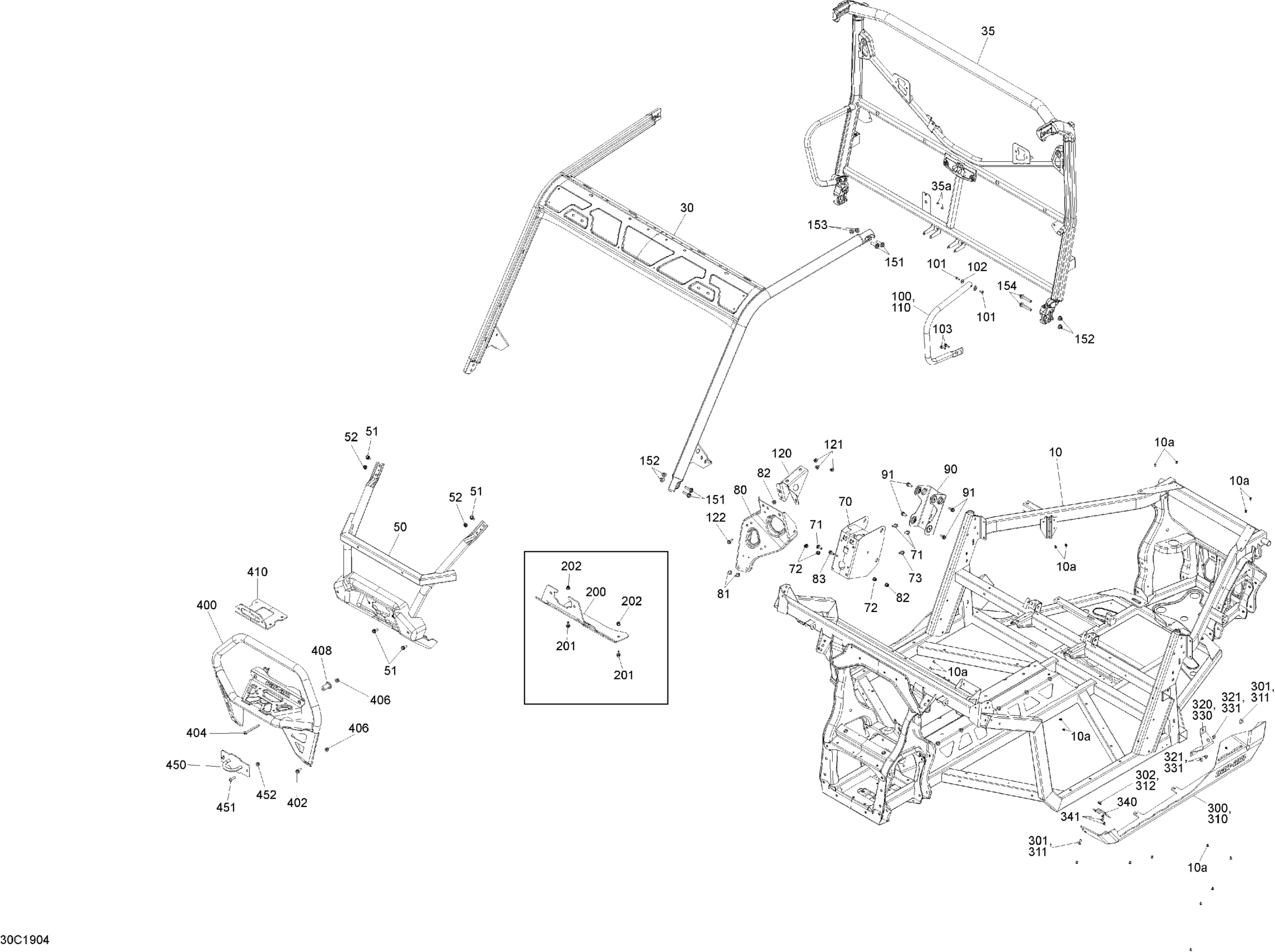

Can-Am Defender HD5 - 2019 Frame - North America Diagram

Frame Kit

715005594

$2,589.99

Pop Rivet 3/16"

390402200

$0.26

Deep Black, Front Cage Service Kit

715008354

$649.99

Black, Rear Cage Kit

715003569

$649.99

Pop Rivet 3/16"

390402200

$0.26

XT Front Bumper | Incl 40a>40d

715004407

$224.58

Cap

705202455

$4.62

Deep Black, Front Bumper

705207588

$519.97

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Elastic Nut M8

233281414

$1.14

Plate

705206316

$52.28

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

DPS Support

705206185

$86.89

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 20

207682044

$0.92

Steering Column Support | Includes 90 to 90d

705209190

$34.58

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Deep Black, LH Protector Tube

705204594

$46.12

Sunburst Yellow, LH Side Protector | With Sunburst Yellow Cab

705206478

$46.12

Torx Truss M6X14

250000789

$4.41

Offset Washer

705202223

$4.98

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Deep Black, RH Protector Tube

705204592

$46.12

Sunburst Yellow, RH Side Protector | With Sunburst Yellow Cab

705206477

$42.28

Shifting Module Support

705205171

$28.43

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 20

207682044

$0.92

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M10 X 35

250000855

$1.46

Hex. Flange Elastic Nut M10

233201436

$1.74

Flange Elastic Nut M10

233201466

$2.63

Hex. Flange Screw M10 X 6

207606046

$3.38

Hex. Flange Screw M10 X 35

250000855

$1.46

Hex. Flange Elastic Nut M10

233201436

$1.74

Flange Elastic Nut M10

233201466

$2.63

Hex. Flange Screw M10 X 6

207606046

$3.38
