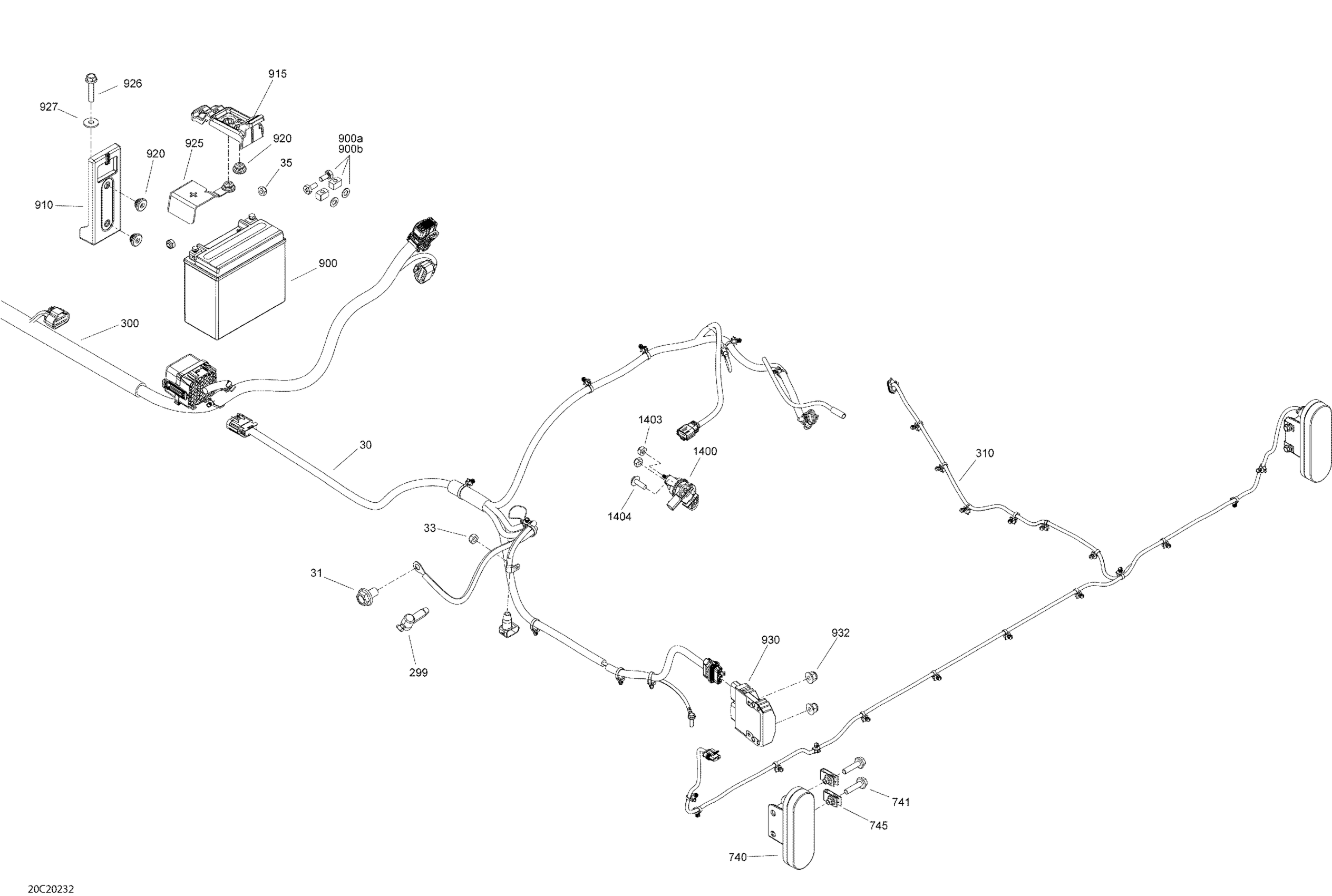

Can-Am Defender HD5 - 2020 Electric - System - Rear Section Diagram

#

Description
Price

30

Voltage Regulator Wiring Harness

710006679

$169.99

31

Hex. Flange Screw M10 X 16, Scotch Grip

207501644

$2.11

33

Elastic Stop Nut M6

232561414

$0.55

35

Hex. Flange Screw M6 X 20

207662054

$1.01

299

Cap Battery Cable

710007033

$6.24

300

Main Wiring Harness | Includes 300 to 300c

710006376

$929.99

310

Taillight Wiring Harness

710006499

$99.99

740

Tail Light

710004497

$111.49

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

745

Panel Nut M6 X 1.0

250100198

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

900b

Battery Bolt Kit

515176081

$6.99

910

Fixation Plate

710004788

$11.49

915

Fixation Plate

710004789

$9.29

920

Stopper Rubber

705014429

$5.95

925

Battery Cable Cap

710006471

$2.59

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

927

Flat Washer 6 mm

234062410

$0.77

930

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1400

Starter Relay

278003012

$42.49

1403

Elastic Stop Nut M6, Brass

232561200

$4.23

1404

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
