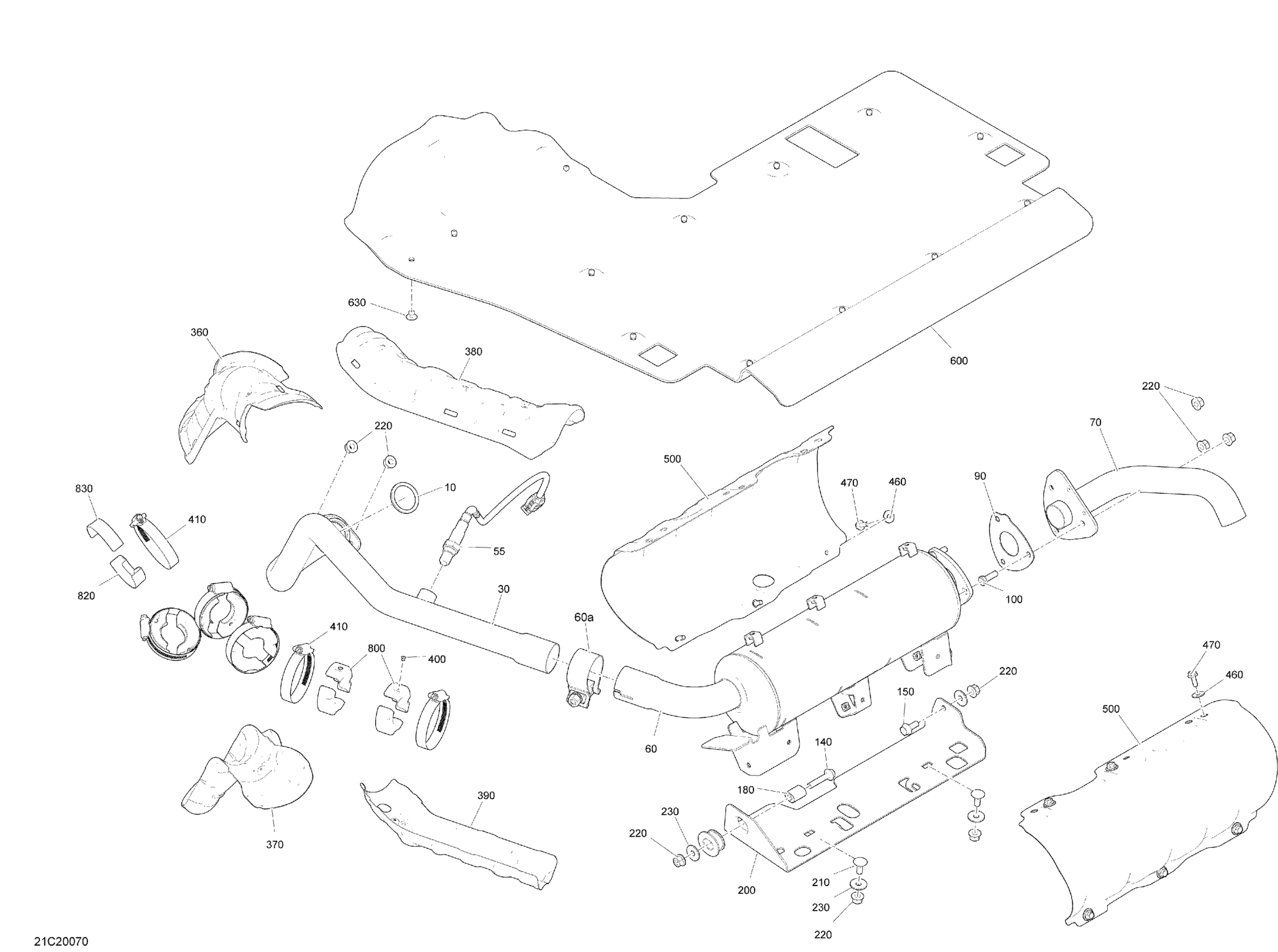

Can-Am Defender HD5 - 2020 Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$10.52

30

Exhaust Pipe

707601959

$166.12

55

Oxygen Sensor

707600872

$115.67

60

Exhaust Muffler | Includes 60 to 60a

707603427

$830.74

60a

Exhaust Pipe Clamp

293650228

$11.98

70

Tail Pipe

707602209

$92.28

90

Gasket

707602205

$10.98

100

Hex. Screw Cap DIN.933

207182546

$0.83

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

180

Spacer

707601969

$15.35

190

Rubber Mount

707602102

$7.60

200

Muffler Support

707601588

$32.28

210

Carriage Bolt, M8 X 20

207782044

$1.56

220

Hex. Flange Nut M8

233081416

$1.63

230

Flat Washer 8 mm

234082410

$1.11

360

Heat Shield, Front

707601923

$27.66

370

Front Heat Shield

707602403

$27.66

380

Heat Shield

707601955

$32.28

390

Heat Shield

707601956

$32.28

400

Pop Rivet 1/8 X

293150071

$0.78

410

Tridon Gear Clamp

293650258

$13.83

460

Flat Washer 6 mm

234062410

$0.64

470

Hex Flange Screw M6 X 16

250000906

$4.39

500

Protector

707602057

$23.05

600

Upper Heatshield

707602927

$272.28

630

Pop Rivet 3/16”

293150108

$1.23

800

Exhaust Pipe Spacer

707602026

$3.98

820

Exhaust Pipe Spacer

707601948

$6.75

830

Exhaust Pipe Spacer

707602016

$6.75
